Description

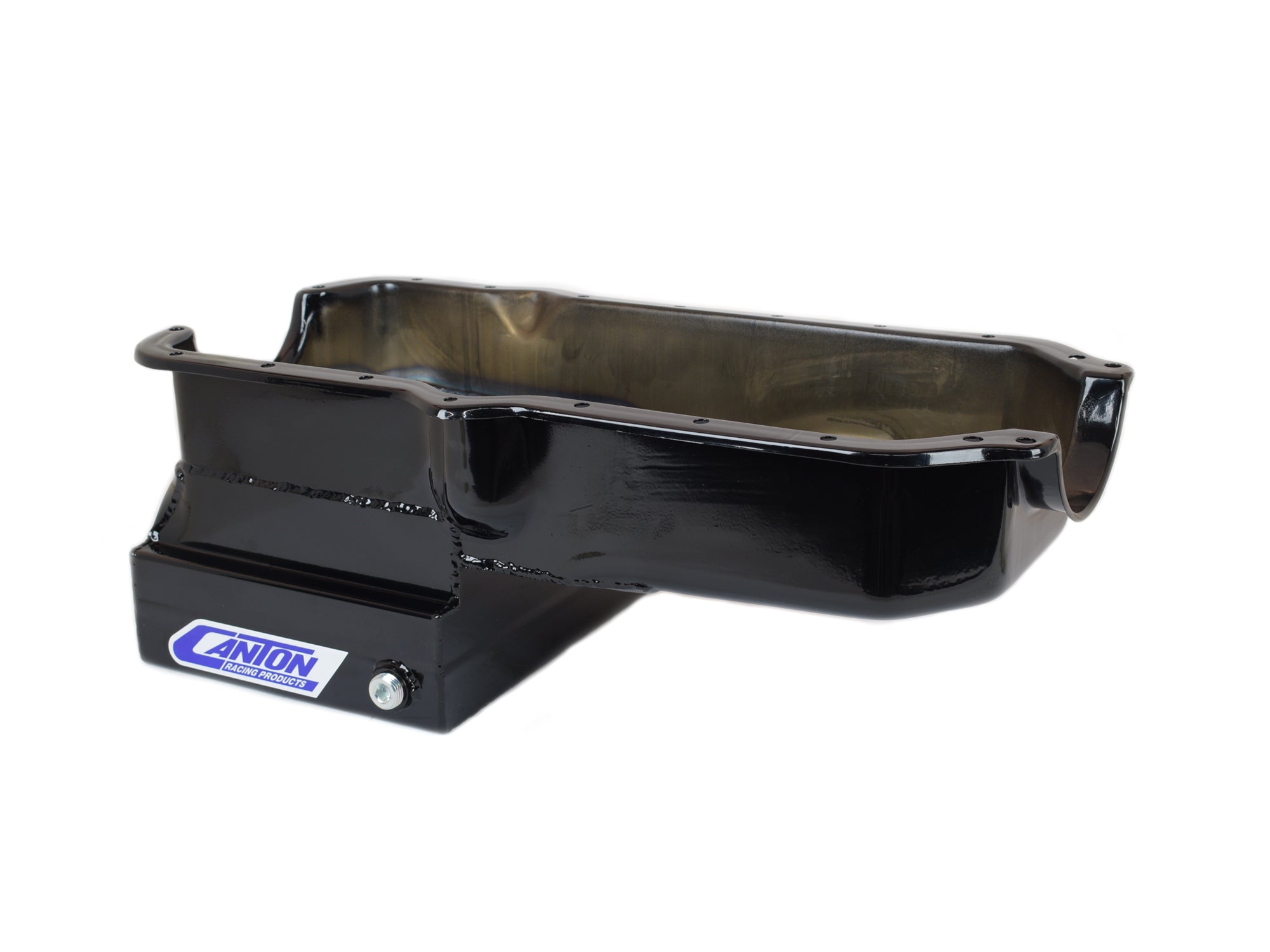

This black powder coat ?T? Sump oil pan is for AMC V8s in production chassis. It has an 8" deep, 10-1/2" wide, and 9" long sump that holds 8 quarts, 9 quarts with filter. This pan requires our 15-555 pickup kit for internal oil applications or our 20-720 pickup for external oil line applications. Installation of external pickup kit is available. You must use stock dipstick.
- 6 qt System Capacity
- Designed for AMC V8's in production chassis.
- For performance street, drag, or road race applications.
- 14 ga. steel construction.

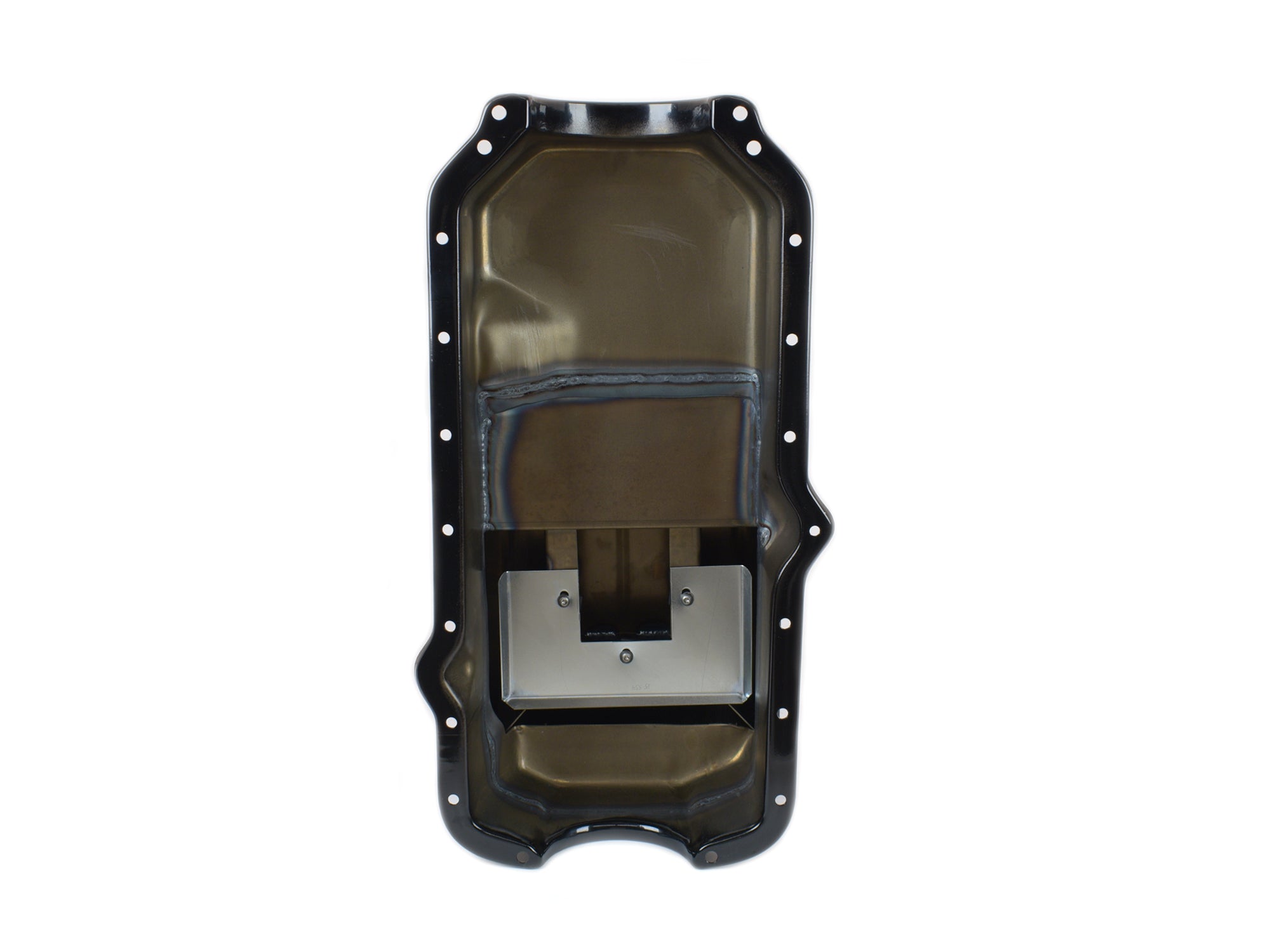

- Triple Trap Door Baffles
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Magnetic Drain Plug
- Black powder coat
Attributes:
- Brand Name: Canton
- GTIN: 00887753712677
- Baffled: Yes
- Capacity: 9 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Feature 1: 9 qt System Capacity
- Feature 2: Designed for AMC V8's in production chassis.
- Feature 3: For performance street, drag, or road race applications
- Feature 4: 14 ga. steel construction
- Feature 5: Triple Trap Door Baffles
- Feature 6: Removable Windage/Anti-Slosh Baffle
- Feature 7: 1/2" NPT Temperature Bung
- Feature 8: Magnetic Drain Plug
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 14 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-555 - AMC V8 PICKUP R.R. FOR 15-554 OIL PAN
- Recommended Accessory 2: 20-720 - UNIV EXTERNAL PICKUP KIT, -12 AN STEEL
- Recommended Accessory 3: 22-300 - SBC/OLDSMOBILE/AMC OIL PAN STUD KIT
- Stoke: 4.0 inches
- Sump Depth: 8 inches
- Sump Width: 10.5 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Discontinued
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 17 POUNDS
