Description

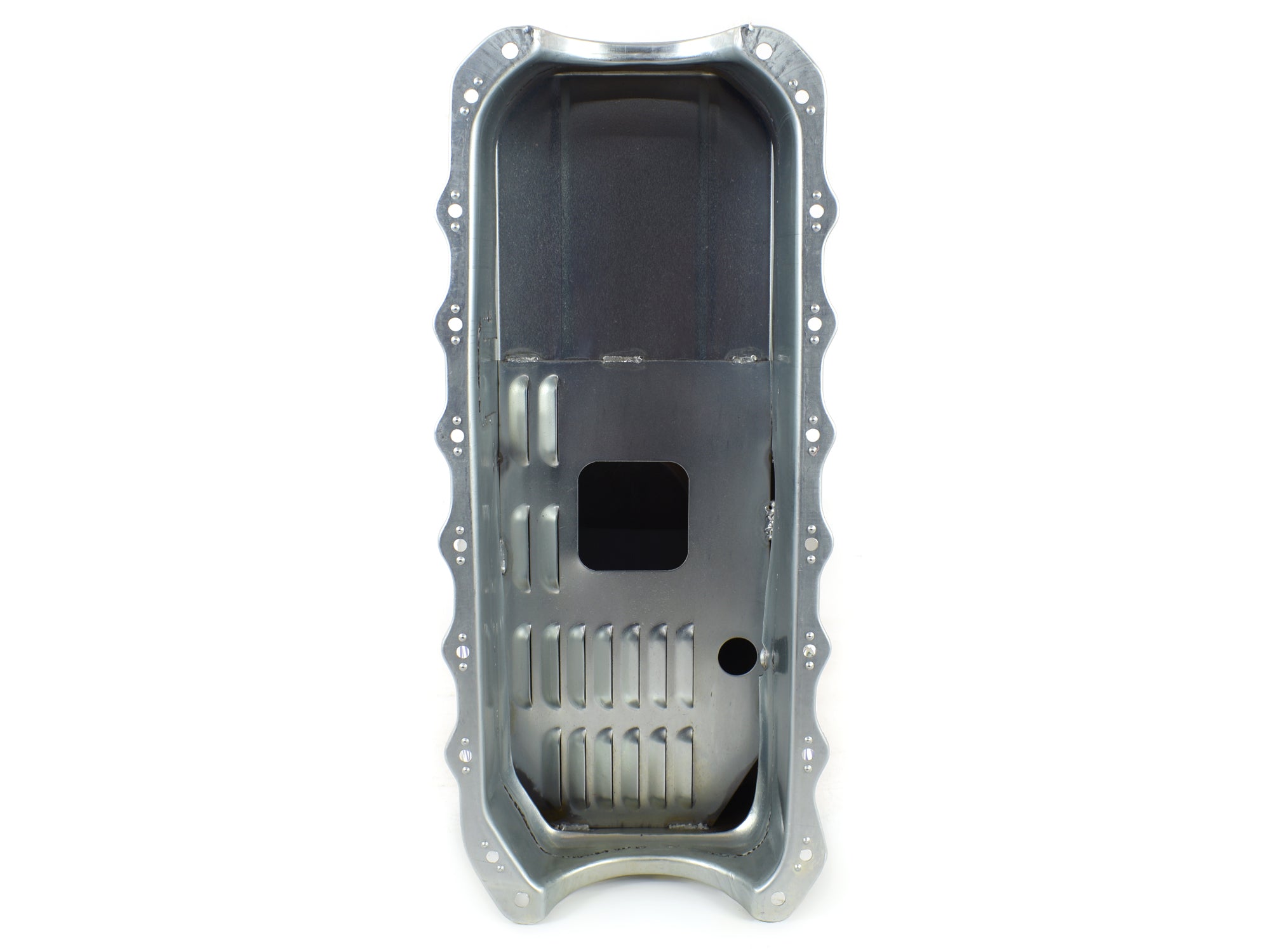

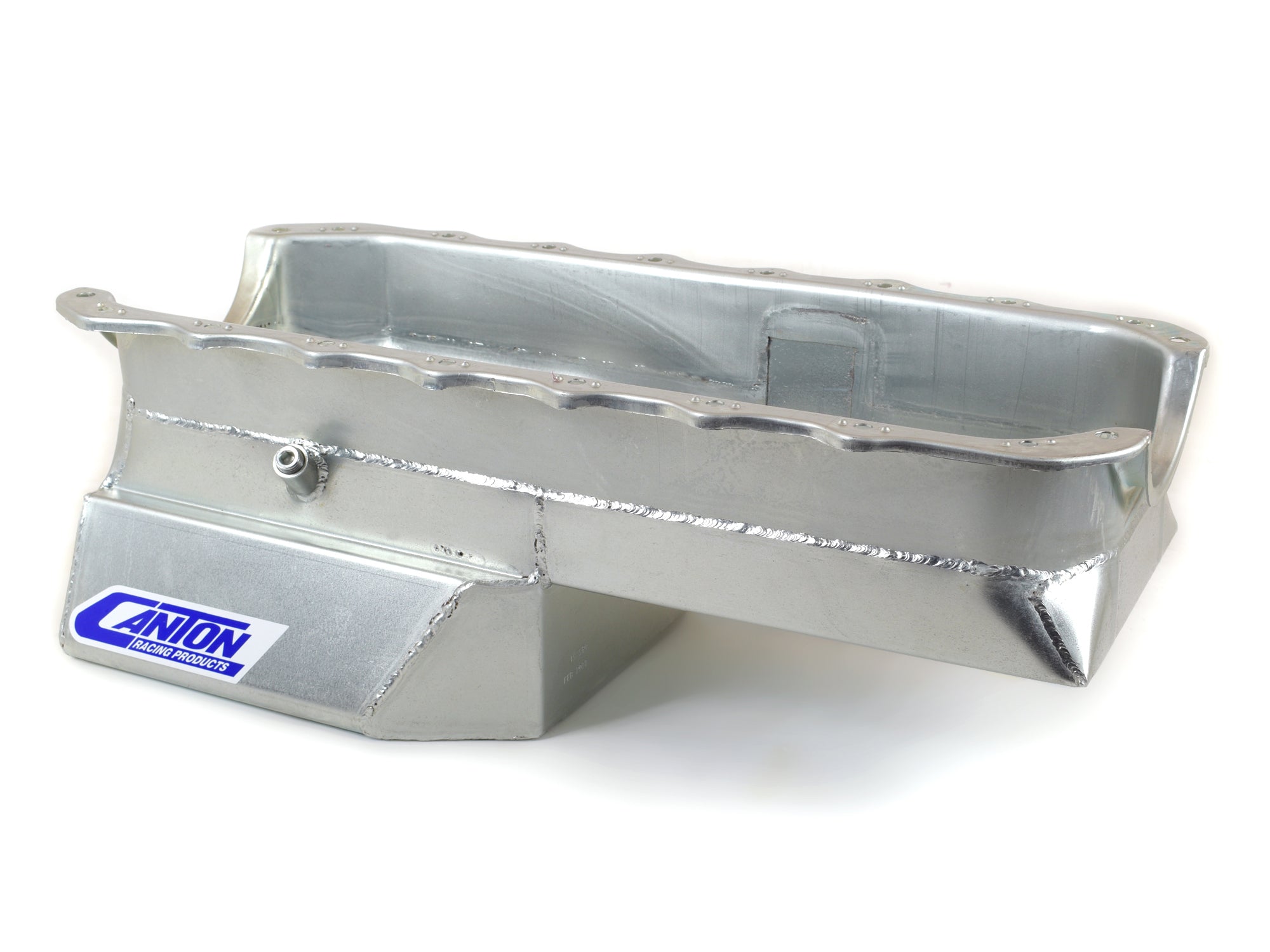

The Canton 15-580 front sump street oil pain is for the Australian market Holden V8. It has a larger oil capacity than stock but retains the same depth through the use of a T sump. Another important feature is it's louvered slosh baffle that offers better control over oil pan windage freeing up horsepower and keeping the oil where it belongs around the pickup. The gold iridite plated finish makes for good looks and a long lasting rust free service life. This oil pan requires our 15-591 oil pickup.
- 7 qt System Capacity
- Louvered Anti slosh baffle/windage tray
- Provision for 1/4' NPT Dipstick (Passenger Side)
- Magnetic Drain Plug
- Room for main stud girdle
Attributes:
- Brand Name: Canton
- GTIN: 00887753712691
- Baffled: Yes
- Capacity: 7 Quart / 6.5 Liter System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Louvered Anti slosh baffle/windage tray
- Feature 3: Provision for 1/4' NPT Dipstick (Passenger Side)
- Feature 4: Magnetic Drain Plug
- Feature 5: Room for main stud girdle
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-581 - Required Oil Pickup For the 15-580 Pan
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Discontinued
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 13.5 x 9.5 inches
- Weight: 13.6 POUNDS
PDF:
