Description

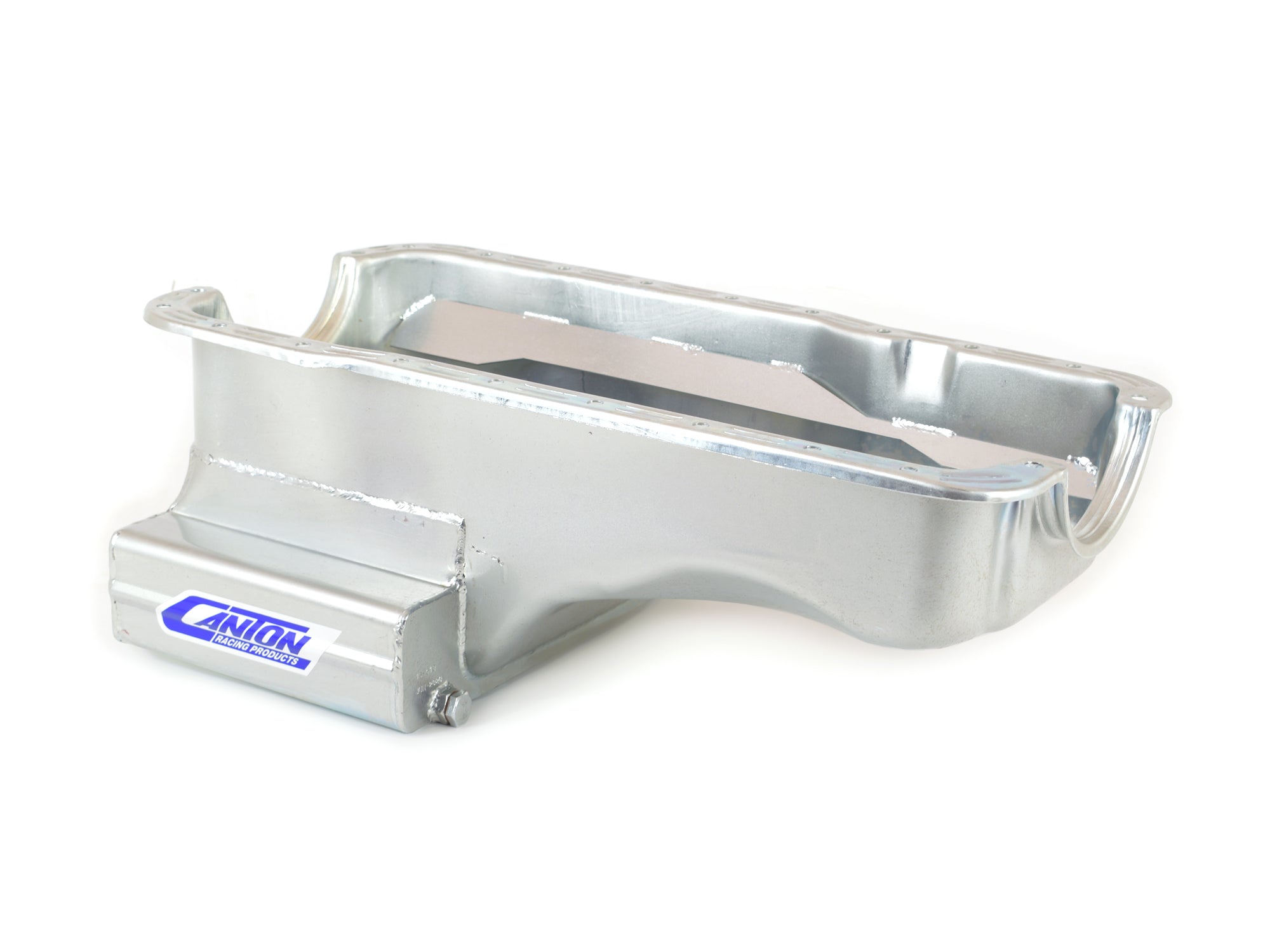

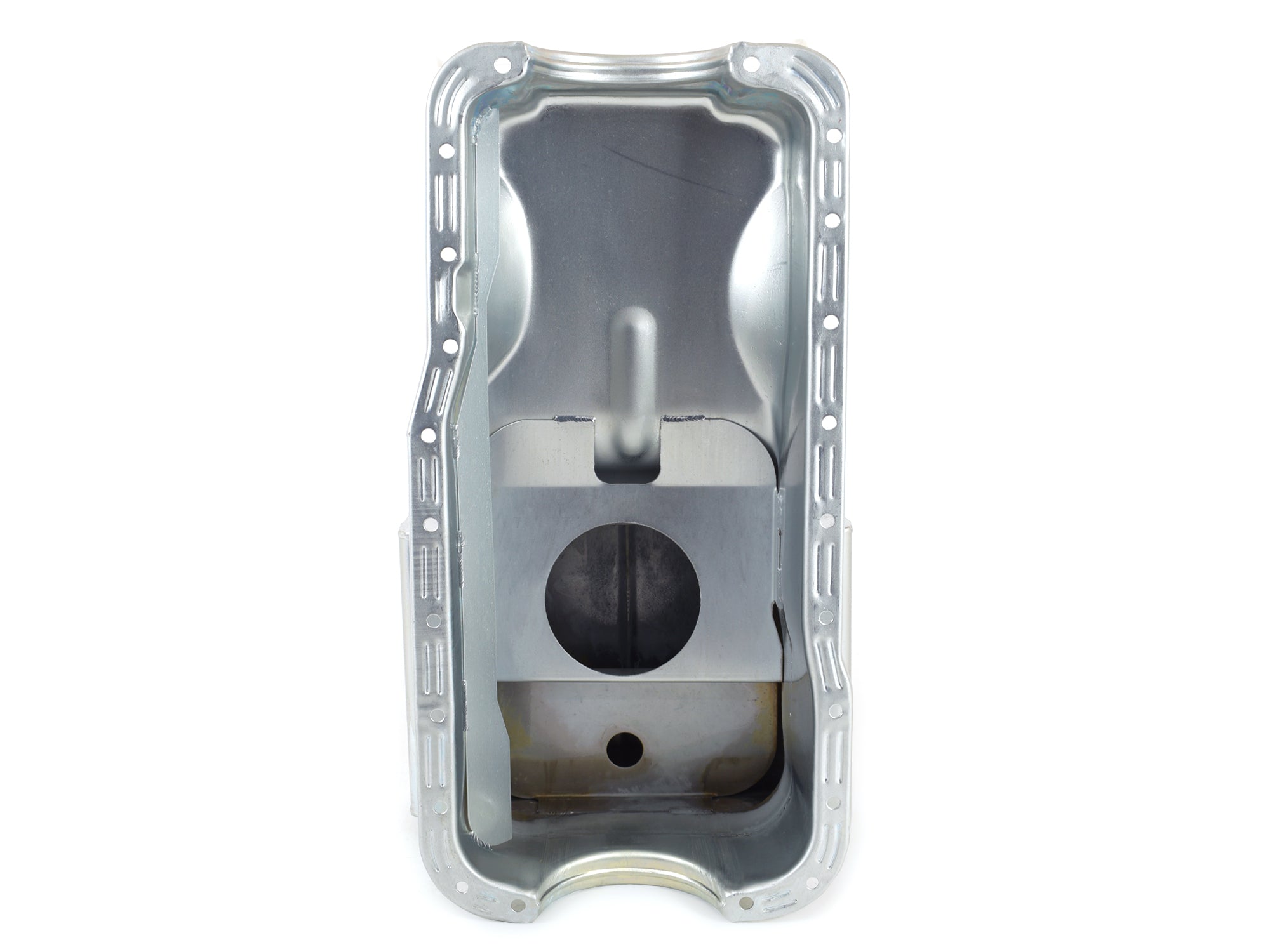

This front sump Ford 289-302 road race pan fits in most front sump production chasssis except Mustang II, and Maverick's and Comets which may require modification. It has an 8" deep by 13-1/2" wide sump, with a 7 qt. system capacity. This pan requires our 15-611 pickup. Will work with stock & aftermarket starters.
- 7 qt System Capacity
- Crank Scraper
- Slosh Baffle
- Magnetic Drain Plug
- Provision For Pan Mounted Dipstick
- Works with both stock & aftermarket starters
Attributes:
- Brand Name: Canton
- GTIN: 00887753712783
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Crank Scraper
- Feature 3: Slosh Baffle
- Feature 4: Magnetic Drain Plug
- Feature 5: Provision For Pan Mounted Dipstick
- Feature 6: Works with both stock & aftermarket starters
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-611 - Pickup with 3/4" Dia. Inlet
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 88-600 ? Small Block Ford 289-302 Four Piece Oil Pan Gasket
- Stoke: 3.4 inches
- Sump Depth: 8 inches
- Sump Width: 13.5 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 16 POUNDS
