Description

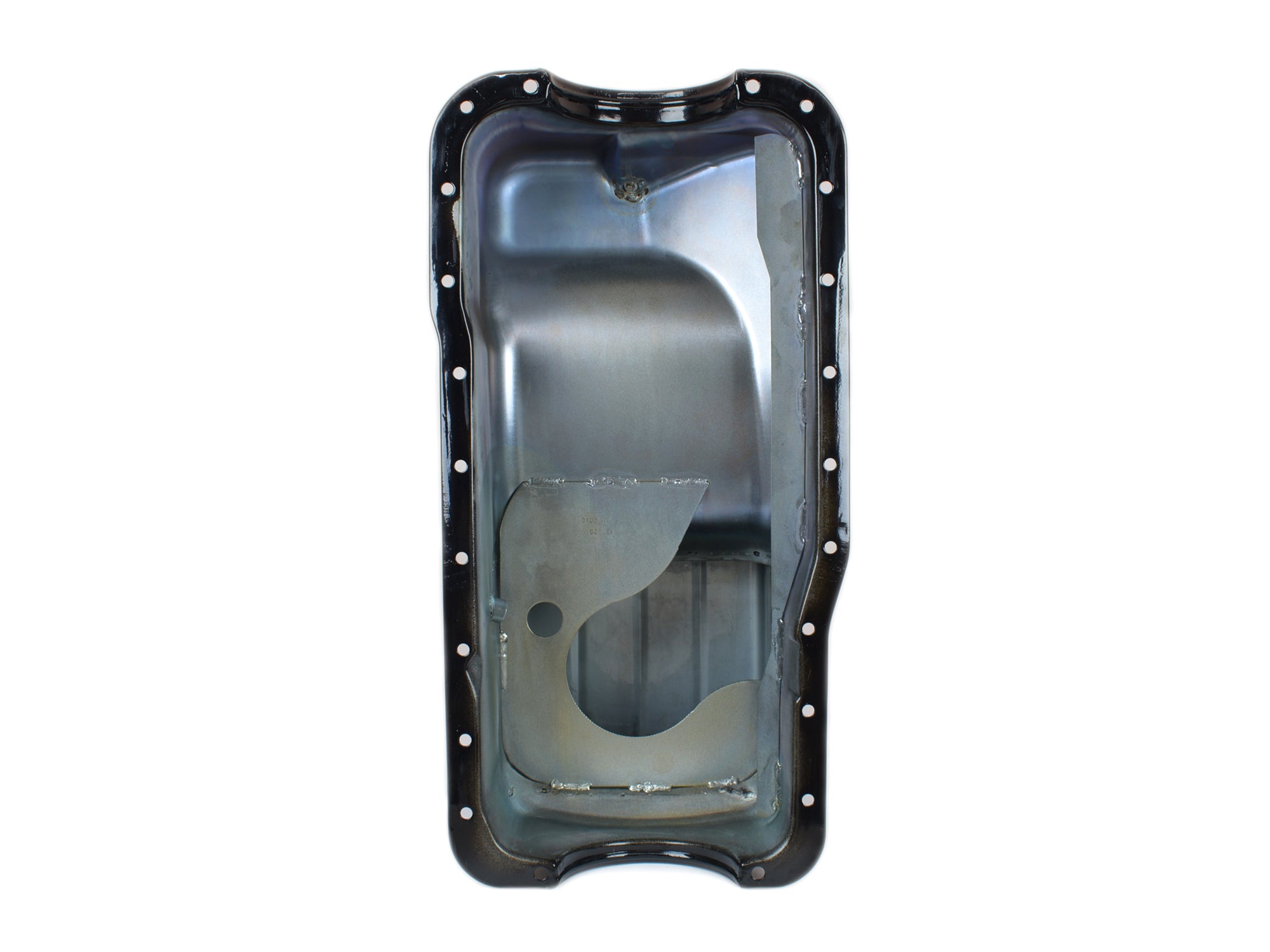

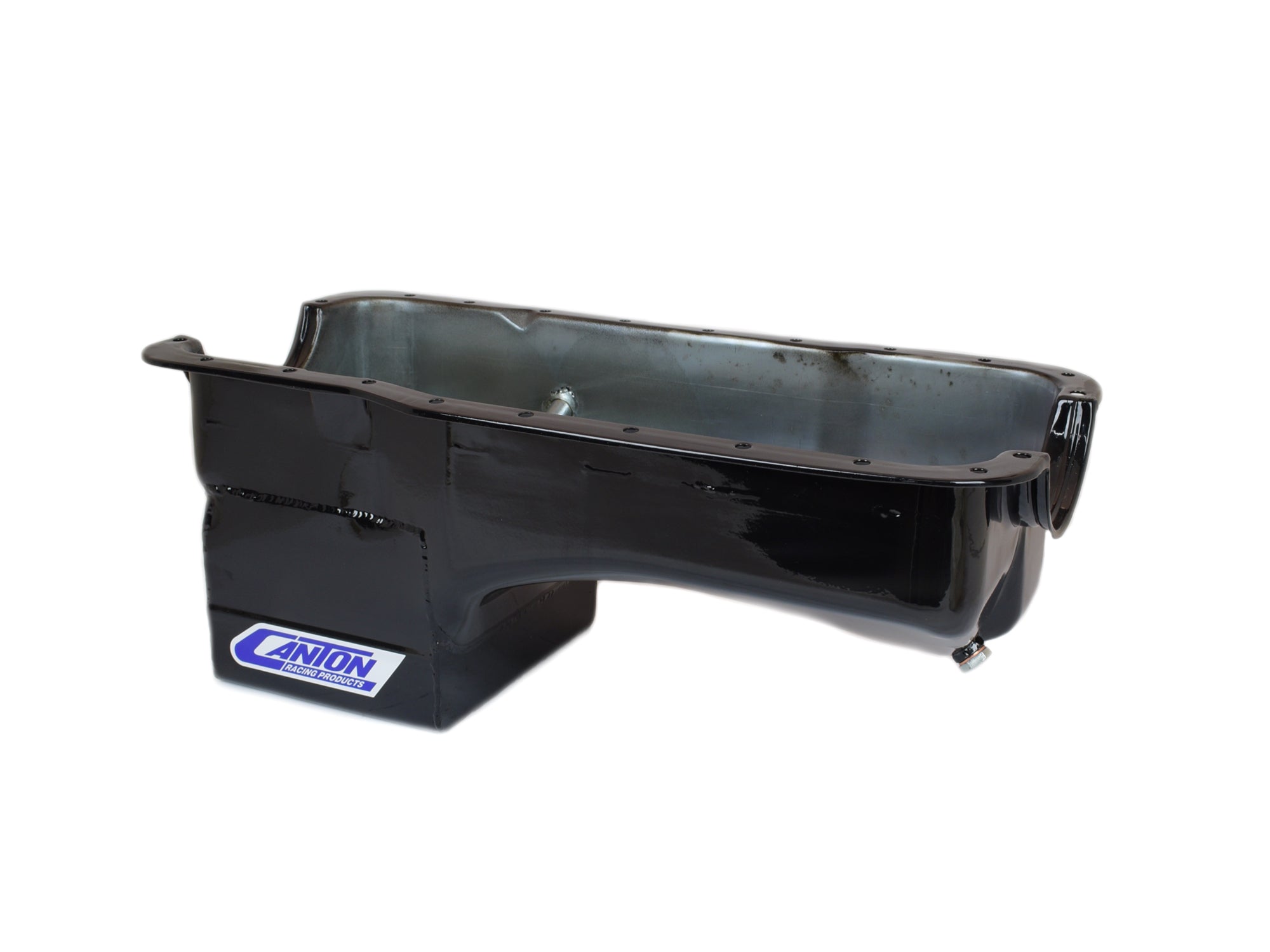

This black powder coated deep sump oil pan is for Ford 289-302 blocks in Fox Body Mustangs. It has a 9" deep by 7" long sump and a 7 quart system capacity. This pan requires one of our pickups.
- 7 qt System Capacity
- Extra Deep Sump For Increased Oil Control & Capacity
- Crank Scraper
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753712820
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Extra Deep Sump For Increased Oil Control & Capacity
- Feature 3: Crank Scraper
- Feature 4: Slosh Baffle
- Feature 5: Provision For Our Pan Mounted Dipstick
- Feature 6: Magnetic Drain Plug
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-621 - Pickup with 3/4" Dia. Inlet
- Recommended Accessory 2: 15-623 - Pickup with 7/8" Dia. Inlet
- Recommended Accessory 3: 20-950 - Pickup Mounting Stud for Ford 302 Based Engines
- Recommended Accessory 4: 20-953 - Pickup Mounting Stud for Ford 302R Based Engines
- Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 7: 88-602 - Small Block Ford 289-302 One Piece Oil Pan Gasket
- Stoke: 3.4 inches
- Sump Depth: 9 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 16 POUNDS
