Description

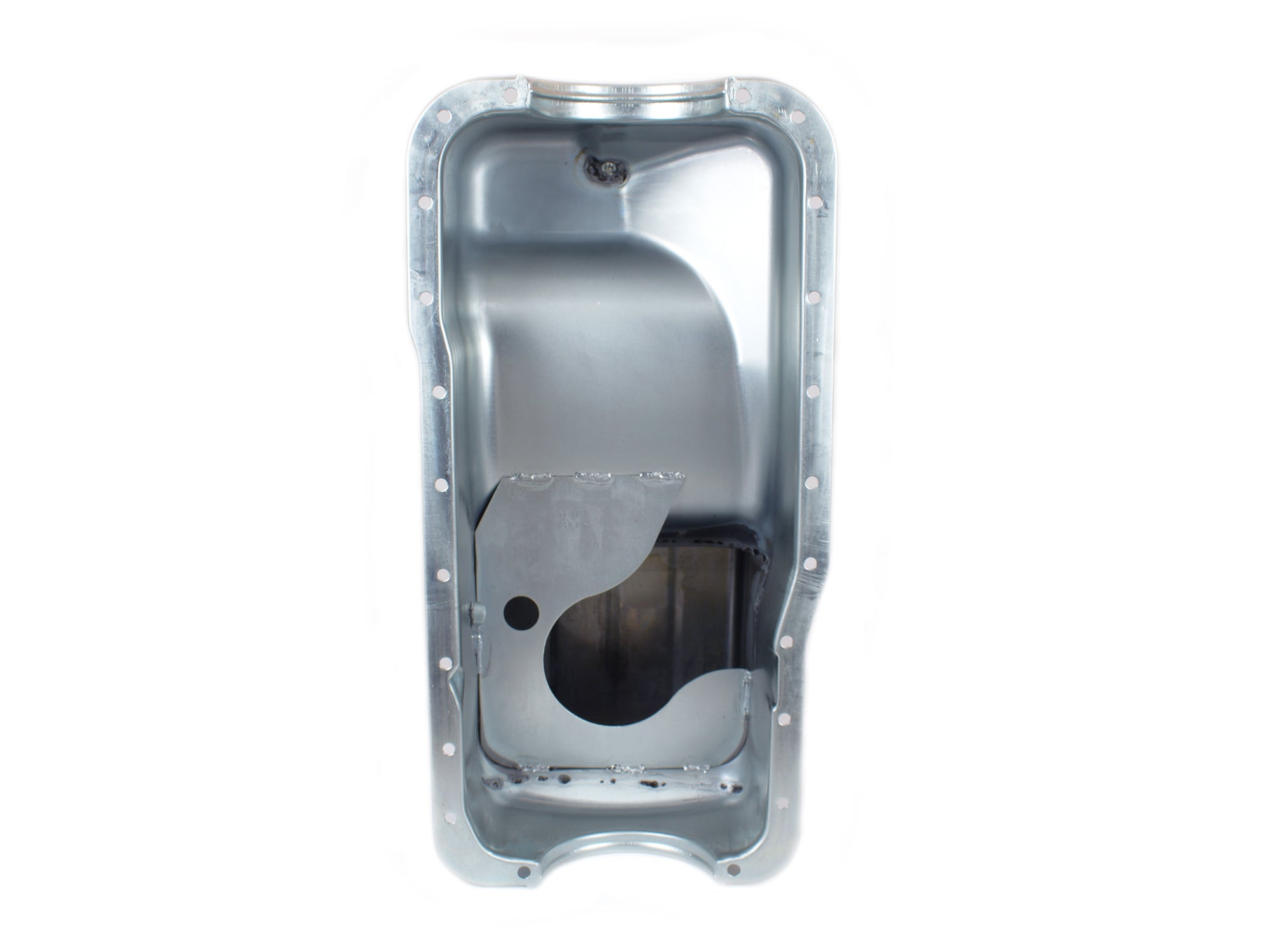

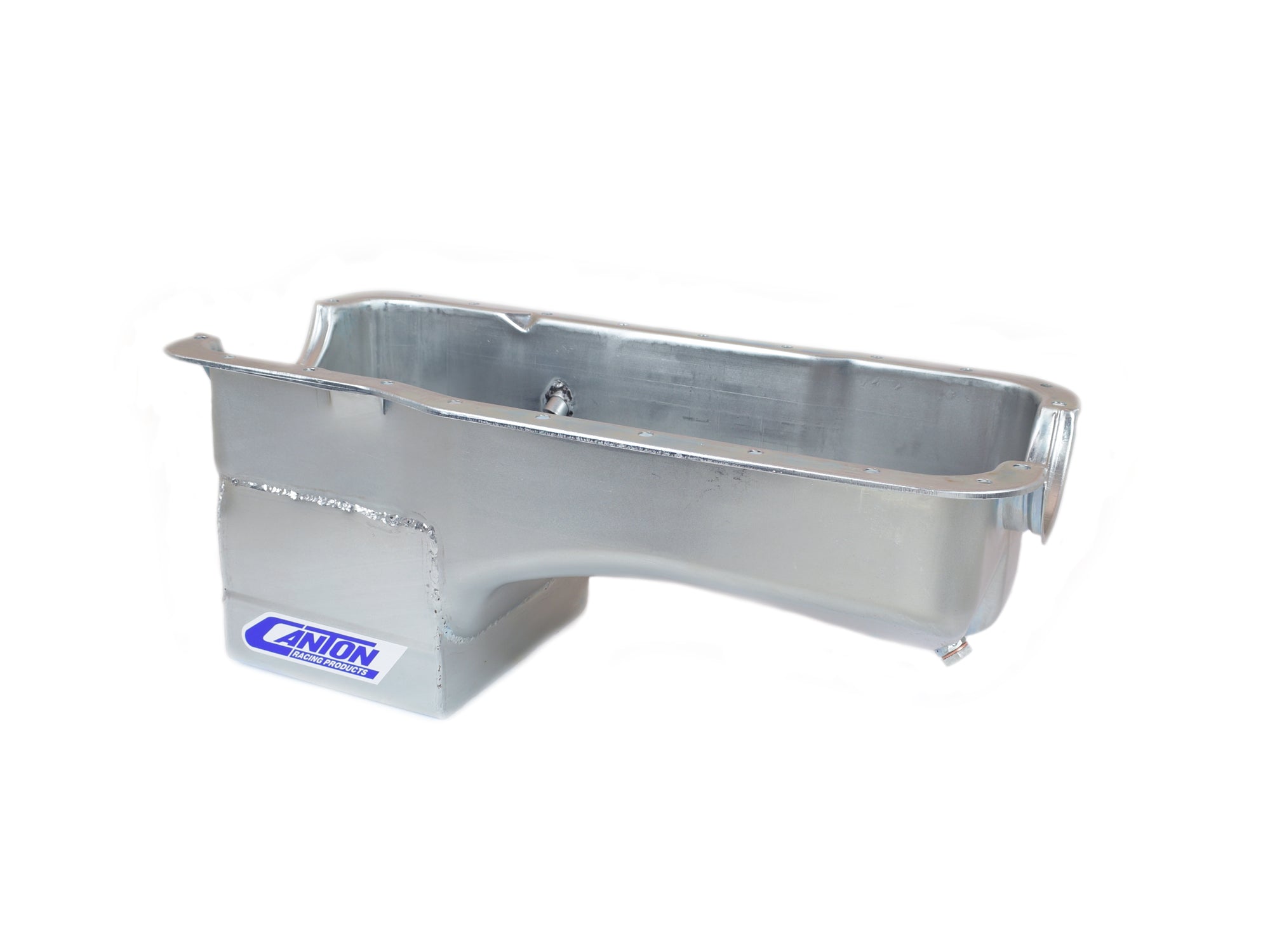

This deep sump oil pan is for 289-302 blocks in Fox Body Mustangs with main supports. It has a 9" deep by 7" long sump and a 7 quart system capacity. The deletion of the crank scraper allows clearance for most main supports. This pan requires one of our pickups.
- 7 qt System Capacity
- Extra Deep Sump For Increased Oil Control & Capacity
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753712837
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Extra Deep Sump For Increased Oil Control & Capacity
- Feature 3: Slosh Baffle
- Feature 4: Provision For Our Pan Mounted Dipstick
- Feature 5: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-625 - Pickup with 3/4" Dia. Inlet
- Recommended Accessory 2: 15-627 - Pickup with 7/8" Dia. Inlet
- Recommended Accessory 3: 21-060 - CANTON 289-302 Main Support
- Recommended Accessory 4: 20-960 - Ford 289-302 Main Support Windage Tray
- Recommended Accessory 5: 20-950 - Pickup Mounting Stud for Ford 302 Based Engines
- Recommended Accessory 6: 20-953 - Pickup Mounting Stud for Ford 302R Based Engines
- Recommended Accessory 7: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 8: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 9: 88-602 - Small Block Ford 289-302 One Piece Oil Pan Gasket
- Stoke: 3.4 inches
- Sump Depth: 9 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Superseded
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 16 POUNDS
