Description

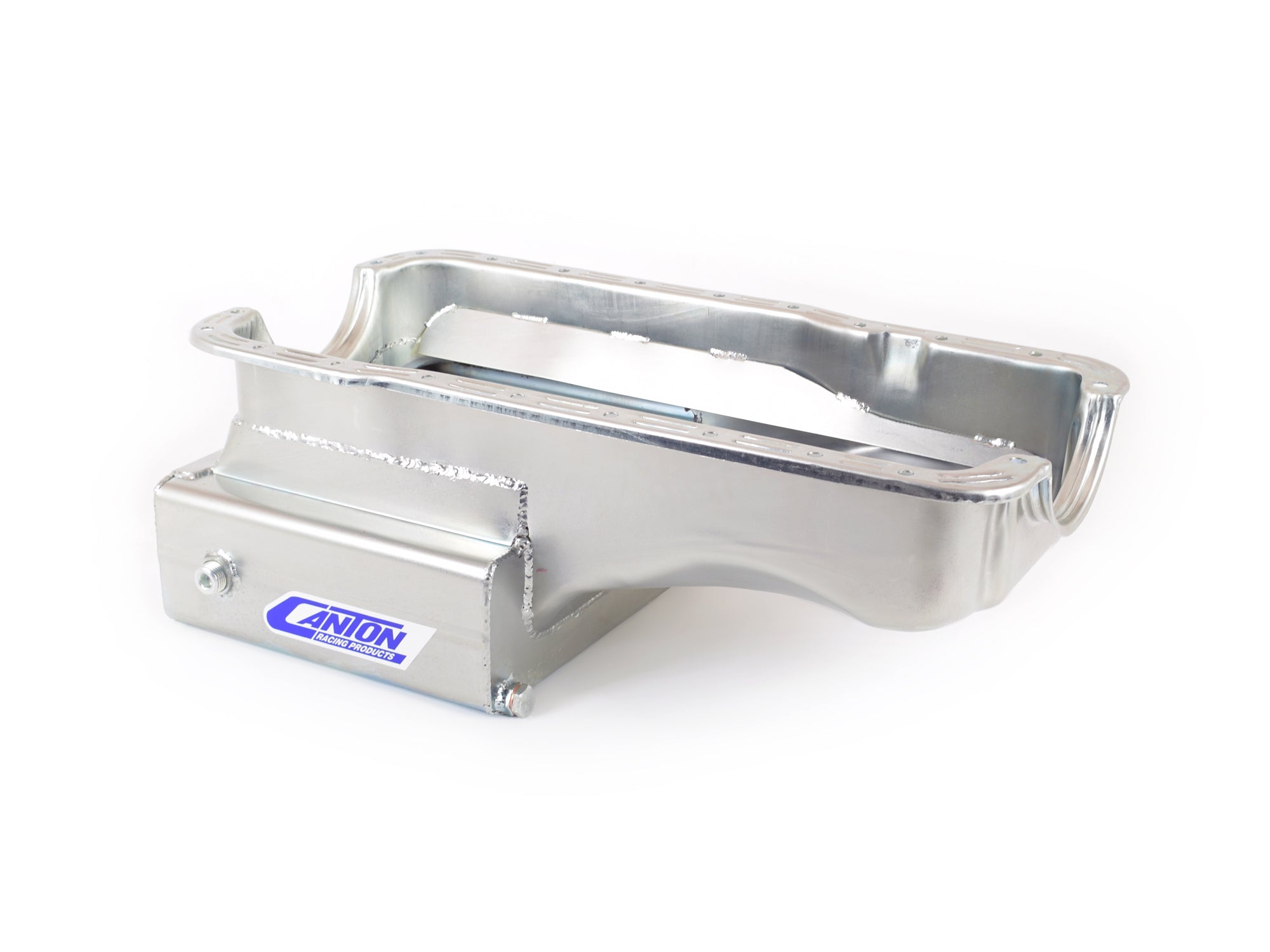

This front sump road race pan is for Ford 289-302. It has a 8 qt. system capacity, 8" deep, 12" wide, 10-1/2" long, 14 ga. sump designed for Cobra kit cars. Will work with stock & aftermarket starters. This pan requires our 15-611 pickup.
- 8 qt System Capacity

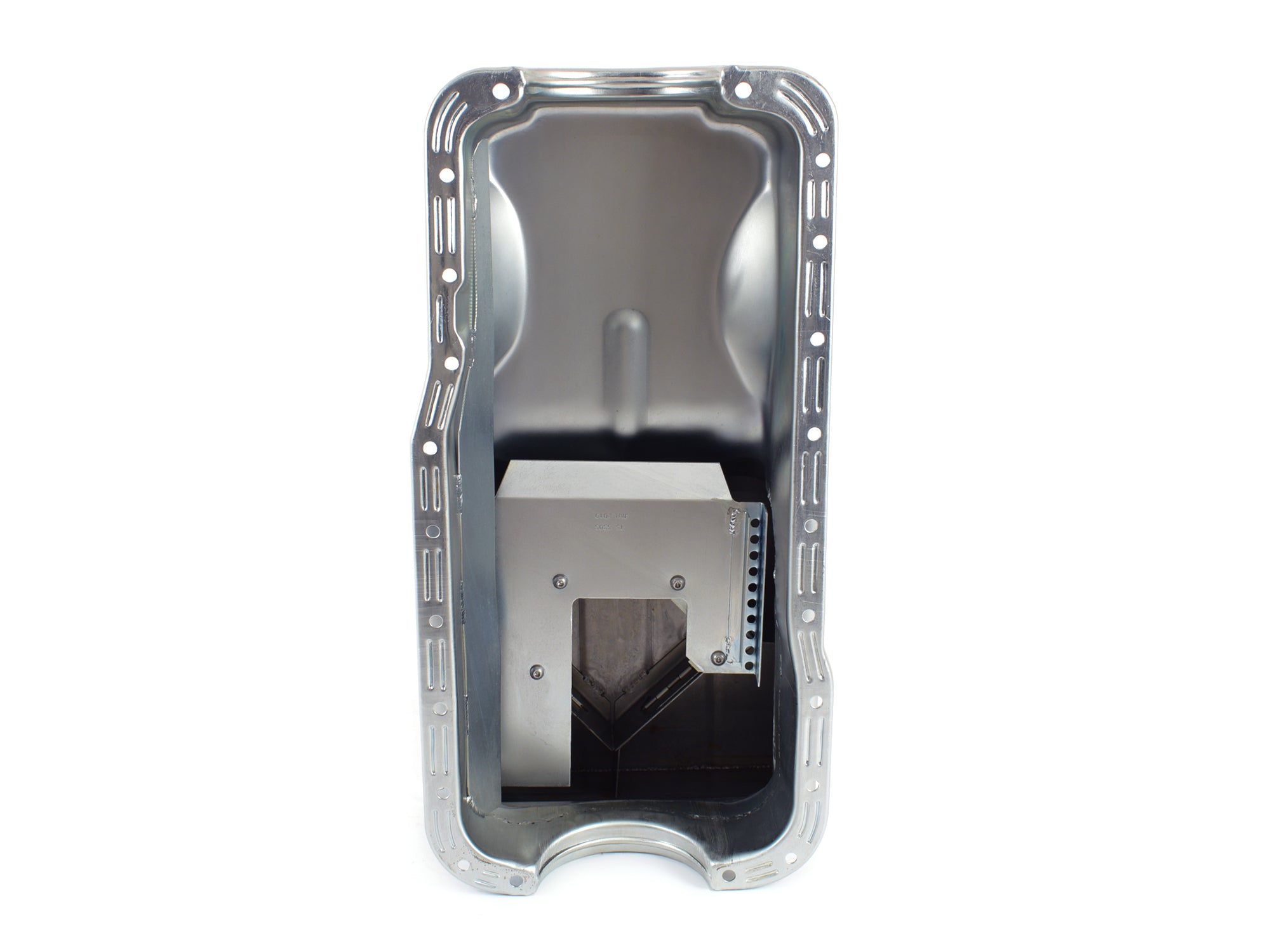

- Diamond Shape Road Race Trap Door Baffle
- Crank Scraper
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753712905
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 8 qt System Capacity
- Feature 2: Diamond Shape Road Race Trap Door Baffle
- Feature 3: Crank Scraper
- Feature 4: Removable Windage/Anti-Slosh Baffle
- Feature 5: 1/2" NPT Temperature Bung
- Feature 6: Provision For Our Pan Mounted Dipstick
- Feature 7: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-611 - Pickup with 3/4" Dia. Inlet
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 88-600 ? Small Block Ford 289-302 Four Piece Oil Pan Gasket
- Stoke: 3.4 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 18 POUNDS
