Description

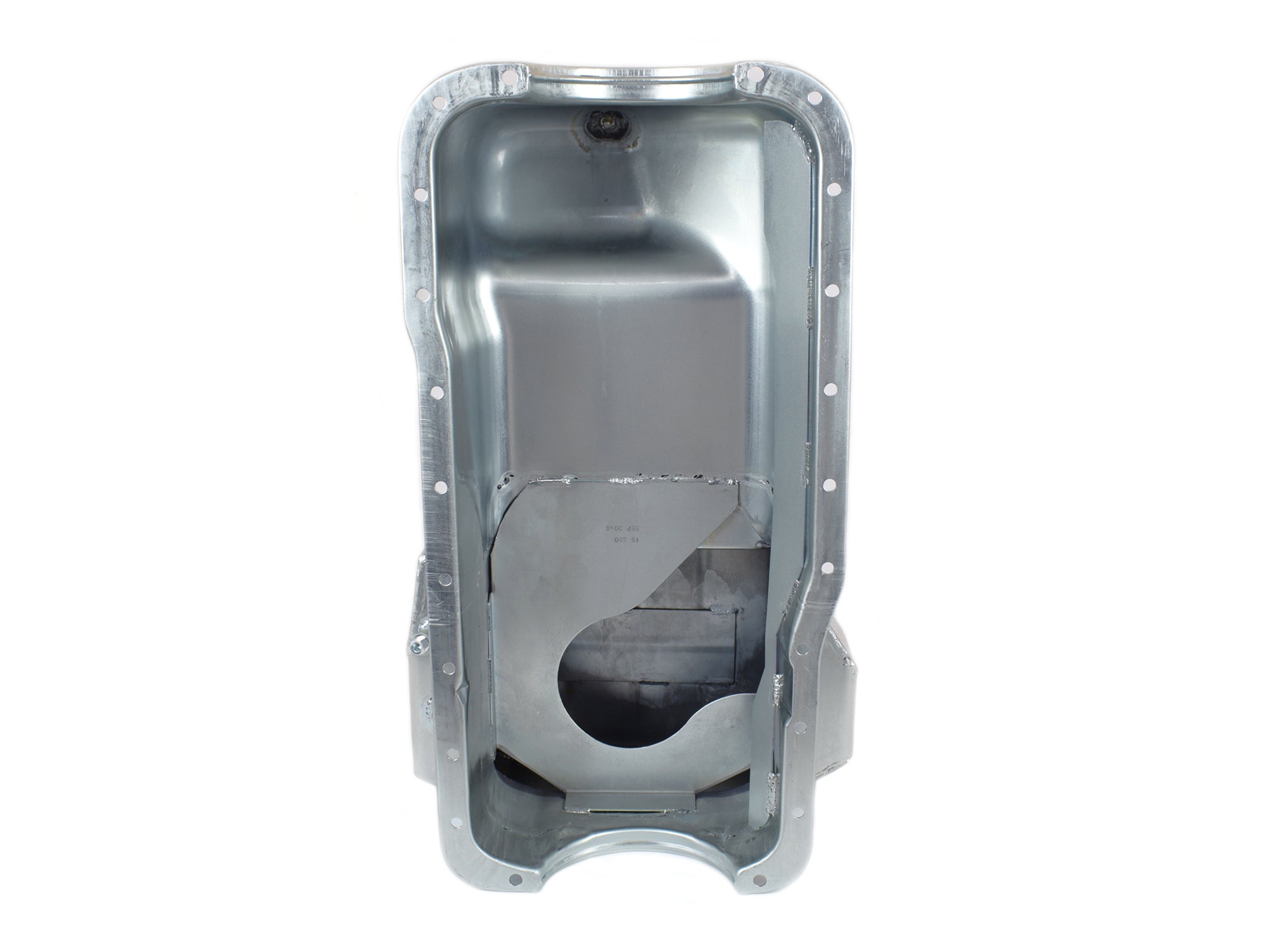

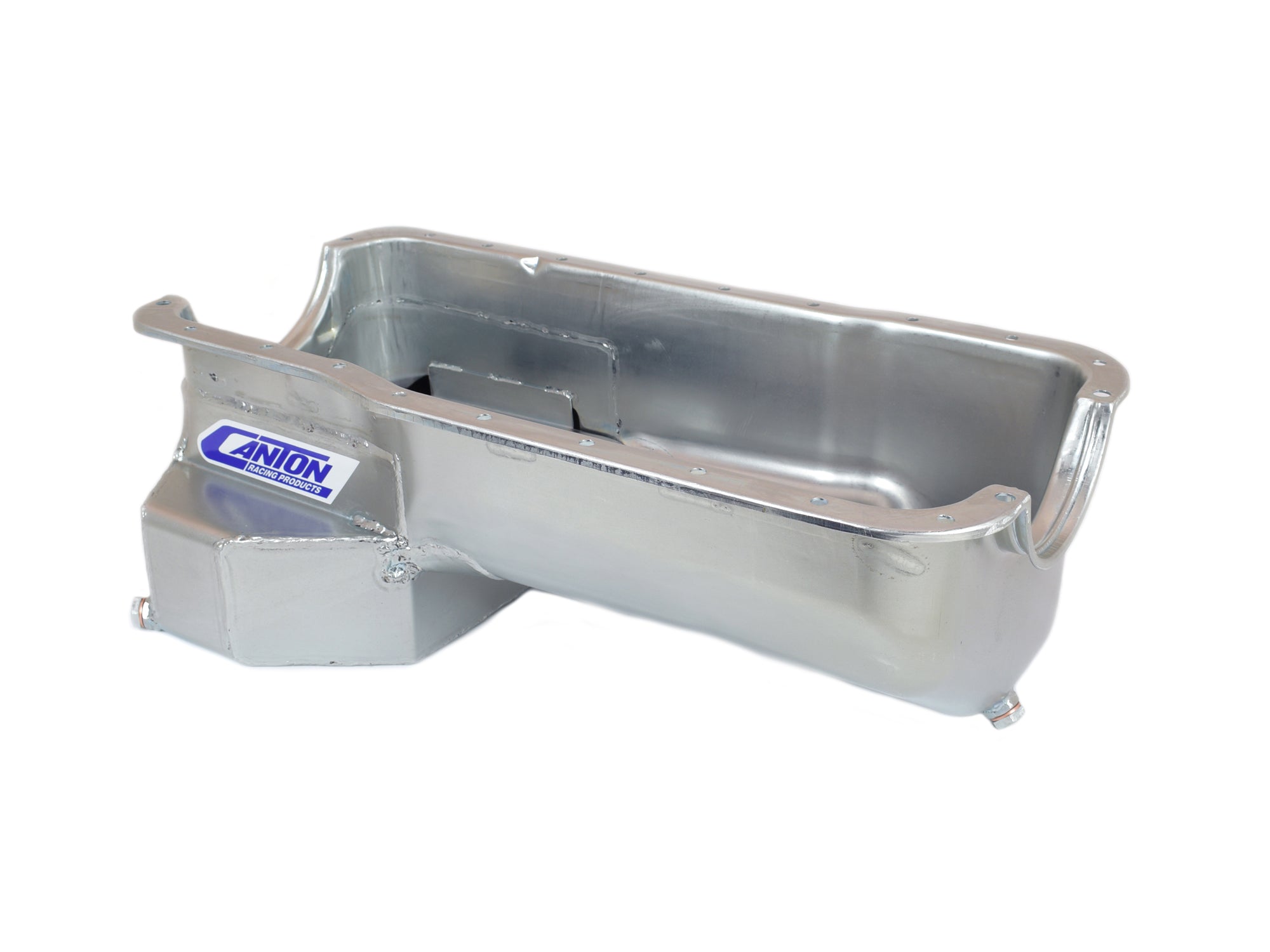

This "T" style rear sump oil pan is for Ford 351 Windsor blocks in Fox Body Mustangs. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump and a 7 quart system capacity. Some long tube headers require modification. This pan requires our 15-691 pickup. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.
- 9 qt System Capacity
- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Crank Scraper
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753713209
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Retains Stock Depth
- Feature 3: Crank Scraper
- Feature 4: Slosh Baffle
- Feature 5: 1/2" NPT Temperature Bung
- Feature 6: Provision For Our Pan Mounted Dipstick
- Feature 7: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-691 - Pickup with 3/4" Dia. Inlet
- Recommended Accessory 2: 20-953 - Pickup Mounting Stud for 351W Based Engines
- Recommended Accessory 3: 20-850 - Universal Steel Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 5: 88-652 ? Small Block Ford 351W One Piece Oil Pan Gasket
- Stoke: 4.0 inches
- Sump Depth: 7.5 inches
- Sump Width: 13.5 inchea
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 17 POUNDS
