Description

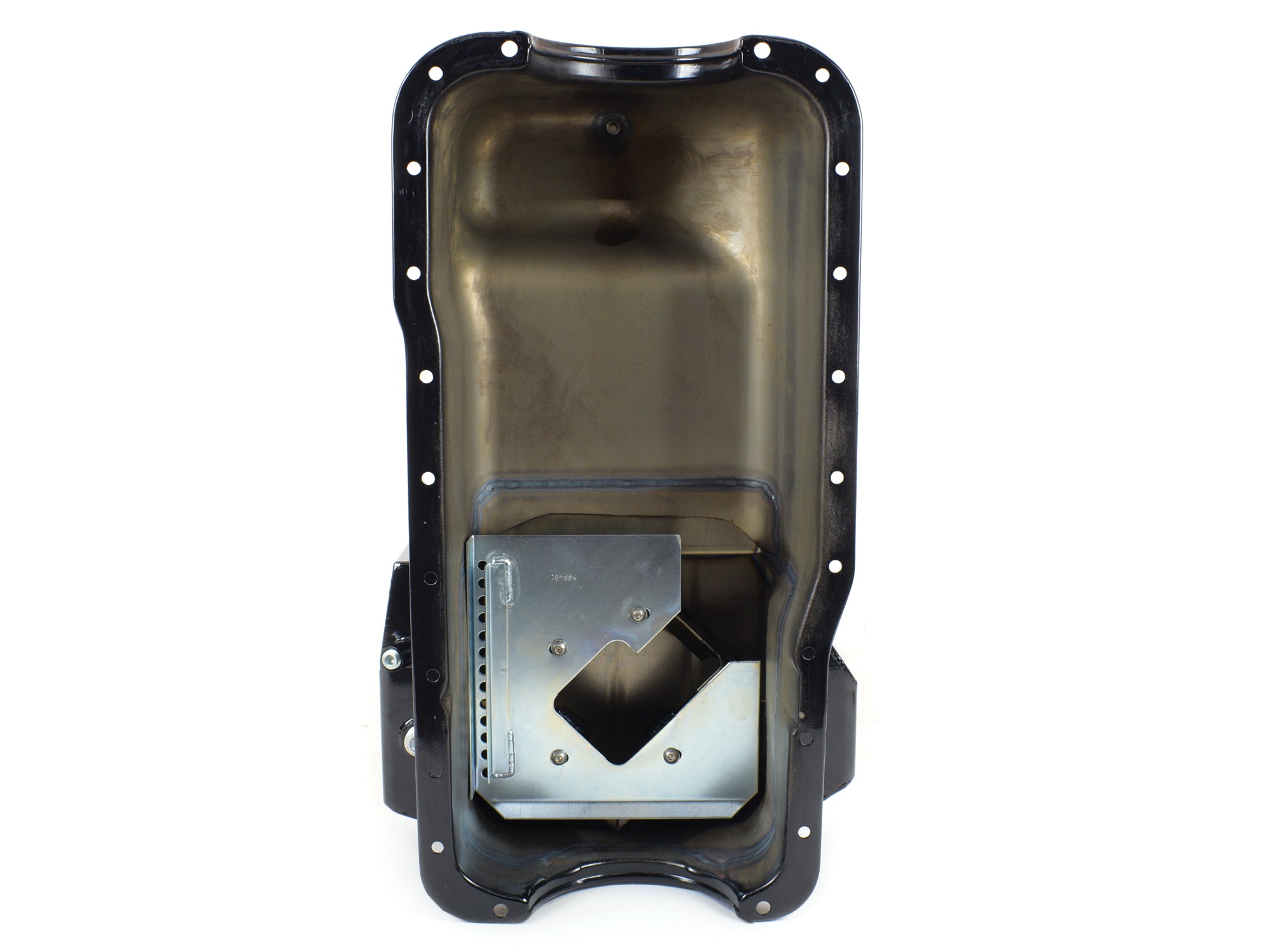

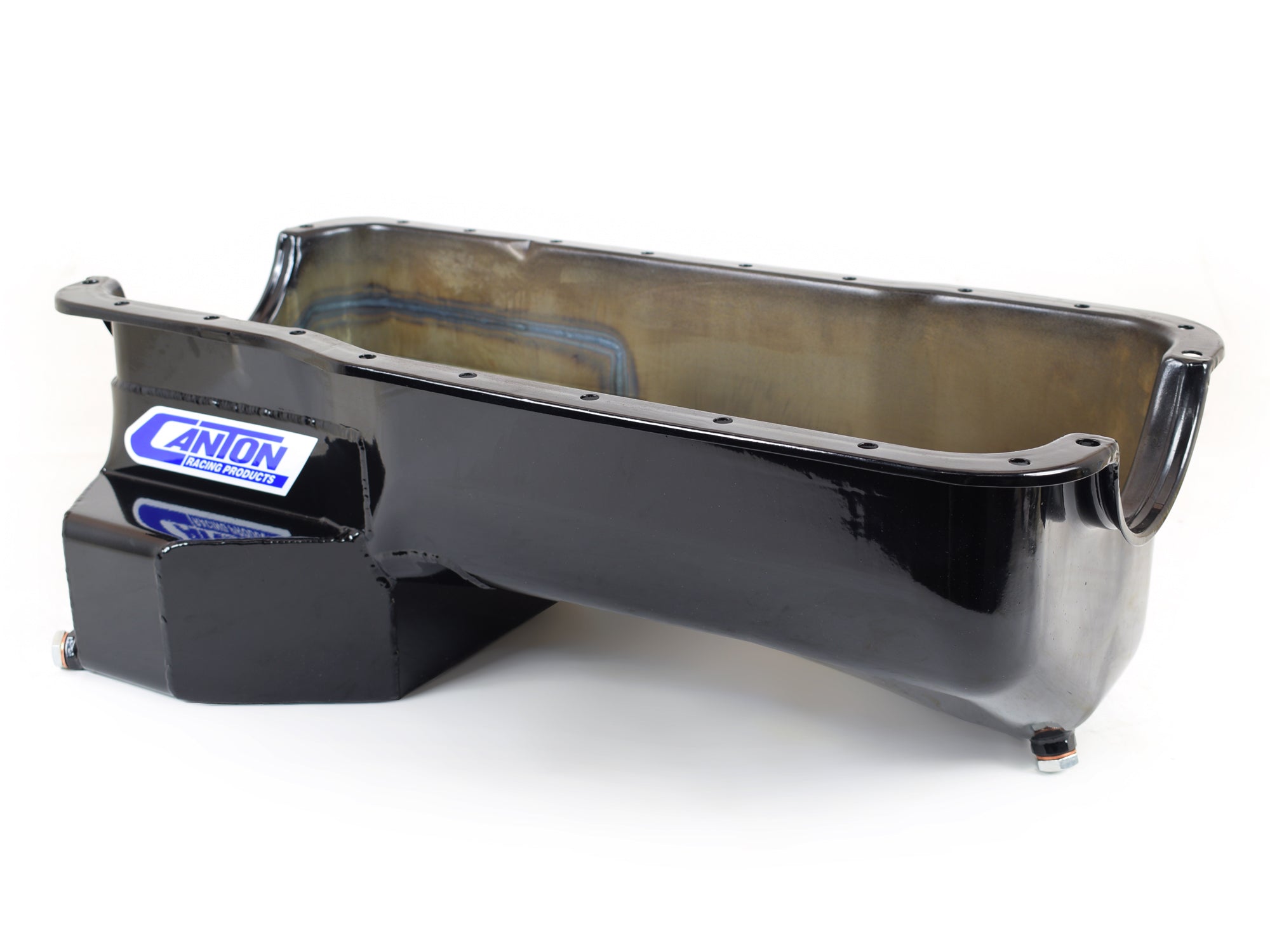

This black powder coat "T" style rear sump oil pan is for Ford 351W blocks in Fox Body Mustangs. It has a 7-1/2" deep 8" long by 13-1/2" wide sump and a 7 quart system capacity. This pan requires our 15-695 pickup. Pan does not include crank scraper to provide main support clearance. Some long tube headers require modification. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.
- 7 qt System Capacity
- Retains Stock Depth
- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
- Durable Black Powder Coat Finish
Attributes:
- Brand Name: Canton
- GTIN: 00887753713261
- Finish: Black Powder Coat
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Superseded
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 18 POUNDS
