Description

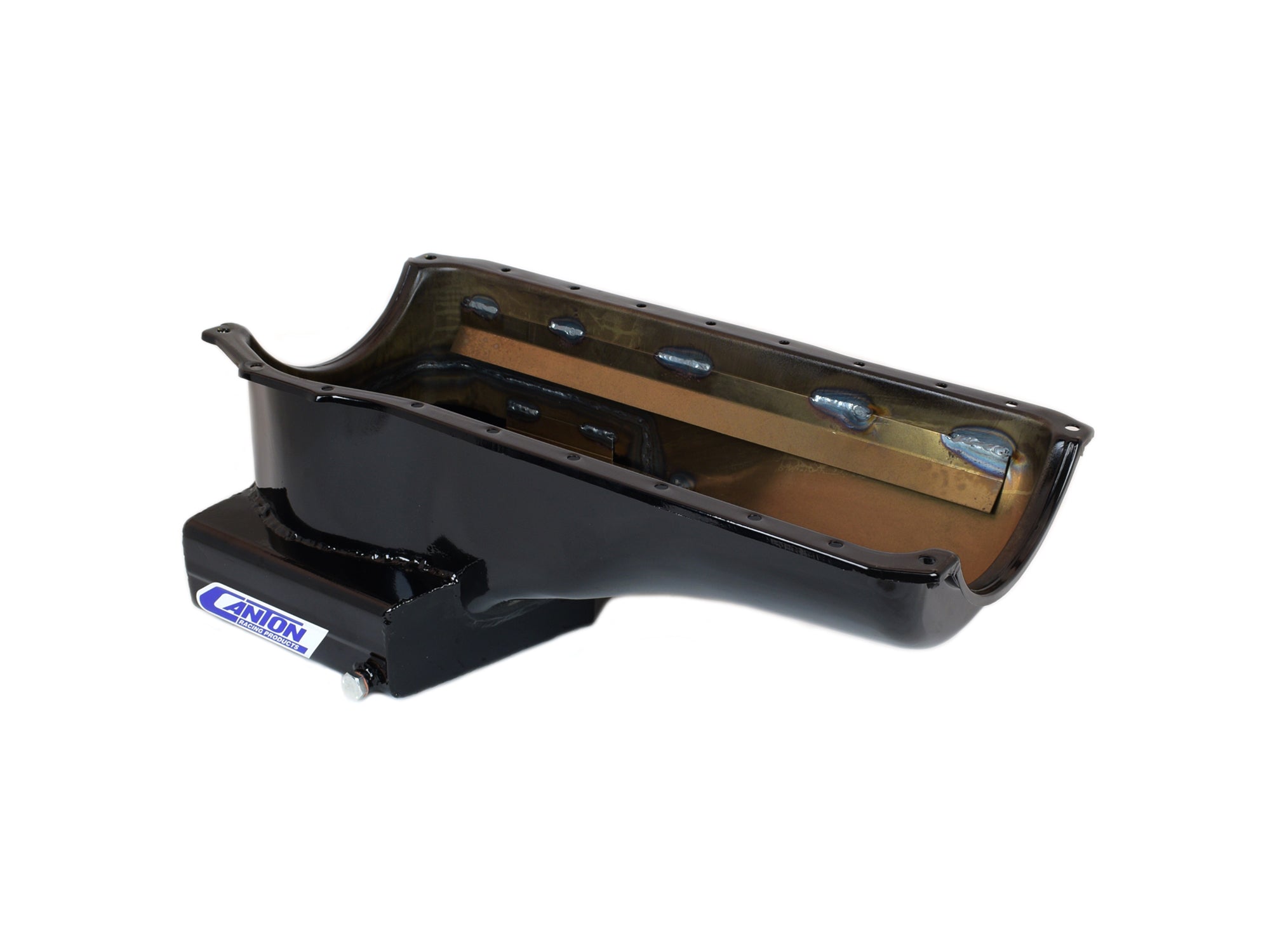

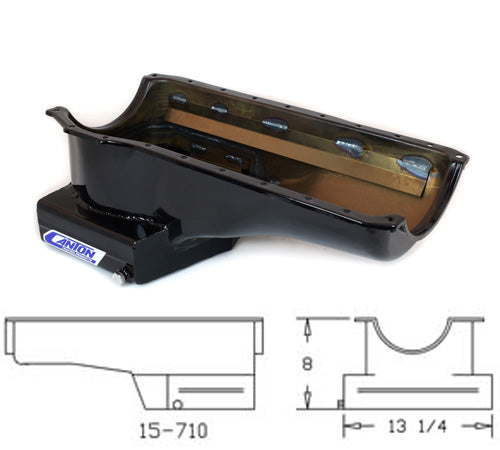

This front sump Ford 351 Cleveland or Modified block black powdercoated road race pan fits in most front sump production chassis except Mustang II, and Maverick's and Comets which may require modification. It has a 8" deep, 13-1/4" wide sump with a 7 qt. system capacity. This pan requires our 15-711 pickup.
- 7 qt System Capacity
- Crank Scraper
- Slosh Baffle
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753713292
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: No
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Crank Scraper
- Feature 3: Slosh Baffle
- Feature 4: Magnetic Drain Plug
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-711 - Pickup with 3/4" Dia. Inlet
- Recommended Accessory 2: 88-700 ? Small Block Ford 351C Four Piece Oil Pan Gasket
- Stoke: 4.0 inches
- Sump Depth: 8 inches
- Sump Width: 13.25 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 15 POUNDS
