Description

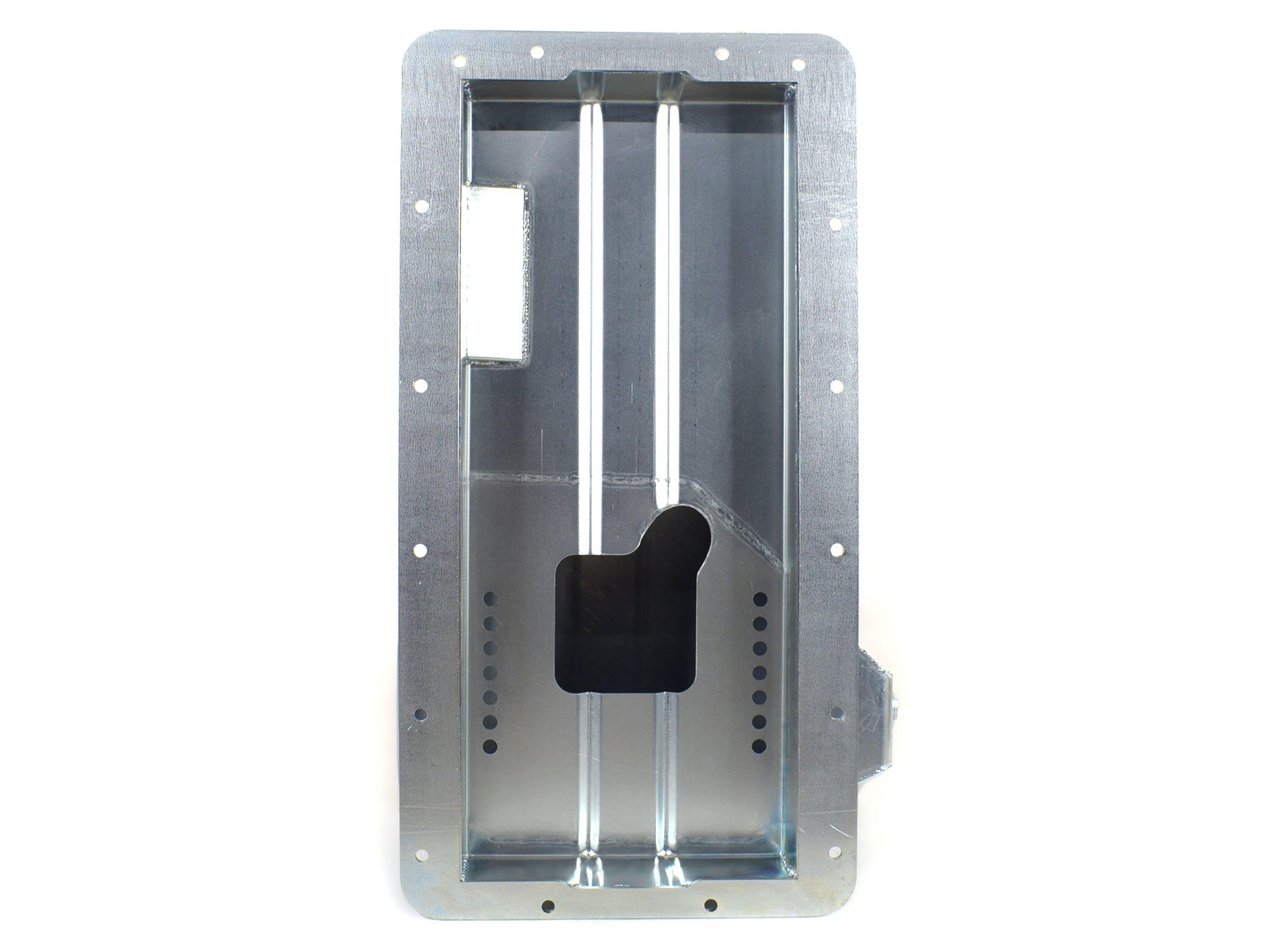

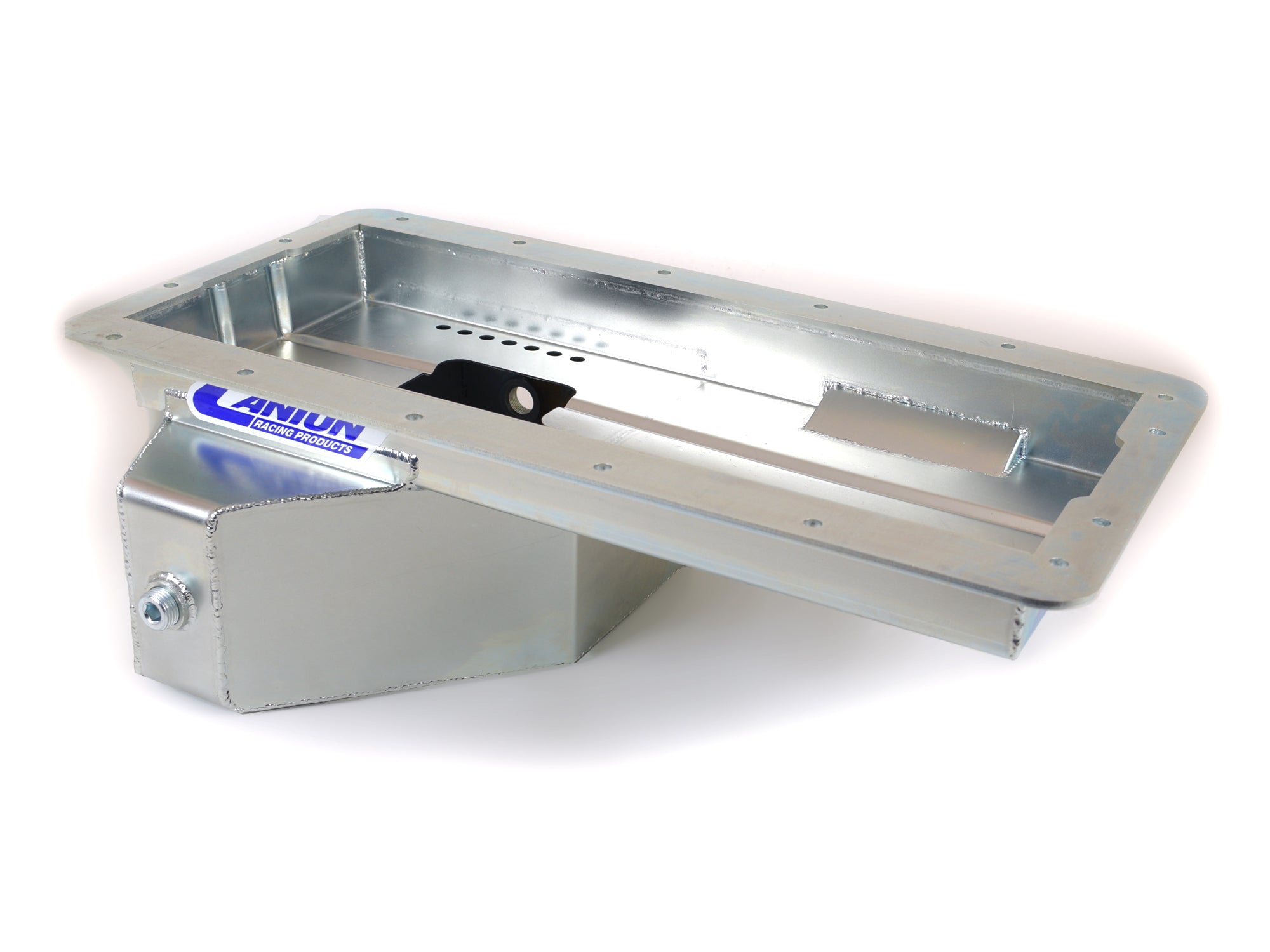

This 15-730 Ford 5.0 Coyote oil pan is designed for 96-04 and 05-12 Mustangs that are used on the street or strip. It's rear sump design offers extra capacity without sacrificing ground clearance and includes a slosh baffle for oil control to keep the oil off the crank shaft under heavy driving conditions.
- 3/16" Lasercut Rail
- Slosh Baffle
- Magnetic Drain Plug
- 7 qt System Capacity
- 1/2" NPT bung for temperature sensor
- Provison for our Pan Mounted Dipstick
- 20 mm bung for low oil warning sender (Plug required if sender isn't used)
Attributes:
- Brand Name: Canton
- GTIN: 00887753713346
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Feature 1: 3/16" Lasercut Rail
- Feature 2: Slosh Baffle
- Feature 3: Magnetic Drain Plug
- Feature 4: 7 qt System Capacity
- Feature 5: 1/2" NPT bung for temperature sensor
- Feature 6: Provison for our Pan Mounted Dipstick
- Feature 7: 20 mm bung for low oil warning sender (Plug required if sender isn't used)
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 22-405 - 20mm Plug For Oil Level Sender Port
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit - 1/4" NPT Fitting
- Recommended Accessory 3: 20-854 - Flexible Universal Steel Braided Dipstick Kit - 1/4" NPT Fitting
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 13.5 x 9.75 inches
- Weight: 13.5 POUNDS
