Description

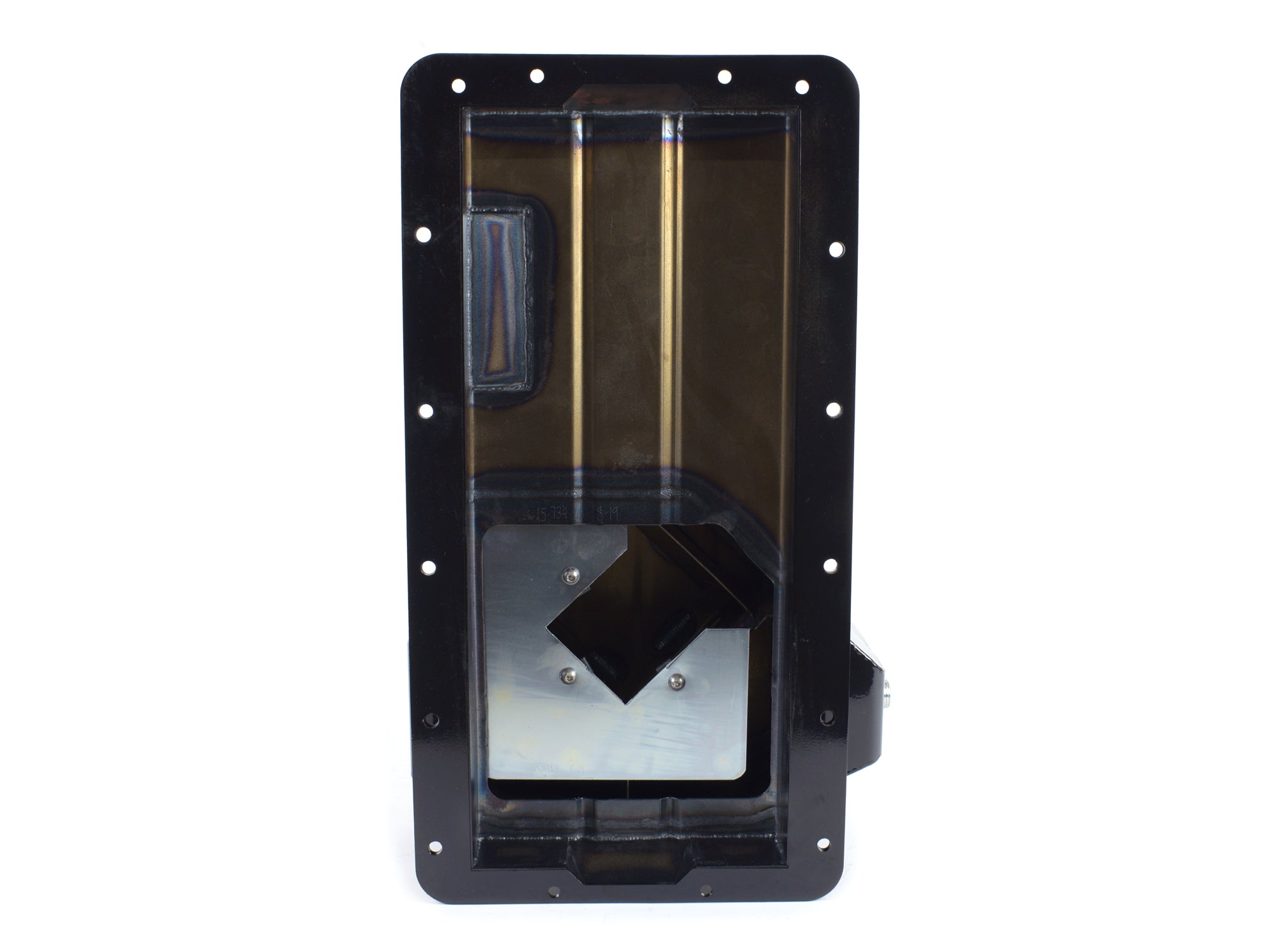

This 15-734 Ford 5.0 Coyote oil pan is designed for 96-04 and 05-12 Mustangs being used in road racing or street/strip applications. Our laser cut rail provides a strong, easy to seal surface. It's rear T sump design offers extra capacity without sacrificing ground clearance and includes a diamond shaped road race baffle assembly with four trap doors for great oil control under heavy driving conditions.
Note: Ford part #BR3Z6622A pickup required.
- 9 qt System Capacity
- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Crank Scraper
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753713360
- Finish: Black Powdercoat
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 13.25 x 9.75 inches
- Weight: 15.95 POUNDS
PDF:
