Description

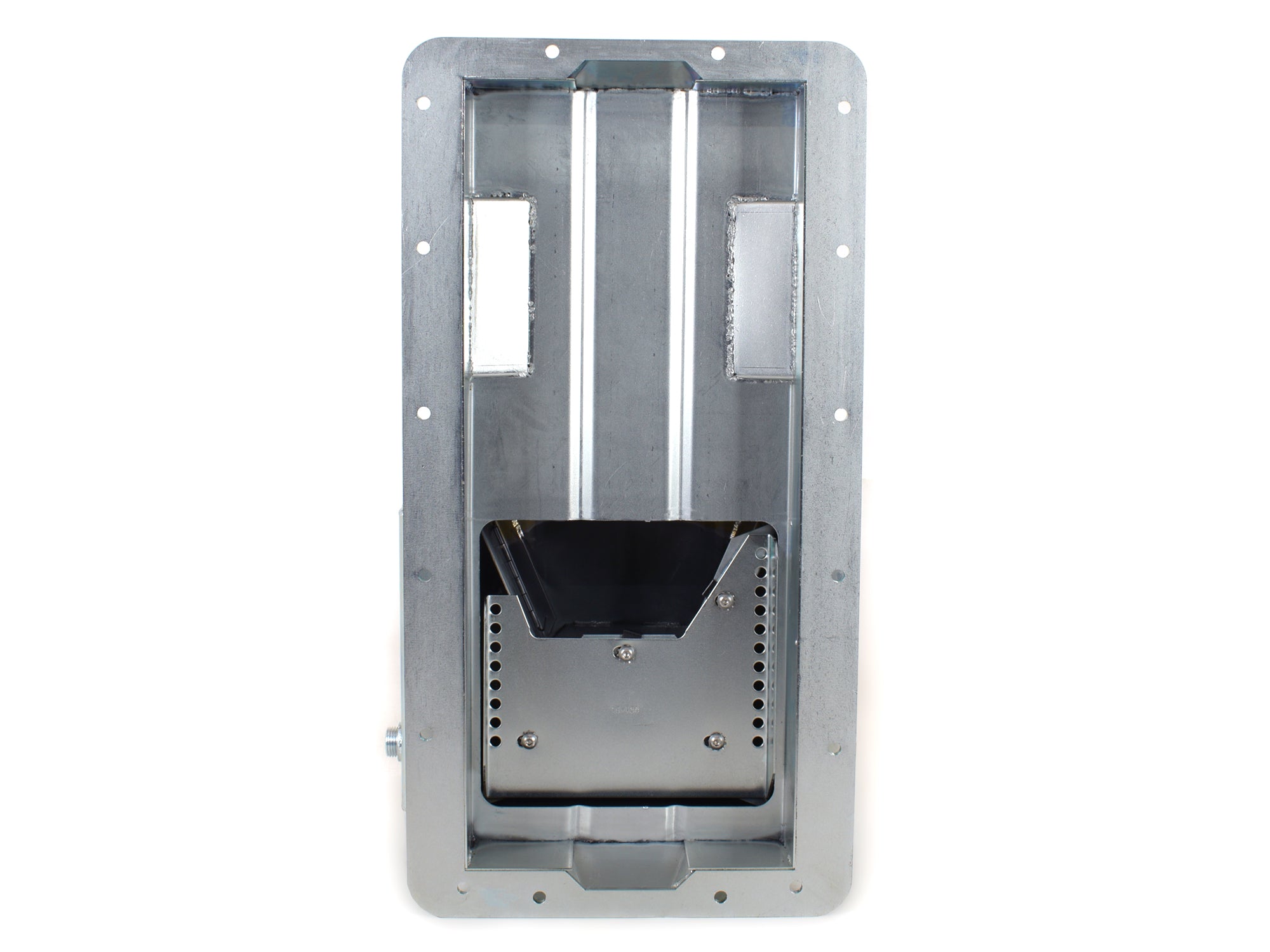

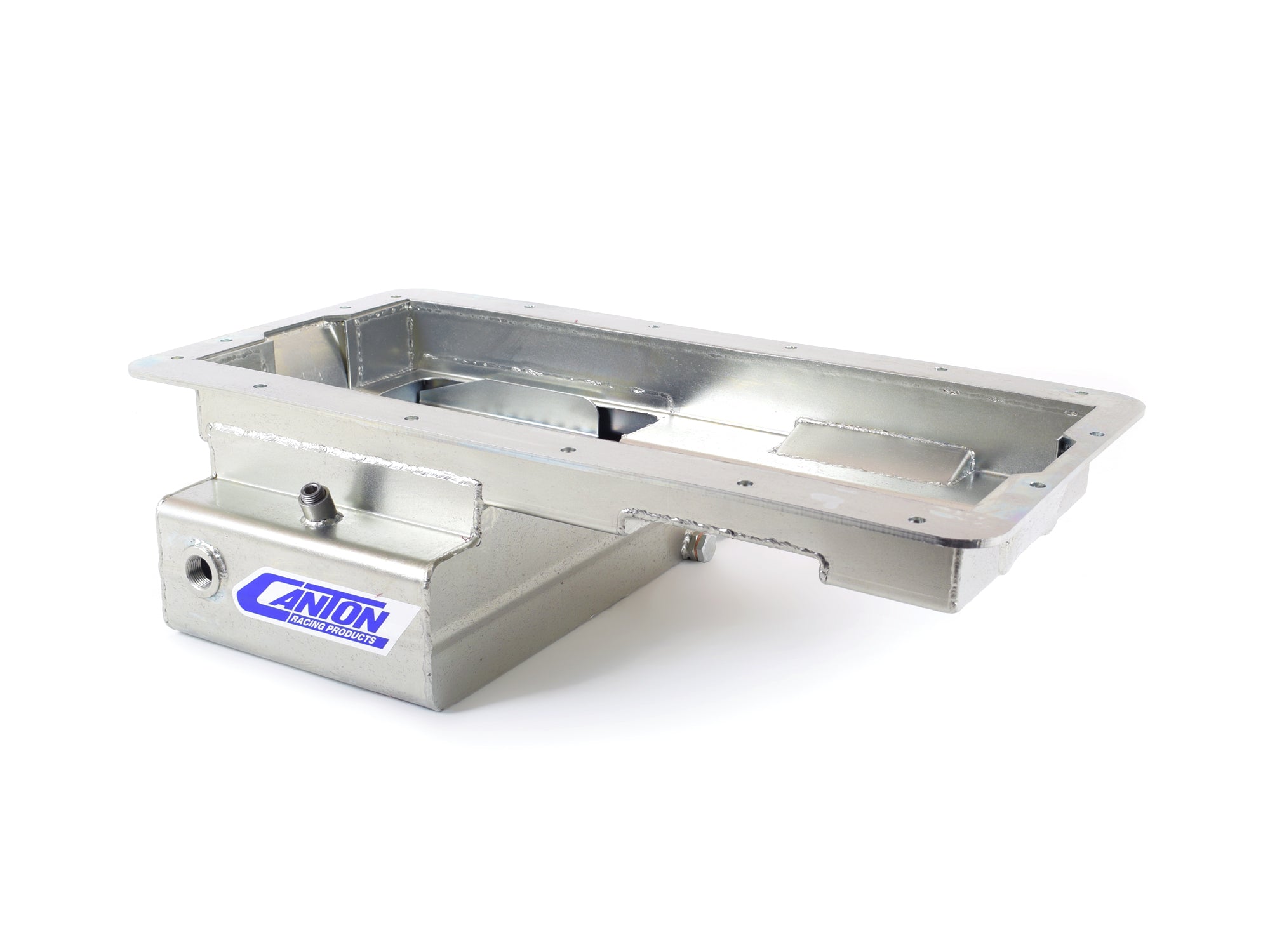

Cantons new 15-738 Ford 5.0 Coyote oil pan is designed for early Ford chassis and others that required a front sump oil pan. The pan is designed with a ?t?sump for extra capacity and is used in road race applications where ground clearance is important. It features a diamond shaped road race baffle assembly with four trap doors and a removable Windage/anti-slosh baffle. For Gen 3 Coyote part #20-937P38 Coyote Gen 3 Louvered Tray Pickup Combo For Oil Pan 15-738 is required.
- Designed for 5.0 Coyote Blocks
- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- 20mm Bung for low Oil Warning Sender
- Made In USA
- Tig Welded
Attributes:
- Brand Name: Canton
- GTIN: 00887753713414
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: Designed for 5.0 Coyote Blocks
- Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Feature 3: Removable Windage/Anti-Slosh Baffle
- Feature 4: 1/2" NPT Temperature Bung
- Feature 5: 20mm Bung for low Oil Warning Sender
- Feature 6: Made In USA
- Feature 7: Tig Welded
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-739 - Pickup for 5.0 Coyote Front Sump Pan
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T Fitting
- Recommended Accessory 4: 20-937P38 Coyote Gen 3 Louvered Tray Pickup Combo For Oil Pan 15-738
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26.5 x 13.5 x 10 inches
- Weight: 15.05 POUNDS
