Description

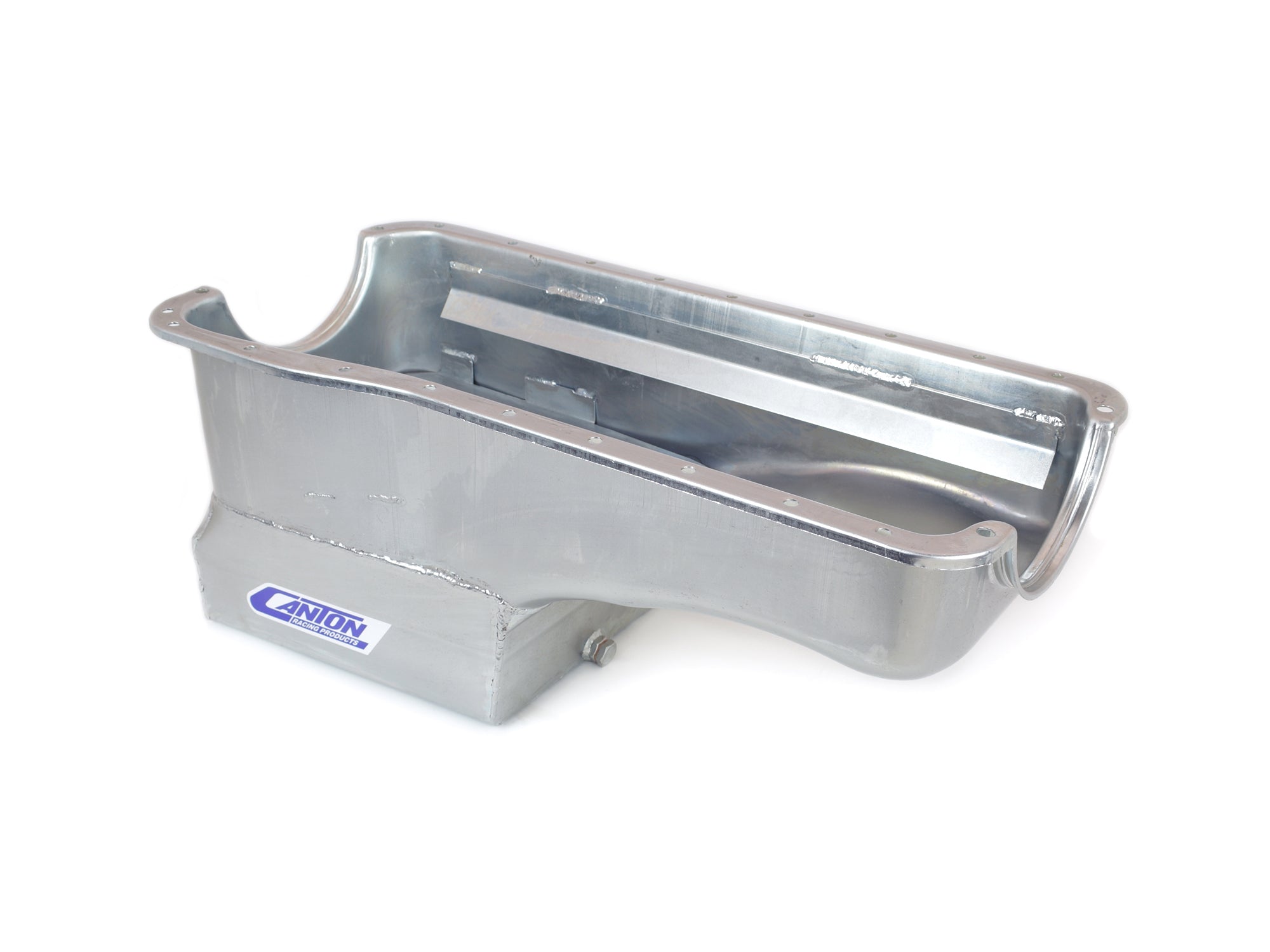

This big block Ford 429-460 deep front sump oil pan has a 10" deep sump with an 8 quart system capacity. This pan requires our 15-751 Cobra Jet pickup.
- 8 qt System Capacity
- Retains Stock Width To Clear Competition Headers
- Crank Scraper
- Slosh Baffle
- Magnetic Drain Plug
- Recommended to be used with the Mellings #M84B and #M84BHV CJ Pump with bolt on pickups
Attributes:
- Brand Name: Canton
- GTIN: 00887753713469
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: No
- Drain Plug Included: Yes
- Feature 1: 8 qt System Capacity
- Feature 2: Retains Stock Width To Clear Competition Headers
- Feature 3: Crank Scraper
- Feature 4: Slosh Baffle
- Feature 5: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-751 - Pickup for Cobra Jet Oil Pump
- Recommended Accessory 2: 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket
- Stoke: 4.5 inches

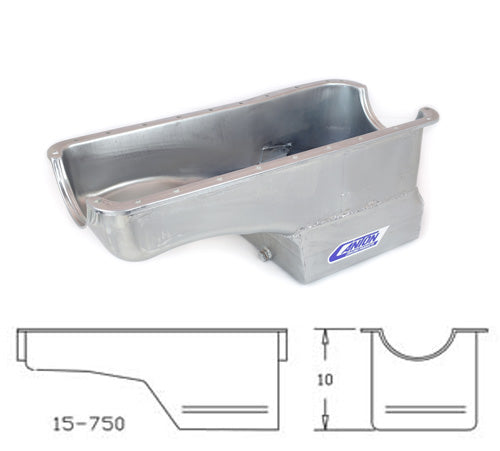

- Sump Depth: 10 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 17 POUNDS
