Description

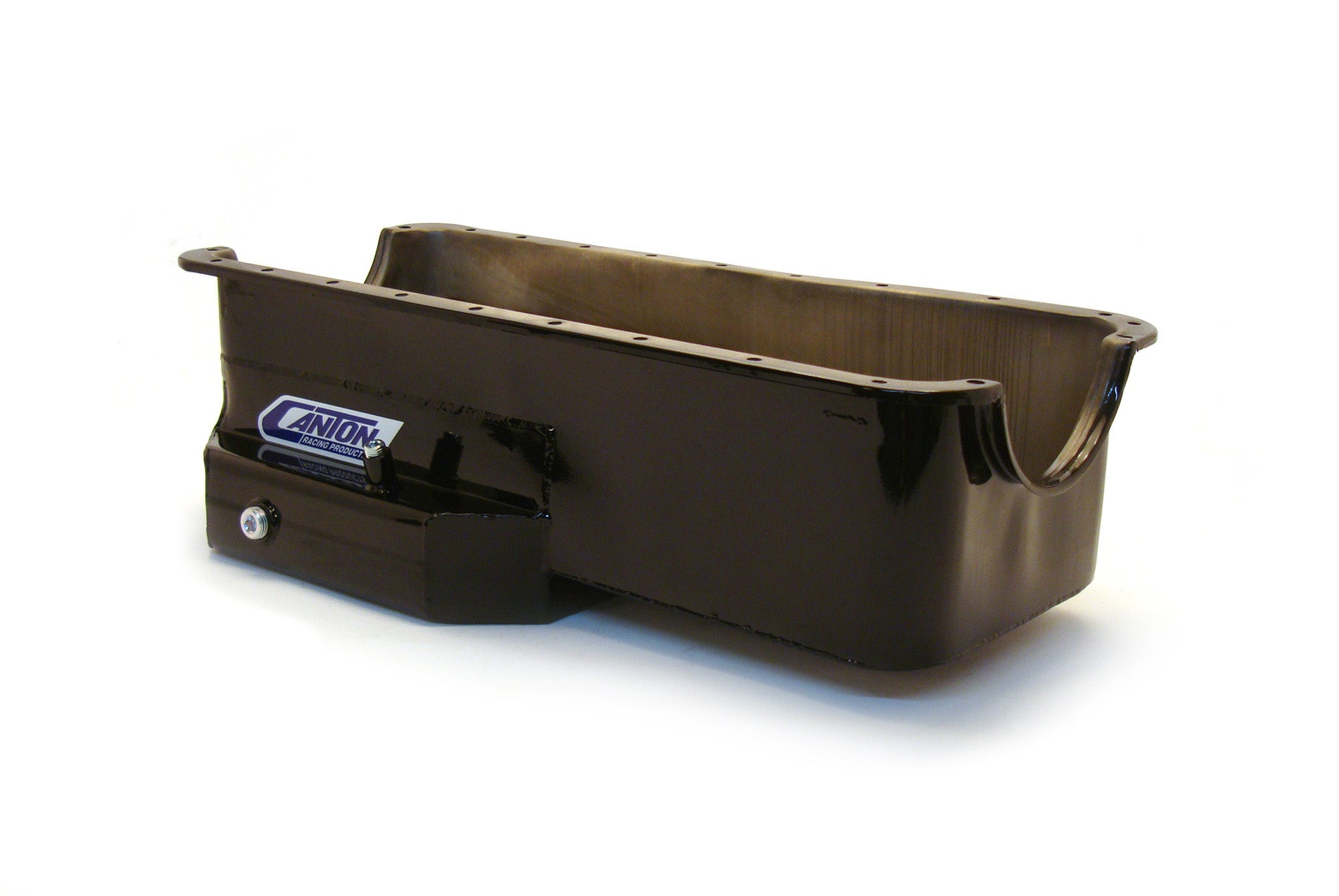

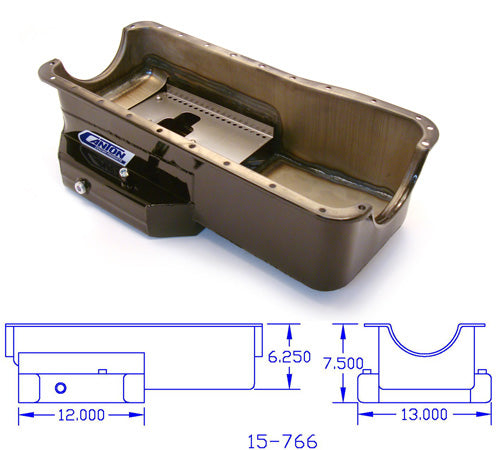

This "T" style rear sump oil pan is designed for Ford 429/460 blocks in Cobras. It has a 7.5? deep, 13? wide by 12? long sump, with an 8 qt system capacity. This pan requires our 15-767 pickup.
- 8 qt System Capacity
- Shallow "T" Sump Pan Fully Baffled For Road Race
- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Crank Scraper
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
- Gloss Black Powder Coat Finish for Maximum Durability
Attributes:
- Brand Name: Canton
- GTIN: 00887753713520
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 8 qt System Capacity
- Feature 2: Shallow "T" Sump Pan Fully Baffled For Road Race
- Feature 3: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Feature 4: Crank Scraper
- Feature 5: Removable Windage/Anti-Slosh Baffle
- Feature 6: 1/2" NPT Temperature Bung
- Feature 7: Provision For Our Pan Mounted Dipstick
- Feature 8: Magnetic Drain Plug
- Feature 9: Gloss Black Powder Coat Finish for Maximum Durability
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-767 - Pickup for 15-766 pan and M-84DHV Pump
- Recommended Accessory 2: 21-066 - Canton 429-460 Steel Main Support
- Recommended Accessory 3: 20-966 - Ford 429-460 Main Support Mounted Windage Tray
- Recommended Accessory 4: 20-956 - Pickup Mounting Stud for 429-460 Based Engine
- Recommended Accessory 5: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 6: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T.
- Recommended Accessory 7: 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket
- Stoke: 4.5 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 16 POUNDS
