Description

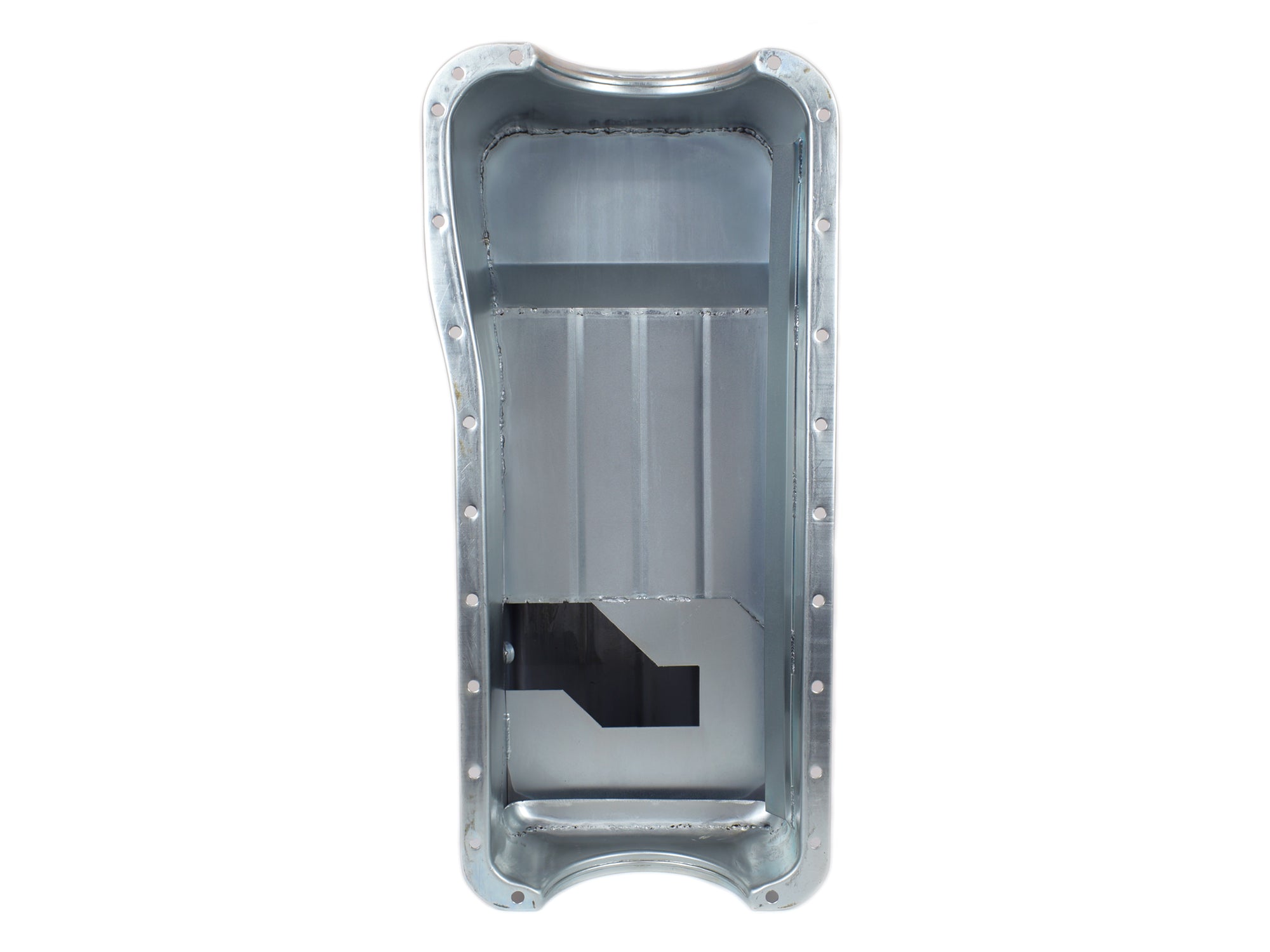

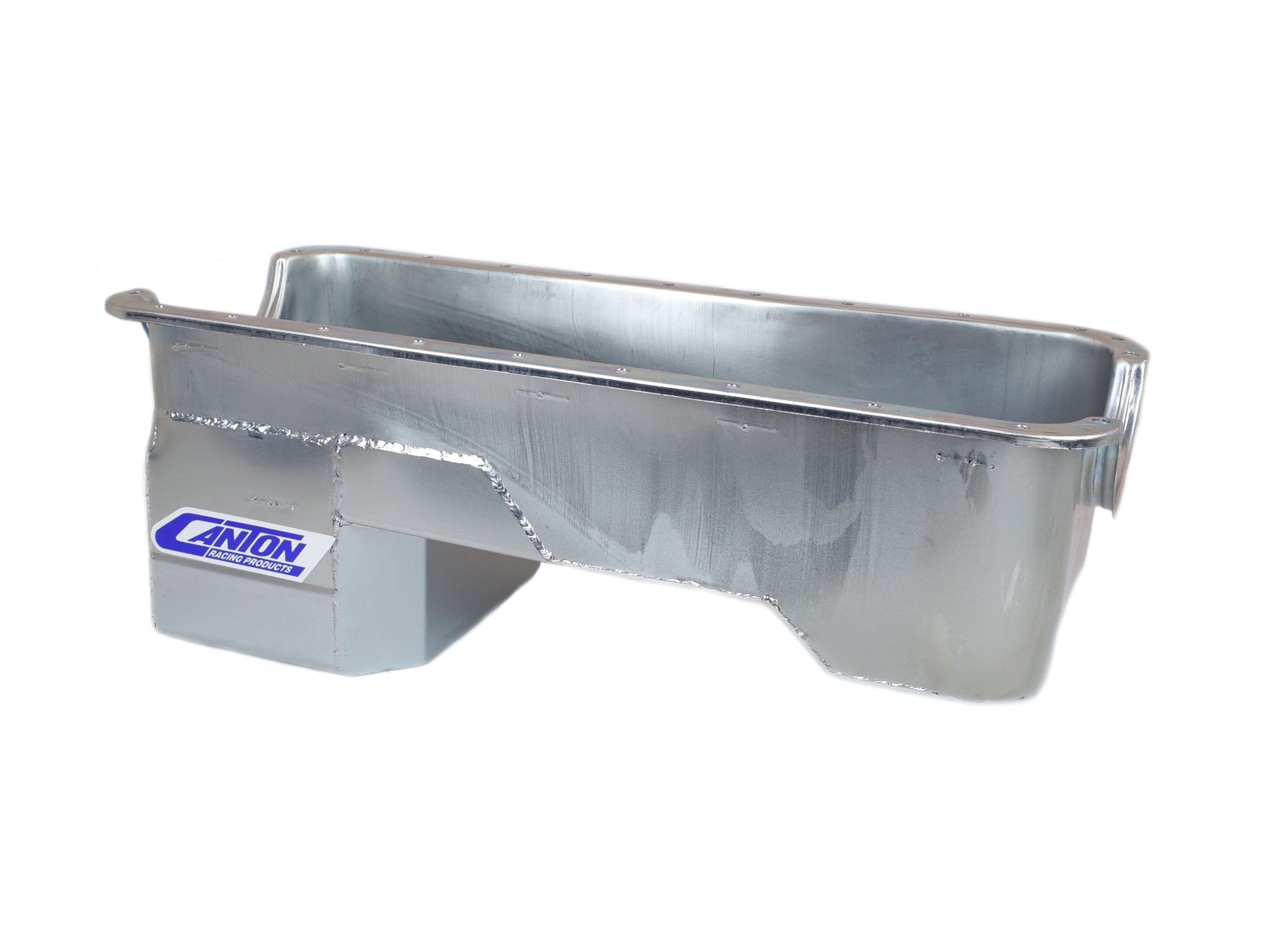

Rear sump for Ford 429-460 blocks for Fox Body Mustang conversions. It has a 9" deep by 7-1/2" long sump giving it a 7 quart system capacity. Note: This Ford 429-460 pan for '79 and up Mustang and '80 & up T-Bird chassis will require special motor mounts and may require modification when used in 79-80 Mustangs. Requires 15-771 pickup for Melling oil pump M84DHV or 15-777 pickup for use with our Main Support #21-066.
- 7 qt System Capacity
- Extra Deep Sump For Increased Oil Control & Capacity
- Crank Scraper
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753713544
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Extra Deep Sump For Increased Oil Control & Capacity
- Feature 3: Crank Scraper
- Feature 4: Slosh Baffle
- Feature 5: Provision For Our Pan Mounted Dipstick
- Feature 6: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-771 - Pickup 3/4" Dia. Inlet
- Recommended Accessory 2: 15-777 - Pickup 3/4" Dia. Inlet for use with Canton Main Support
- Recommended Accessory 3: 21-066 - Canton 429-460 Steel Main Support
- Recommended Accessory 4: 20-966 - Ford 429-460 Main Support Mounted Windage Tray
- Recommended Accessory 5: 20-956 - Pickup Mounting Stud for 429-460 Based Engine
- Recommended Accessory 6: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 7: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T.
- Recommended Accessory 8: 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket
- Stoke: 4.5 inches
- Sump Depth: 9 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 16 POUNDS
