Description

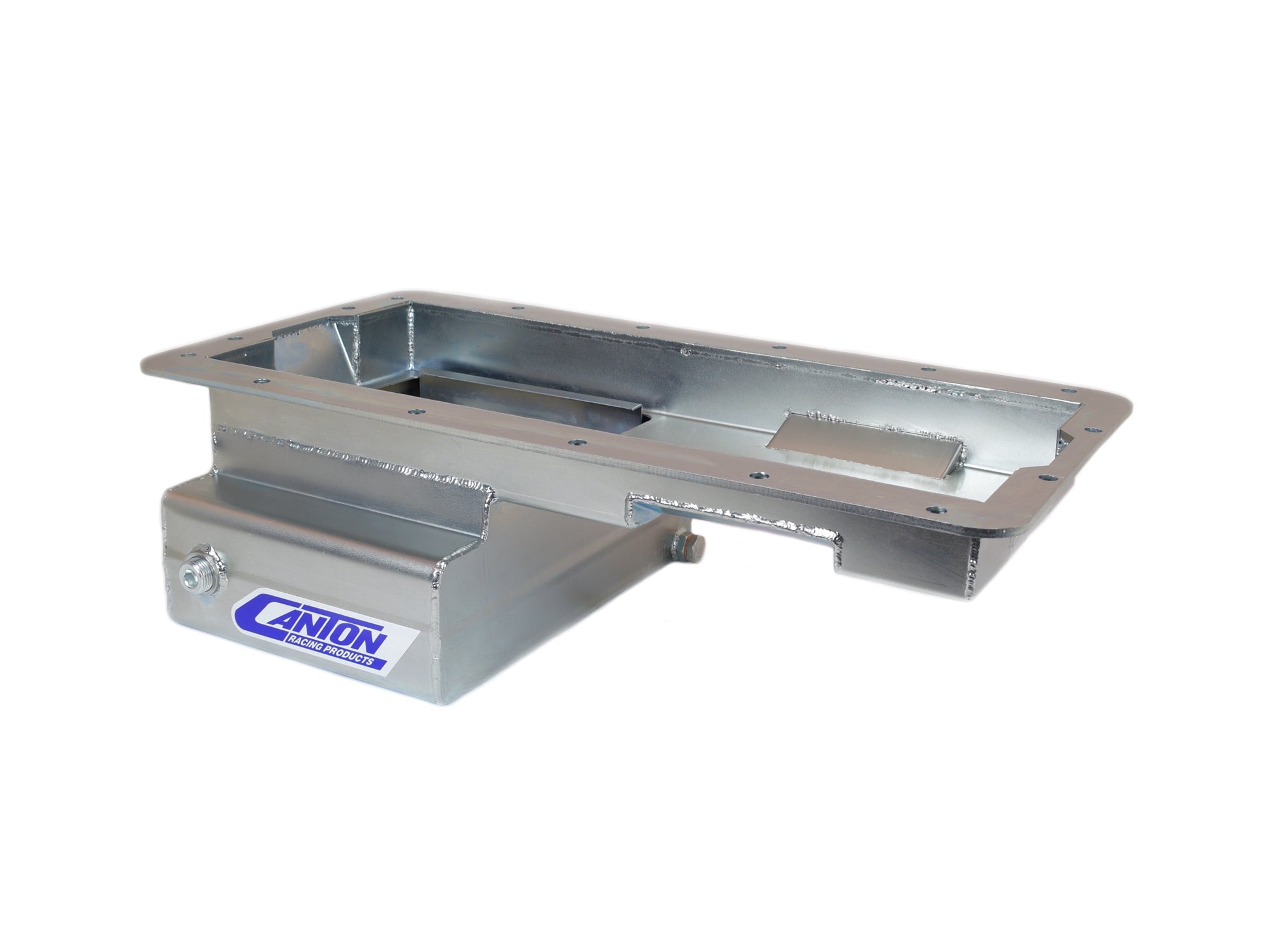

This front sump engine swap oil pan is designed to install 4.6/5.4L modular engines into early Ford chassis that require a front sump pan. It has a 6-1/4" deep, 12" wide, by 8" long sump with a 7 quart system capacity. This pan requires our 15-791 pickup for 4.6L and 5.4L 2V pumps or 15-793 pickup for 4.6L and 5.4L 4V pumps, 3V use O.E.M Pickup.
- 7 qt System Capacity

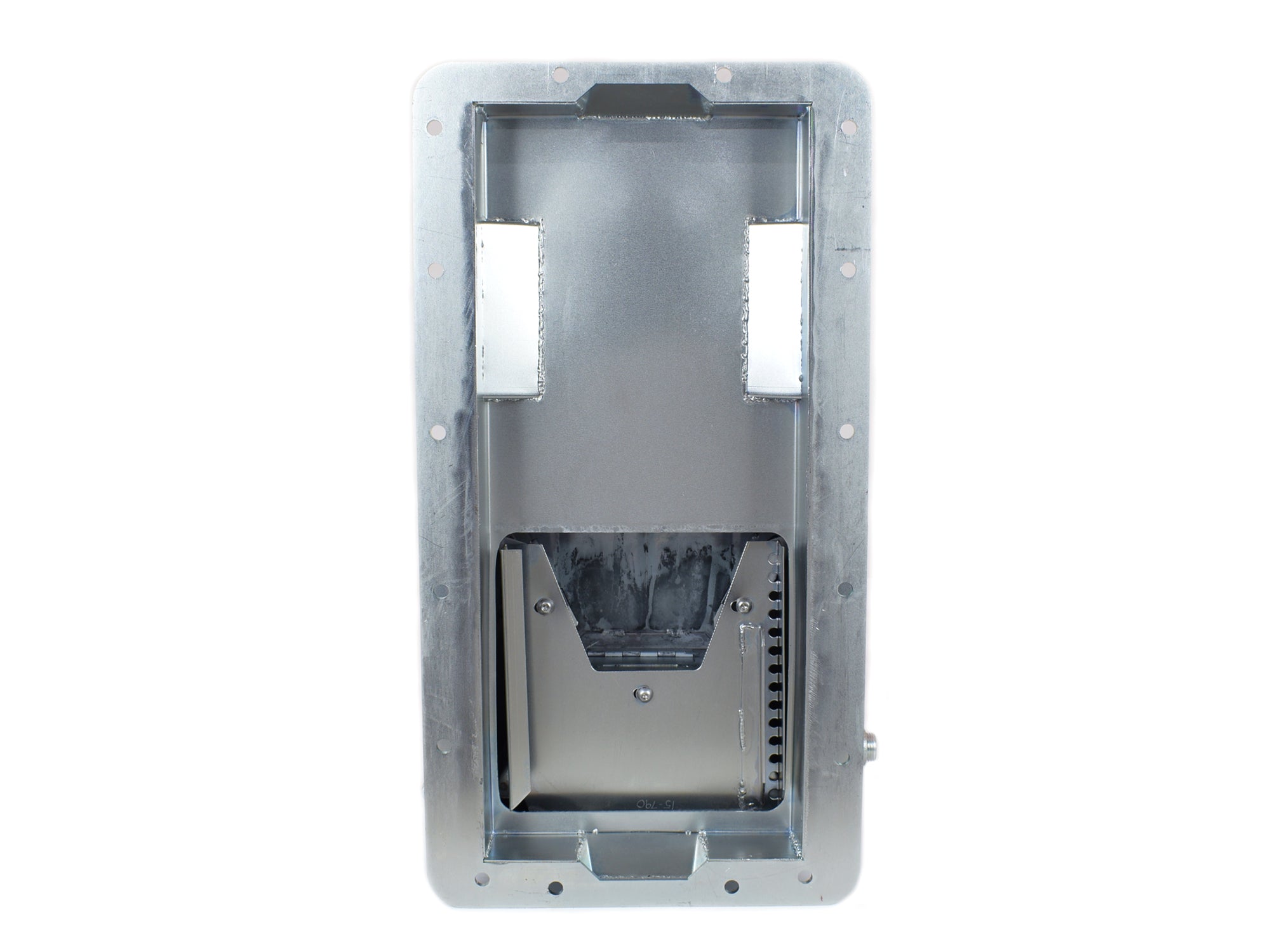

- Road Race Baffle Assembly With Five Trap Doors
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753713667
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Road Race Baffle Assembly With Five Trap Doors
- Feature 3: Removable Windage/Anti-Slosh Baffle
- Feature 4: 1/2" NPT Temperature Bung
- Feature 5: Provision For Our Pan Mounted Dipstick
- Feature 6: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-791 - Pickup for 4.6L/5.4L 2V Pumps
- Recommended Accessory 2: 15-793 - Pickup for 4.6L/5.4L 4V Pumps
- Recommended Accessory 3: 20-939 - Ford 4.6L/5.4L Screen Windage Tray
- Recommended Accessory 4: 88-780 ? Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
- Stoke: 106MM
- Sump Depth: 6.25 inches
- Sump Width: 12 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 14 POUNDS
