Description

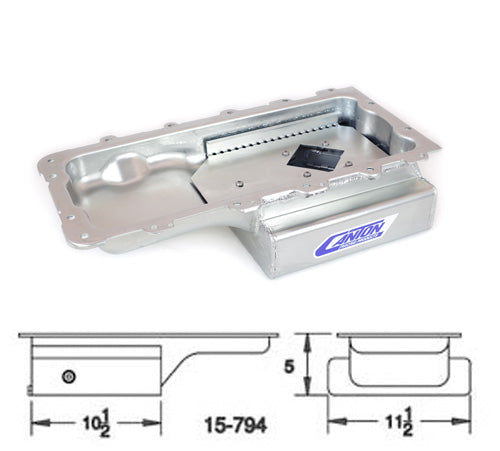

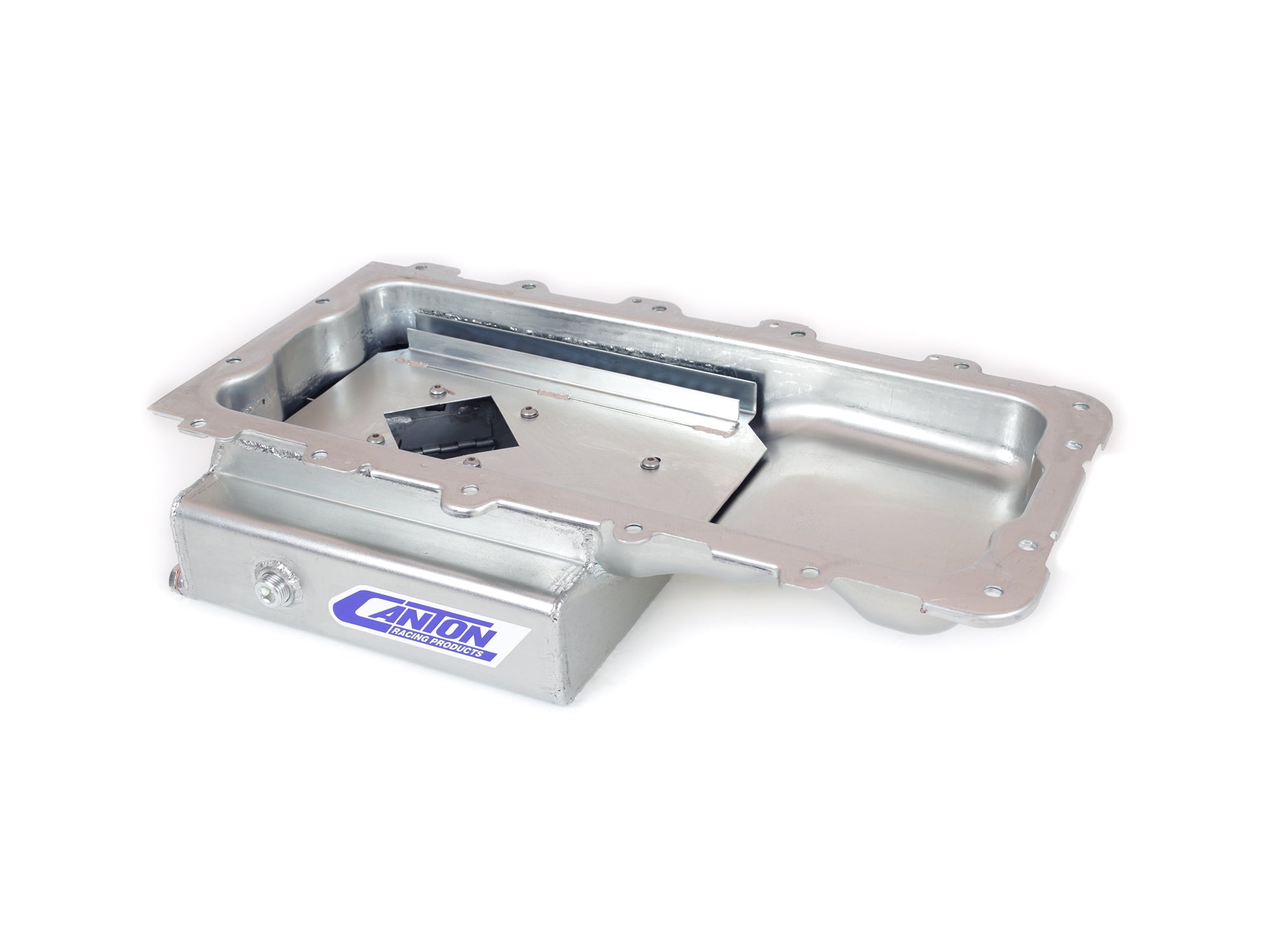

This ?T? style modular rear sump road race oil pan is designed to install a Ford 4.6L/5.4L into a kit car without losing ground clearance. It has 5" deep, 11-1/2" wide by 10-1/2" long sump and a 7 quart system capacity. This pan requires our 15-795 2V pickup.
- 7 qt System Capacity
- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Temperature Bung
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753713704
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Feature 3: Removable Windage/Anti-Slosh Baffle
- Feature 4: 1/2" NPT Temperature Bung
- Feature 5: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-795 - Pickup for 4.6L/5.4L 2V Oil Pump
- Recommended Accessory 2: 20-939 - Ford 4.6L/5.4L Screen Windage Tray
- Recommended Accessory 3: 88-780 ? Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
- Stoke: 106MM
- Sump Depth: 5 inches
- Sump Width: 11.5 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available Only While Supplies Last
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 14 POUNDS
