Description

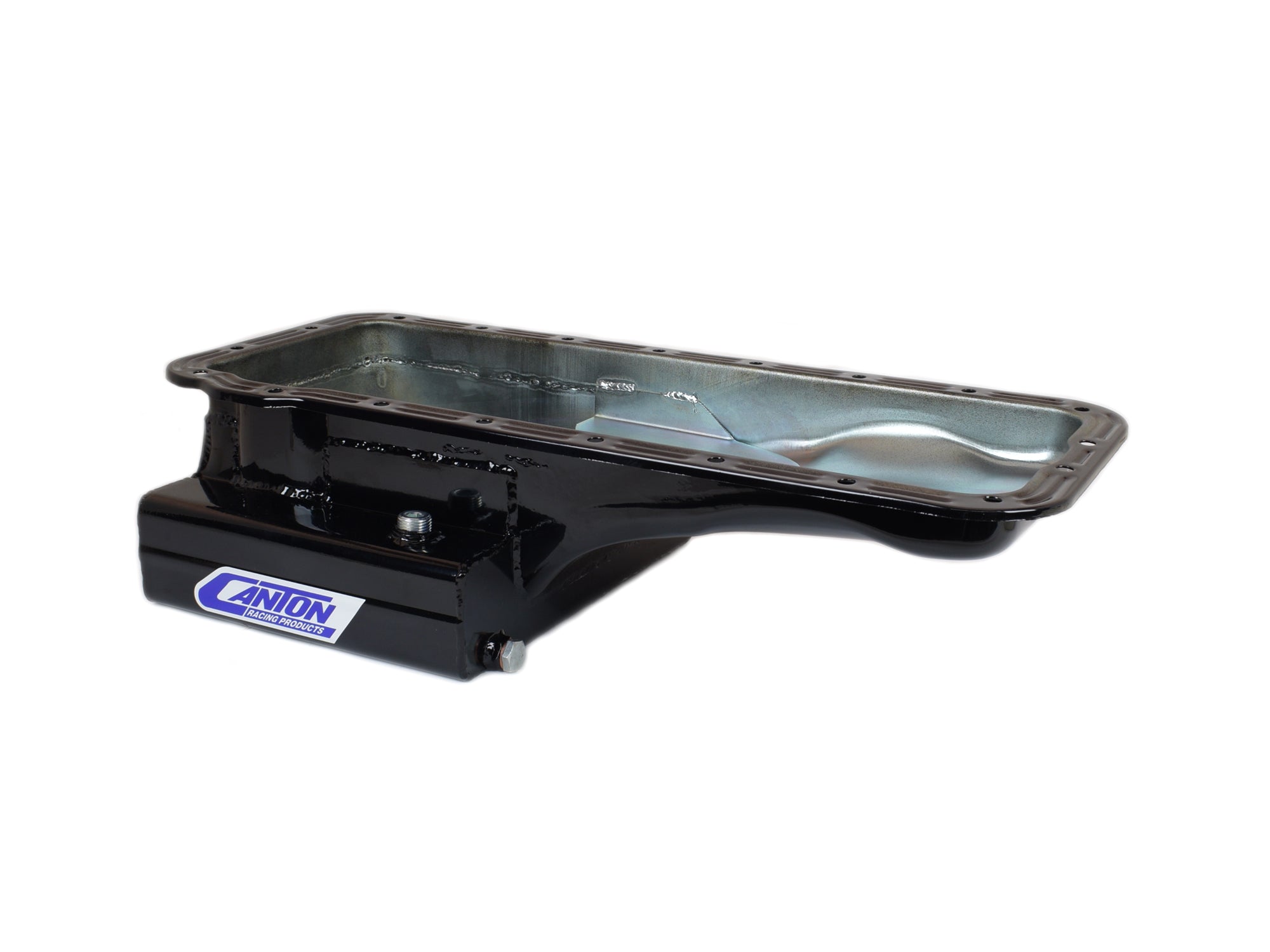

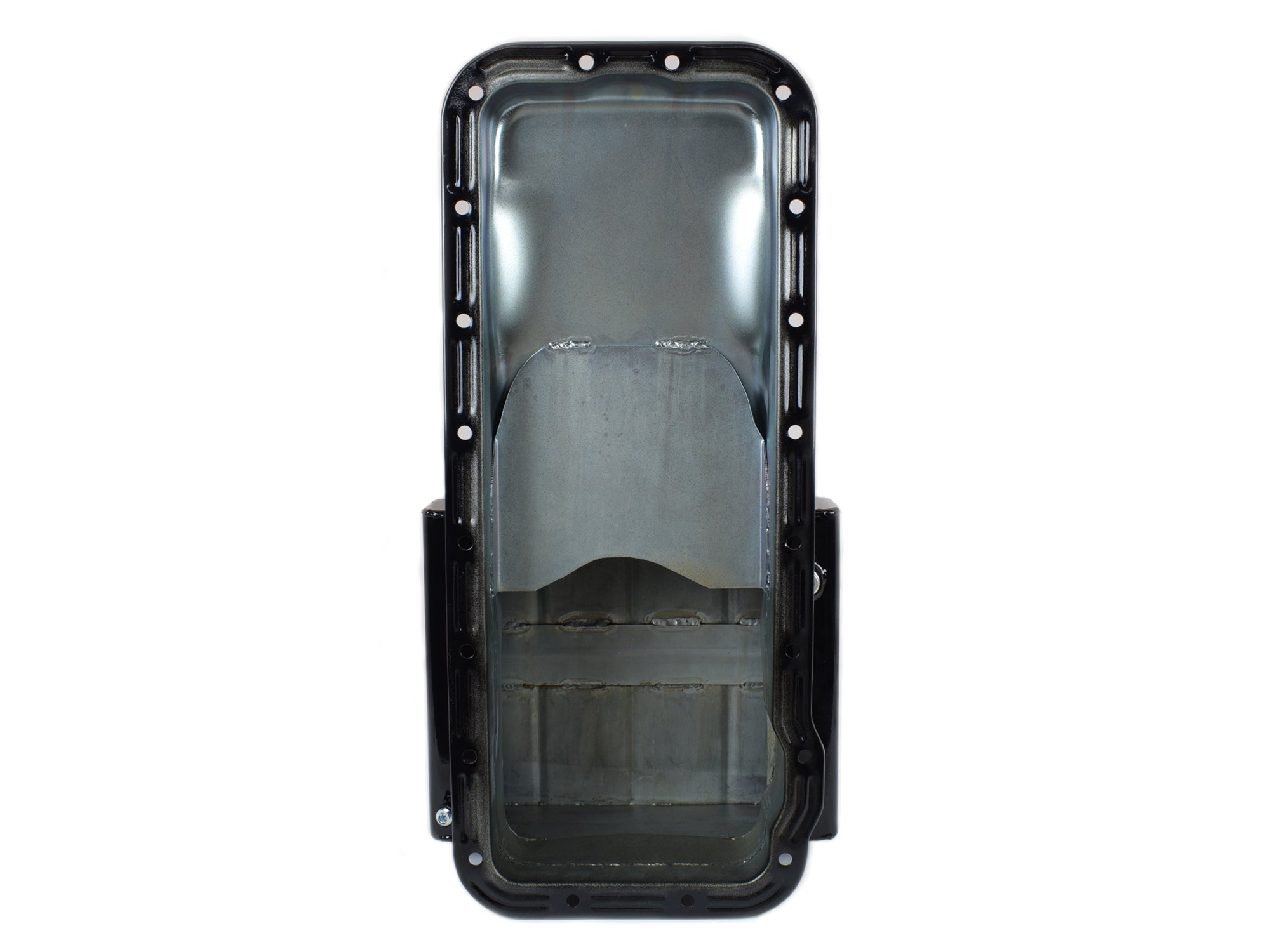

This black powder coat high capacity front sump is for all Ford 332-428FE blocks. "T" style sump to increase capacity without losing ground clearance. It has a 6" deep, 12-1/2" wide by 10" long sump with a 8 quart system capacity. This pan requires our 15-811 pickup.
- 8 qt System Capacity
- Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753713773
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 8 qt System Capacity
- Feature 2: Slosh Baffle
- Feature 3: 1/2" NPT Temperature Bung
- Feature 4: Provision For Our Pan Mounted Dipstick
- Feature 5: Magnetic Drain Plug
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-811 - Pickup 3/4" Dia. Inlet
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 20-938 - Ford 332-428FE Screen Windage Tray
- Recommended Accessory 5: 88-800 - Ford 332-428FE Oil Pan Gasket
- Stoke: 4.125 inches
- Sump Depth: 6 inches
- Sump Width: 12.5 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 16 POUNDS
