Description

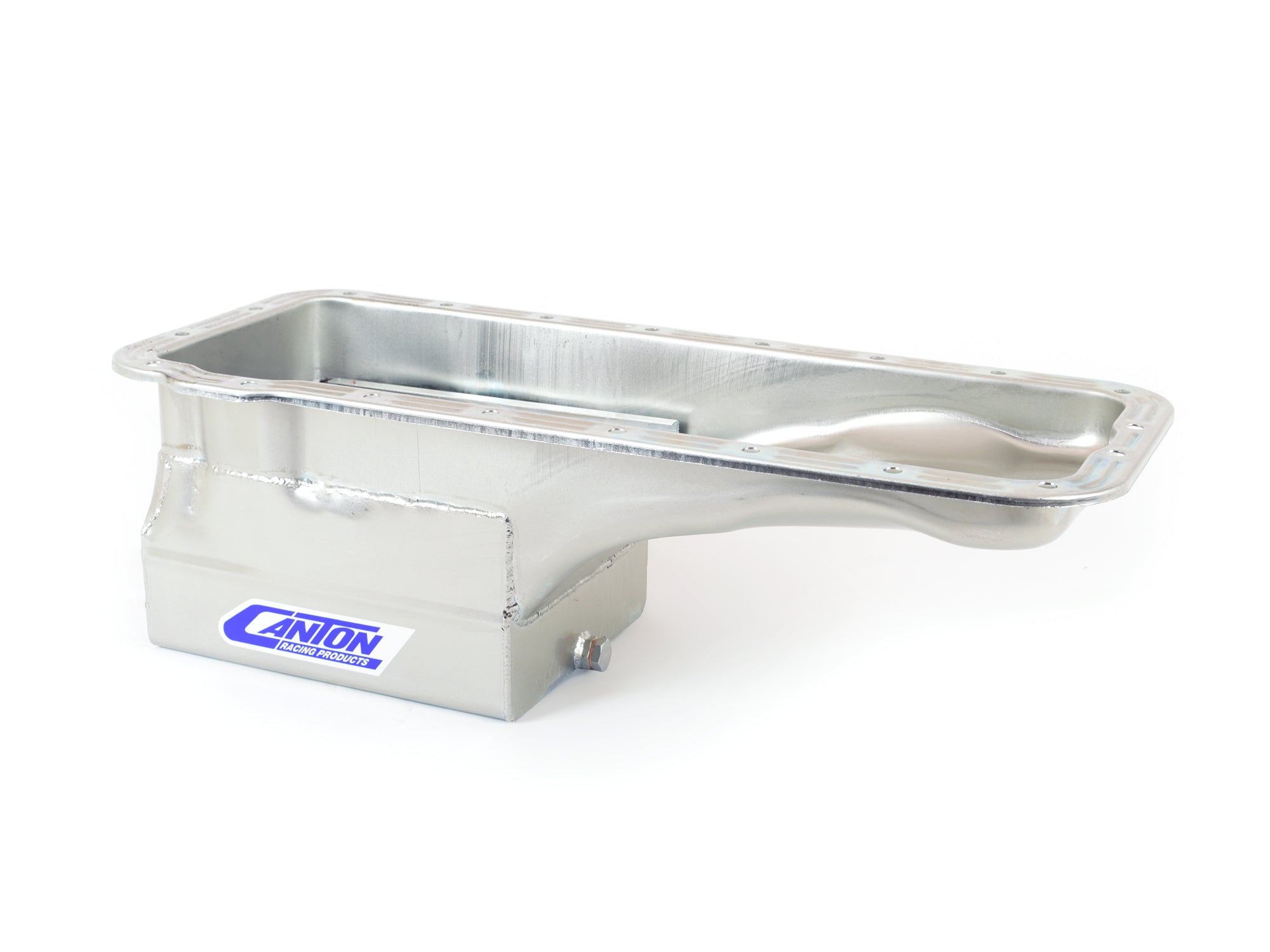

This Ford 332 - 428FE deep front sump oil pans provides extra capacity but retains stock width to clear competition headers. It has a 7-1/2" deep sump for a 7 quart system capacity. This pan requires our 15-851 pickup.
- 7 qt System Capacity

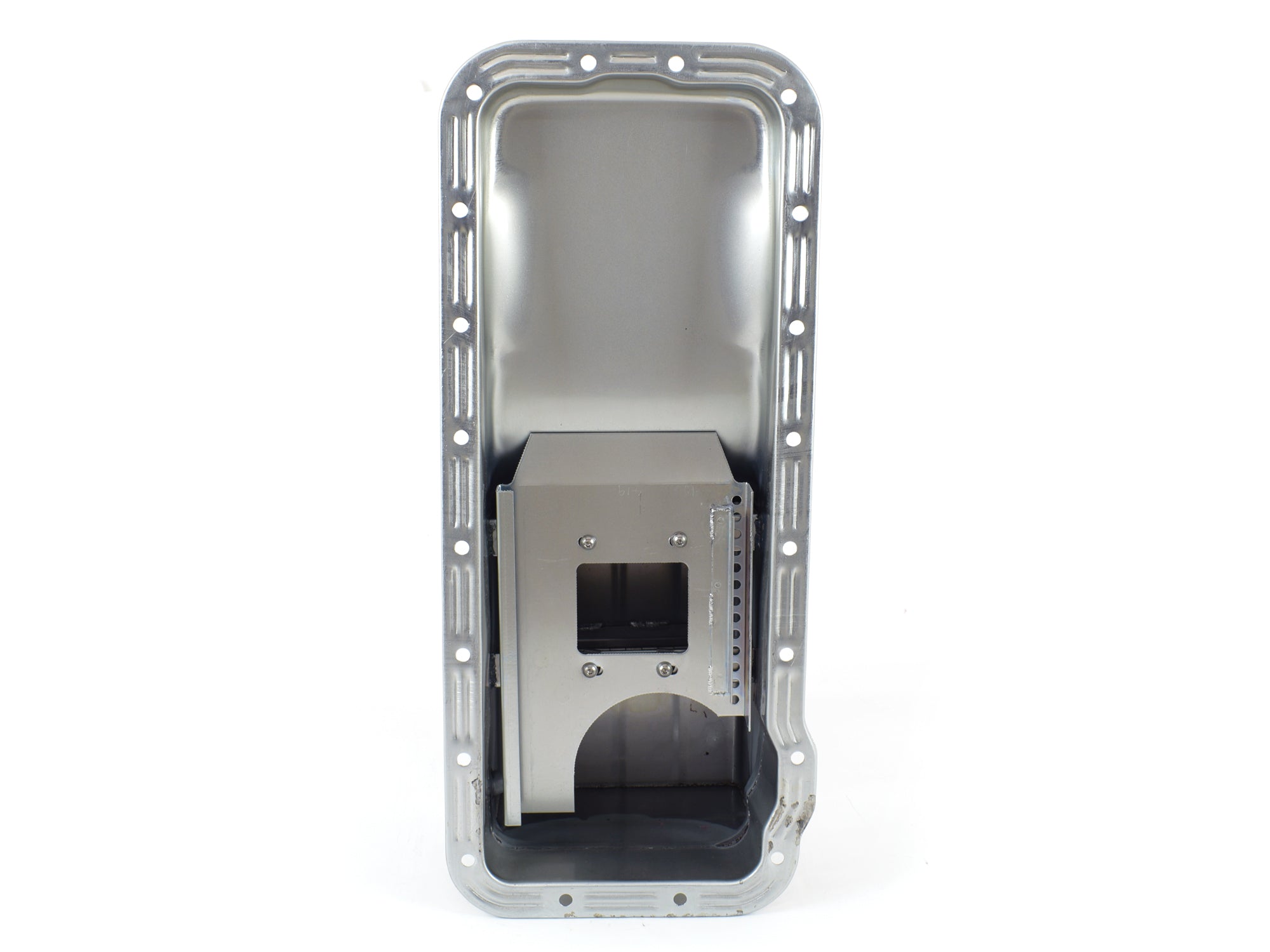

- Two Trap Door Baffles
- Bolt In Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753713827
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Two Trap Door Baffles
- Feature 3: Bolt In Slosh Baffle
- Feature 4: Provision For Our Pan Mounted Dipstick
- Feature 5: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-851 - Pickup 3/4" Dia. Inlet
- Recommended Accessory 2: 20-938 - Ford 332-428FE Screen Windage Tray
- Recommended Accessory 3: 88-800 - FE Cork Oil Pan Gasket
- Recommended Accessory 4: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 5: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Stoke: 4.125 inches
- Sump Depth: 7.5 inches
- Sump Width: 8 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 16 POUNDS
