Description

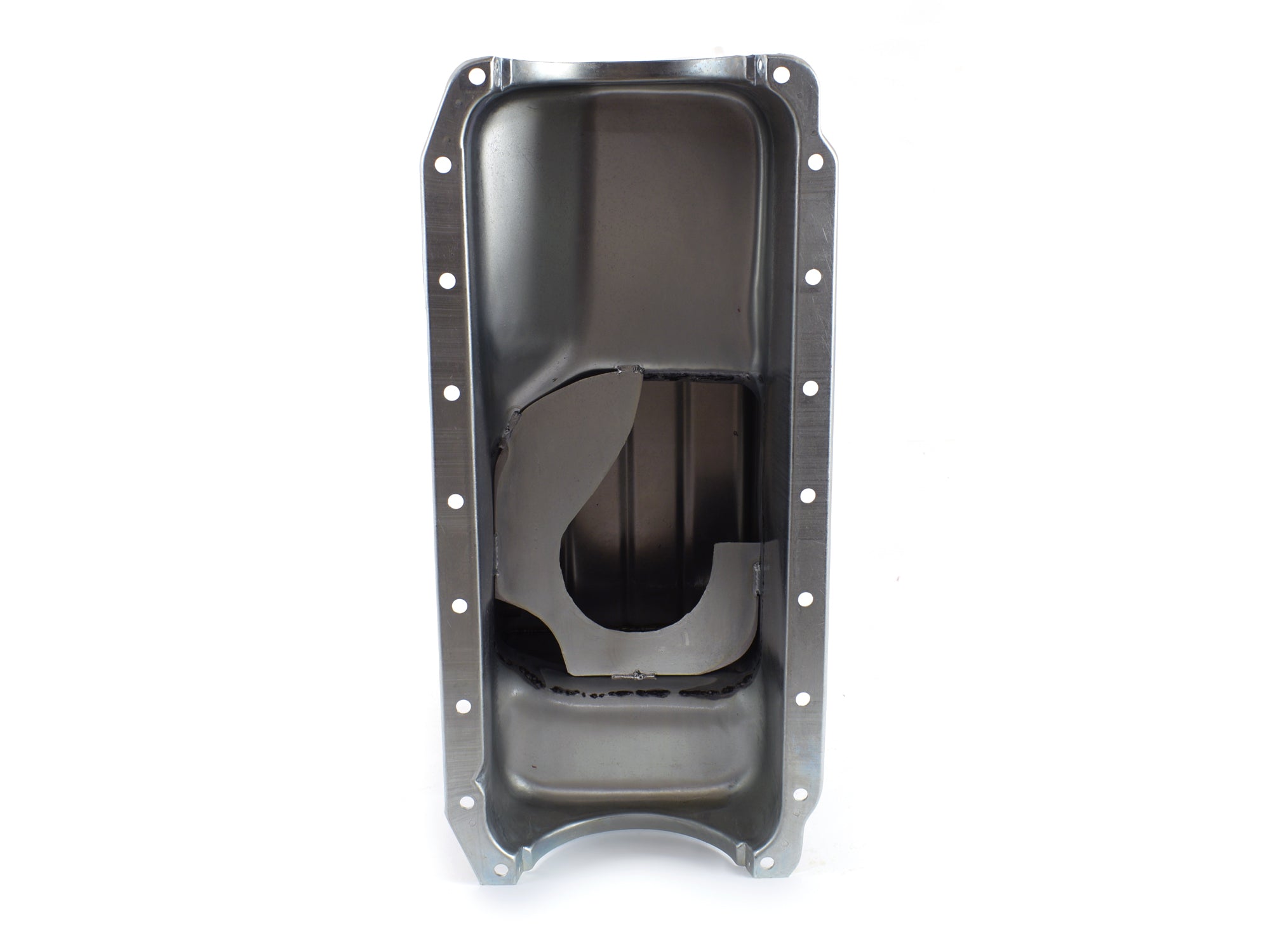

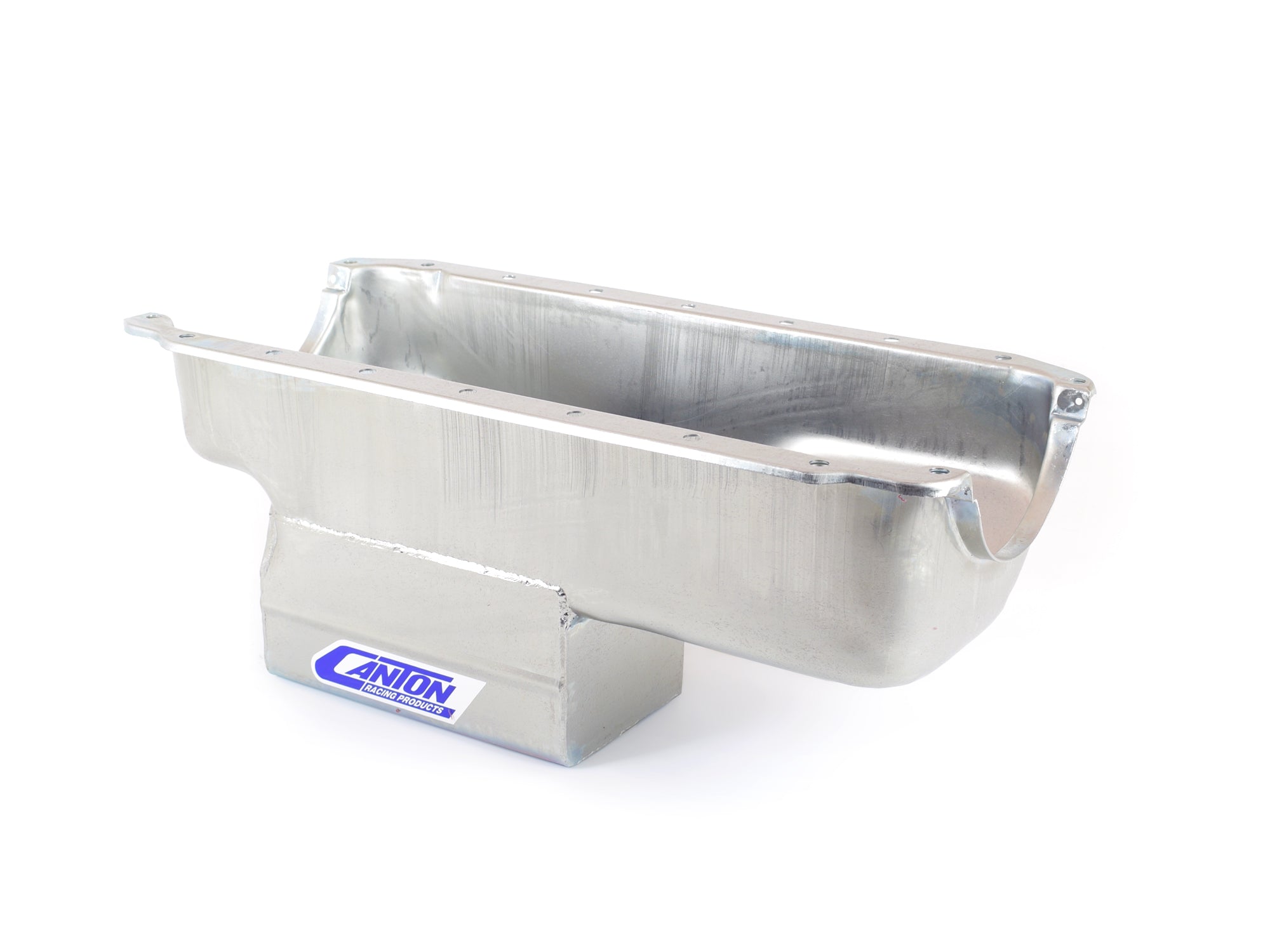

This street / strip oil pan for SM. Block Chrysler engines 273, 318, & 340, fits most production chassis. It features a deep sump and built in slosh baffle for oil control and a magnetic drain plug. Sump is 9? deep and provides a 7-quart system capacity.
- High Capacity
- Slosh Baffle
Attributes:
- Brand Name: Canton
- GTIN: 00887753713889
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Feature 1: High Capacity
- Feature 2: Slosh Baffle
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-901 - Mopar Pickup for 15-900/15-910 pans
- Stoke: 4.0 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26.5 x 13.25 x 10.25 inches
- Weight: 11.76 POUNDS
