Description

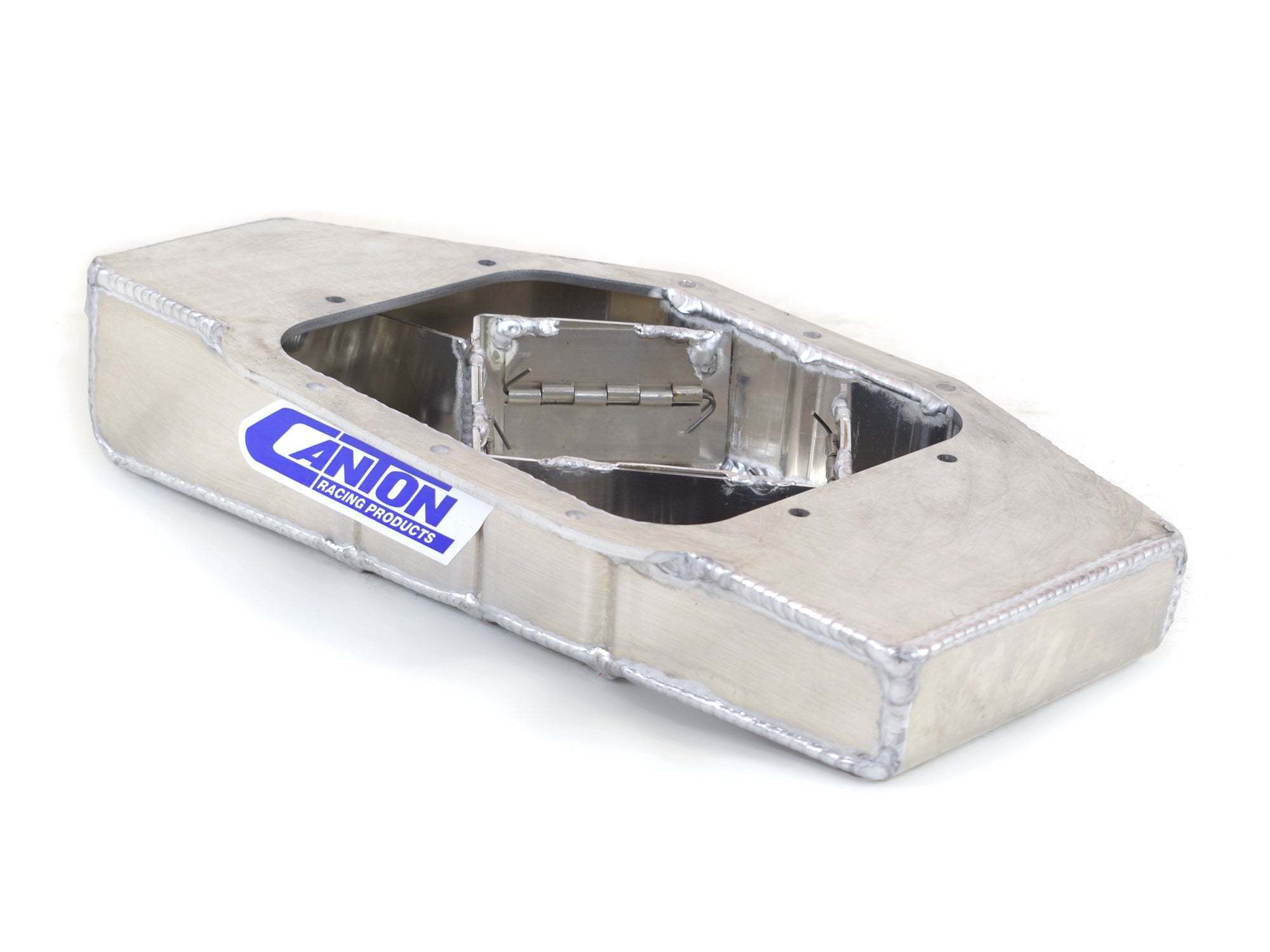

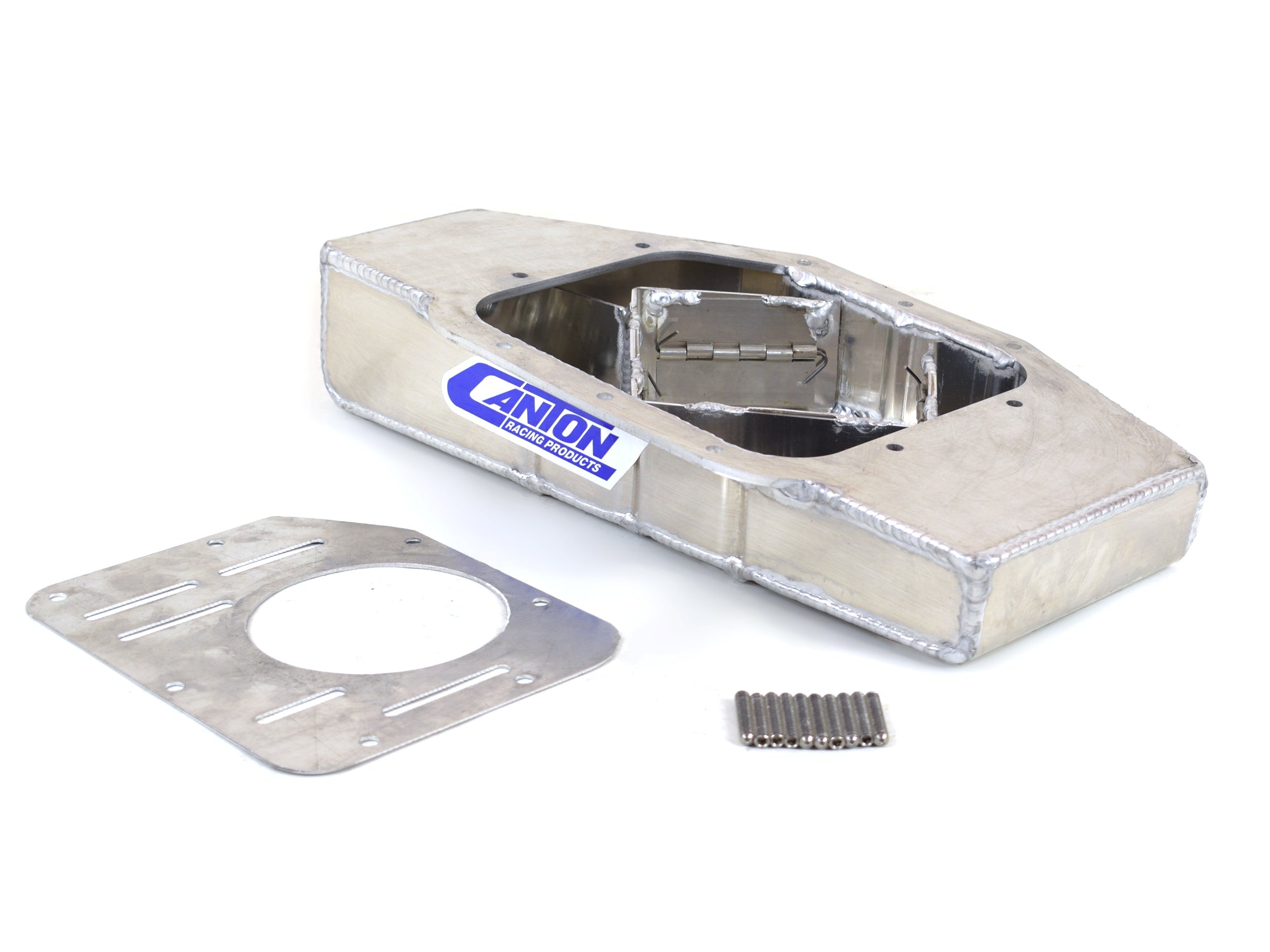

This fabricated aluminum Nissan Sr20 oil pan is the best way to upgrade the oiling system on your Nissan Sr20 motor. The pan includes our diamond shape road race baffle along with an upgrade anti slosh/windage tray to improve oil control. extra capacity is also provided by the extended sides and a 1/2" NPT bung for the turbo drain back.
- Road Race Trap Door Baffle Assembly
- .190 Aluminum Mount Rail
- Magnetic Drain Plug
- Increased Capacity of +1.5 qt (4.75 qt total)
- Upgraded Windage/Anti-Slosh Baffle
- Mounting Hardware Included
- 1/2" NPT Temp Bung
Attributes:
- Brand Name: Canton
- GTIN: 00887753713933
- Baffled: Yes
- Capacity: 1.5 Quart Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: Nissan Sr20
- Feature 1: .190 Aluminum Mounting Rail
- Feature 2: Diamond Shape Road Race Baffle
- Feature 3: Anti-Slosh Baffle to Replace Plastic OE Piece
- Feature 4: 1/2 NPT Turbo Drain / Temp Sensor Bung
- Feature 5: Includes Stainless Steel Mounting Hardware
- Feature 6: Magnetic Drain Plug
- Finish: Raw Aluminum
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: .100 Aluminum
- Pickup Included: No
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 11 x 22 x 8 inches
- Weight: 6.5 POUNDS
