Description

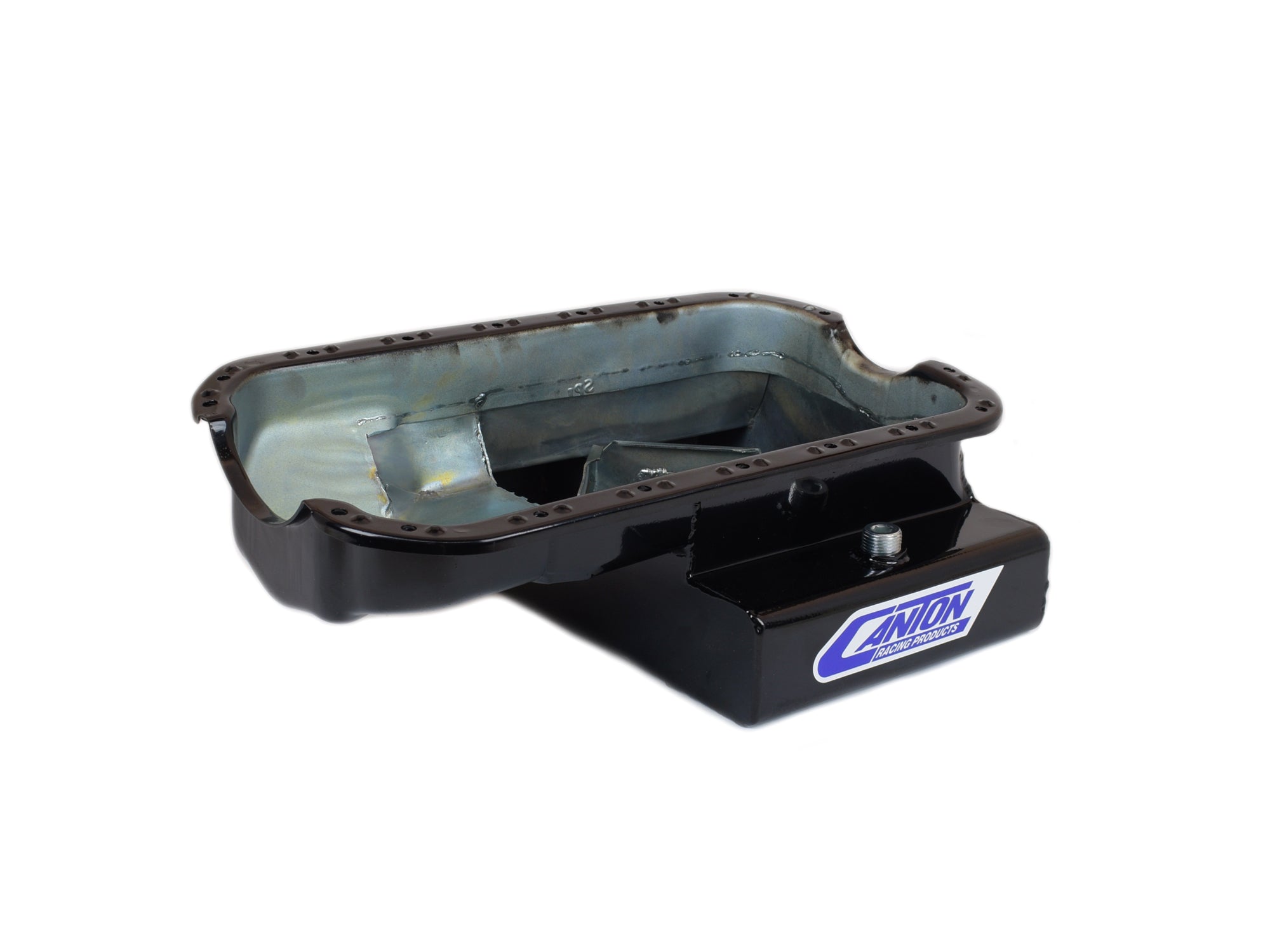

This black powder coat steel "T"-sump Honda D16A oil pan is designed for use in performance street, drag racing and road racing applications. The stock depth, 12-1/2" wide by 8-1/2" long sump has a 5 quart system capacity. Pan works with most aftermarket and stock exhausts. This pan requires our 15-961 pickup.
- 5 qt System Capacity

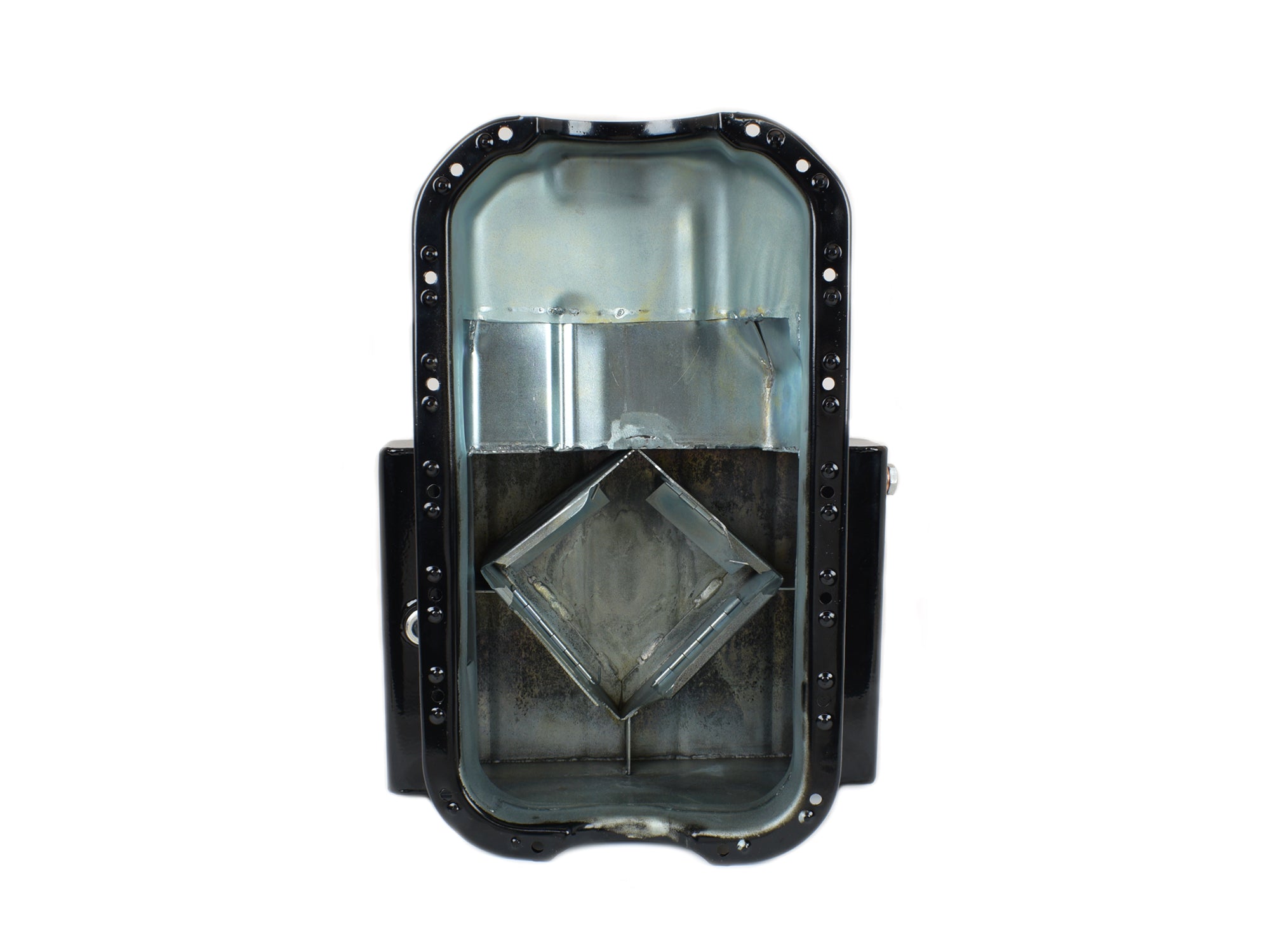

- Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- 1/2" NPT Temperature Bung
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753713964
- Baffled: Yes
- Capacity: 5 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Feature 1: 5 qt System Capacity
- Feature 2: Diamond Shape Road Race Baffle Assembly With Four Trap Doors
- Feature 3: 1/2" NPT Temperature Bung
- Feature 4: Magnetic Drain Plug
- Feature 5: Black Powdercoat
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 15-961 - Pickup for Honda Late D16A Oil Pump
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 12 POUNDS
