Description

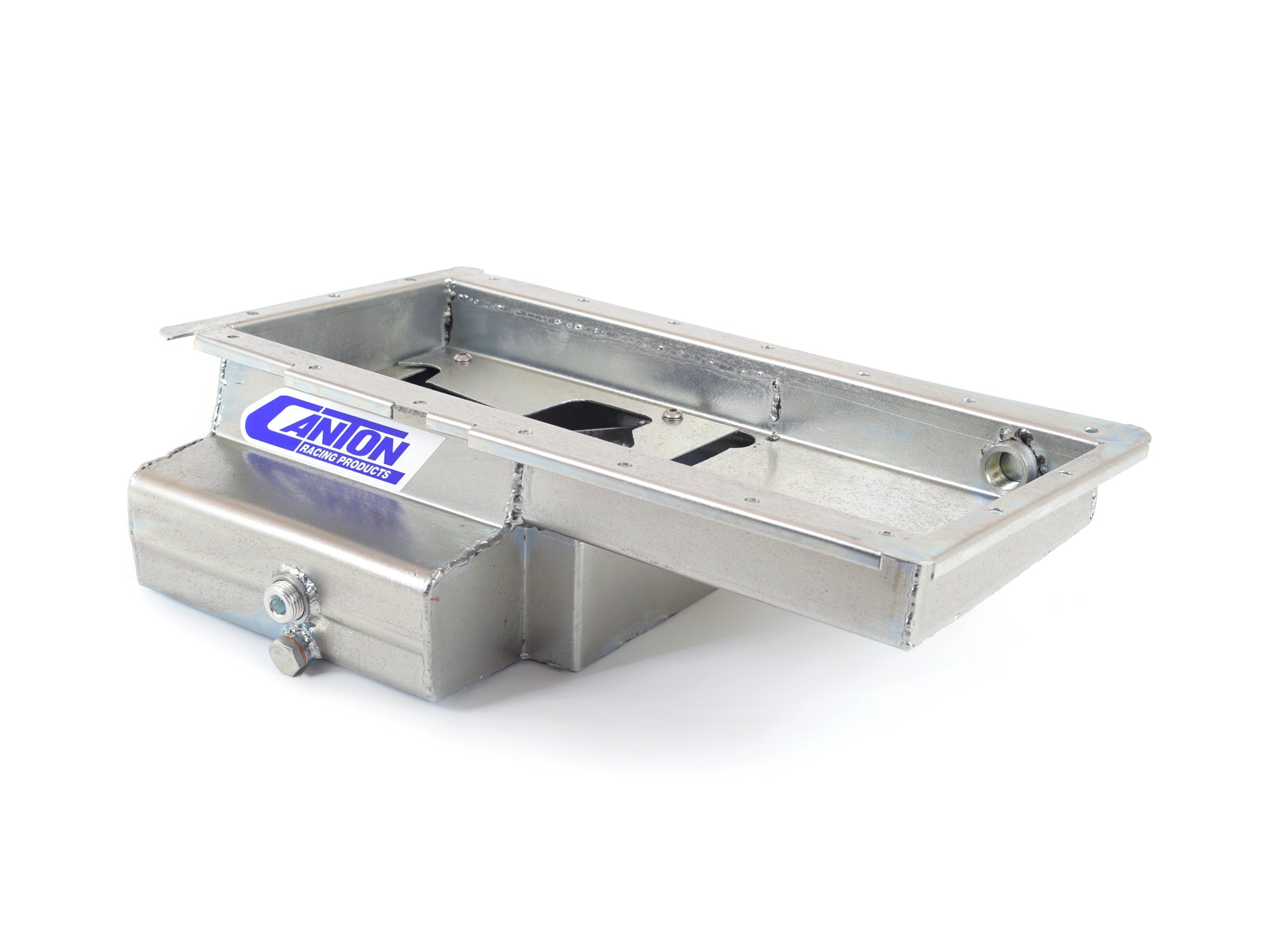

This steel ?L?-sump B-Series Honda oil pan is for Acura B18A, Honda B17A, B18B, B18C, & B16A. (works on engines with and without factory girdle). For performance street, drag or road race applications. The stock depth, 10-1/4" Wide and 9-1/4" long, has a 5 qt. system capacity. This pan requires an OEM pickup.
- 5 qt System Capacity

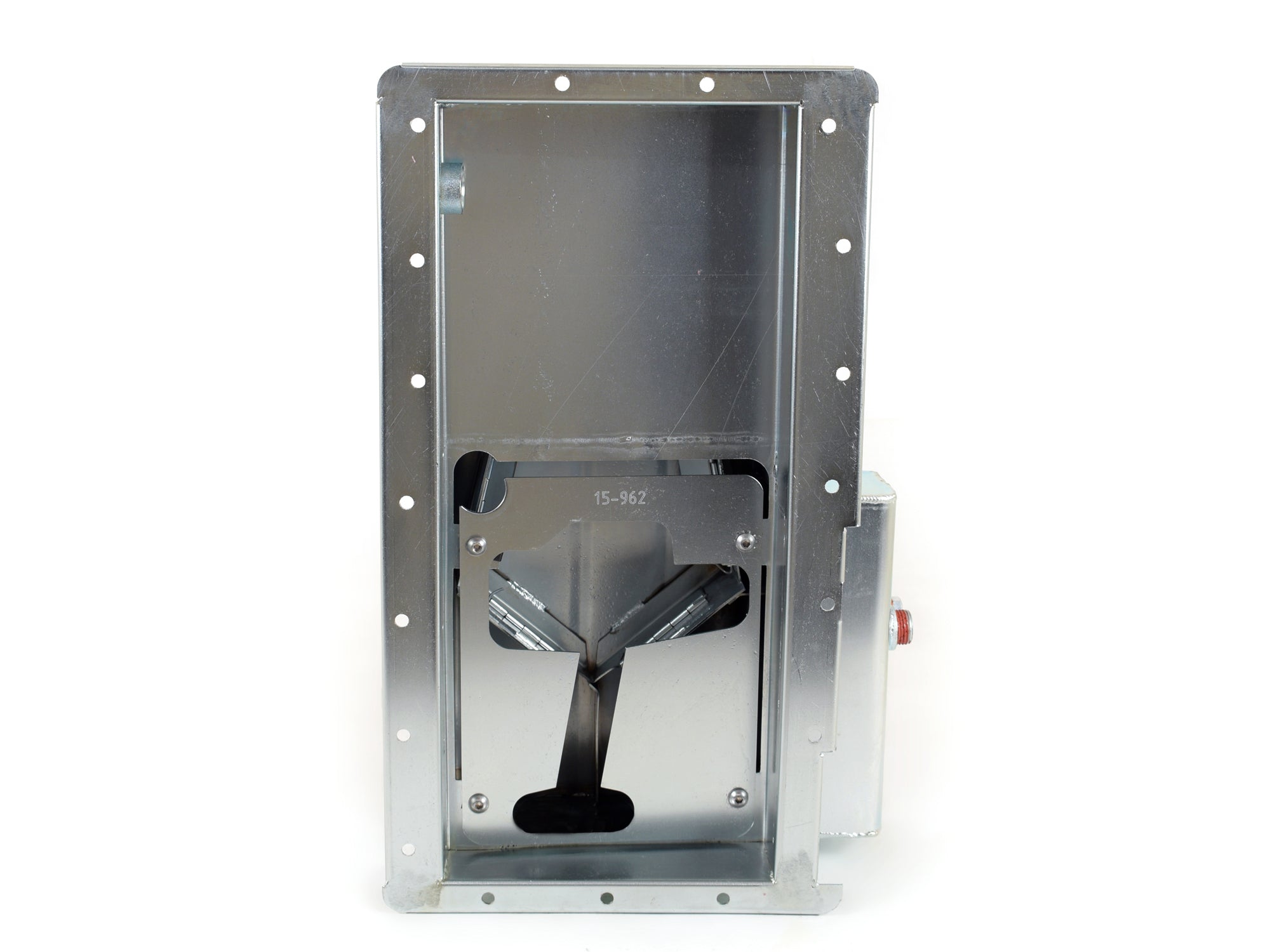

- Road Race Trap Door Baffle Assembly
- 1/2" NPT Temperature Bung
- 1/2" Turbo Bung
- Magnetic Drain Plug
- Will Not Work With OEM Windage Tray
Attributes:
- Brand Name: Canton
- GTIN: 00887753713988
- Baffled: Yes
- Capacity: 5 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Feature 1: 5 qt System Capacity
- Feature 2: Road Race Trap Door Baffle Assembly
- Feature 3: 1/2" NPT Temperature Bung
- Feature 4: 1/2" Turbo Bung
- Feature 5: Magnetic Drain Plug
- Feature 6: Will Not Work With OEM Windage Tray
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 16 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 20-912 - Honda B-Series Pro Windage Tray
- Stoke: 3.5 inches
- Sump Depth: 4.25 inches
- Sump Width: 10.125
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23 x 12 x 9 inches
- Weight: 12 POUNDS
