Description

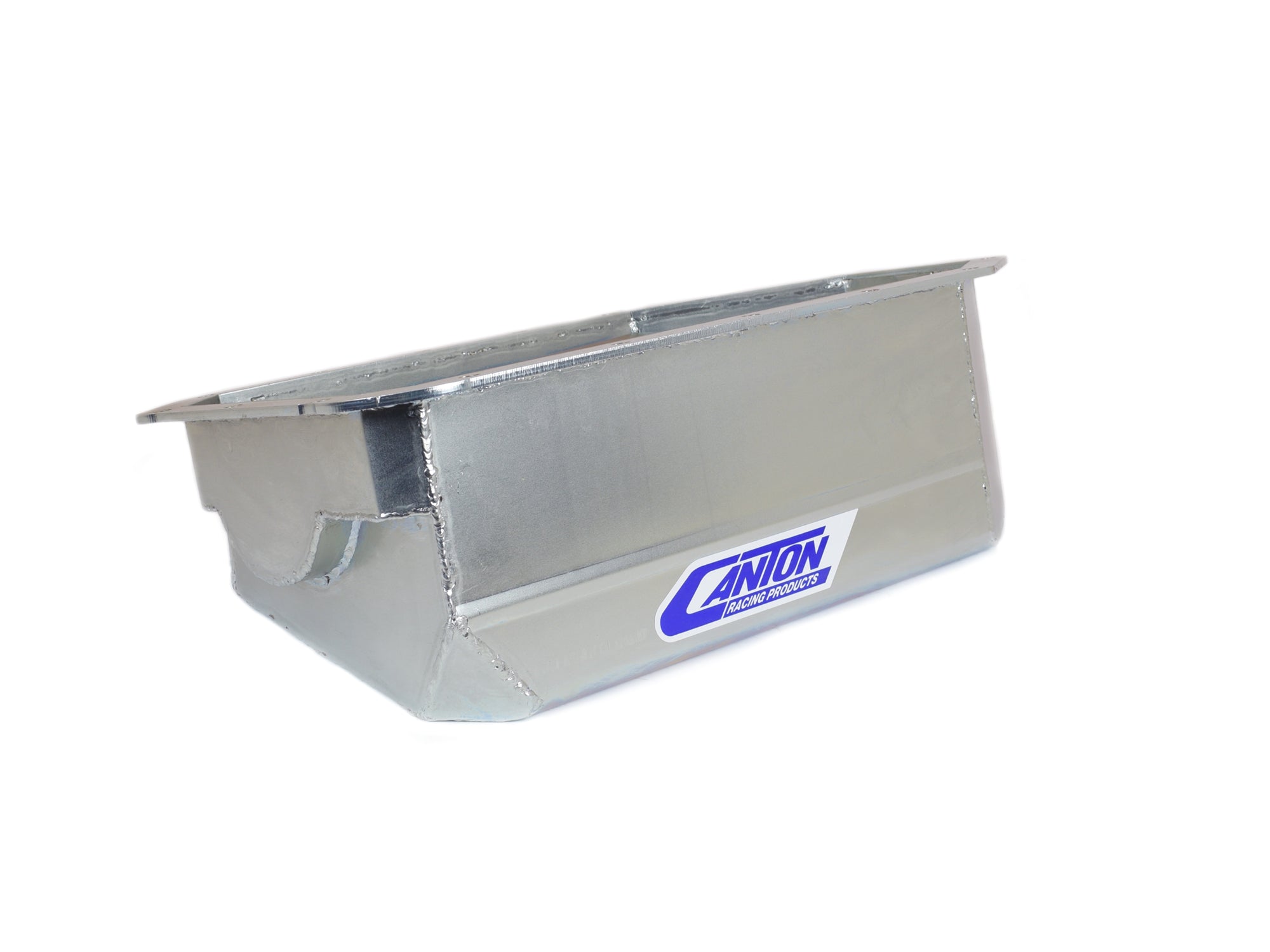

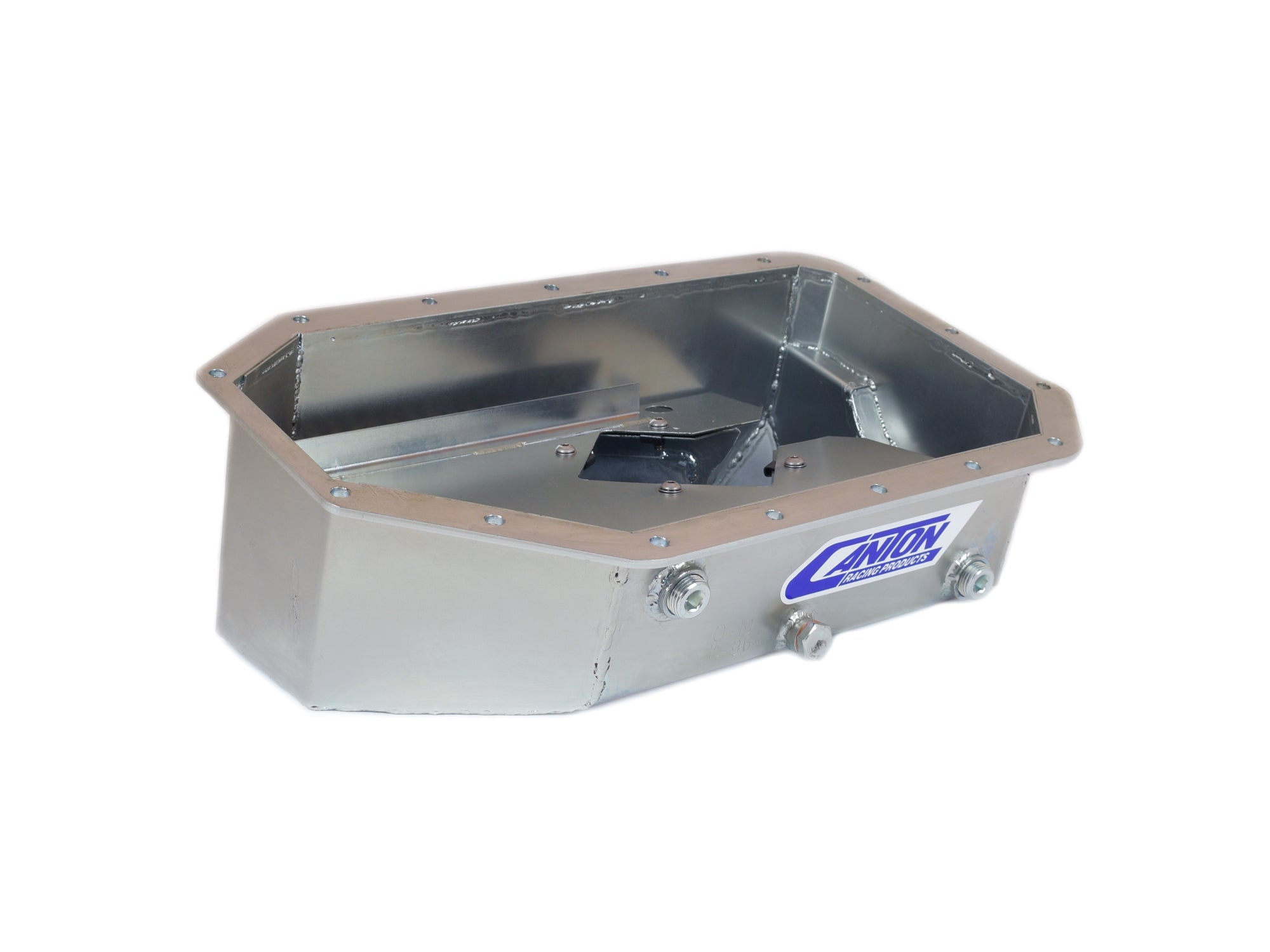

This oil pan is the perfect solution for Honda K series motors. Notched to fit most production chassis this pan provides superior oiling control over the stock pan. This pan may require some cross member clearance to install in newer chassis cars.
- 3/16" Laser Cut Rail
- 6.5 qt System Capacity (1 qt Increase)
- Windage/Anti-Slosh Baffle
- Diamond Shape Road Race Baffle Trap Doors
- 1/2" NPT Temp Sensor Bung
- 1/2" Turbo Return Bung
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753714008
- Baffled: Yes
- Capacity: 6.5 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Feature 1: 3/16" Laser Cut Rail
- Feature 2: 6.5 qt System Capacity (1 qt Increase)
- Feature 3: Windage/Anti-Slosh Baffle
- Feature 4: Diamond Shape Road Race Baffle Trap Doors
- Feature 5: 1/2" NPT Temp Sensor Bung
- Feature 6: 1/2" Turbo Return Bung
- Feature 7: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 16 Gauge Steel
- Pickup Included: No
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23 x 12 x 10 inches
- Weight: 12 POUNDS
