Description

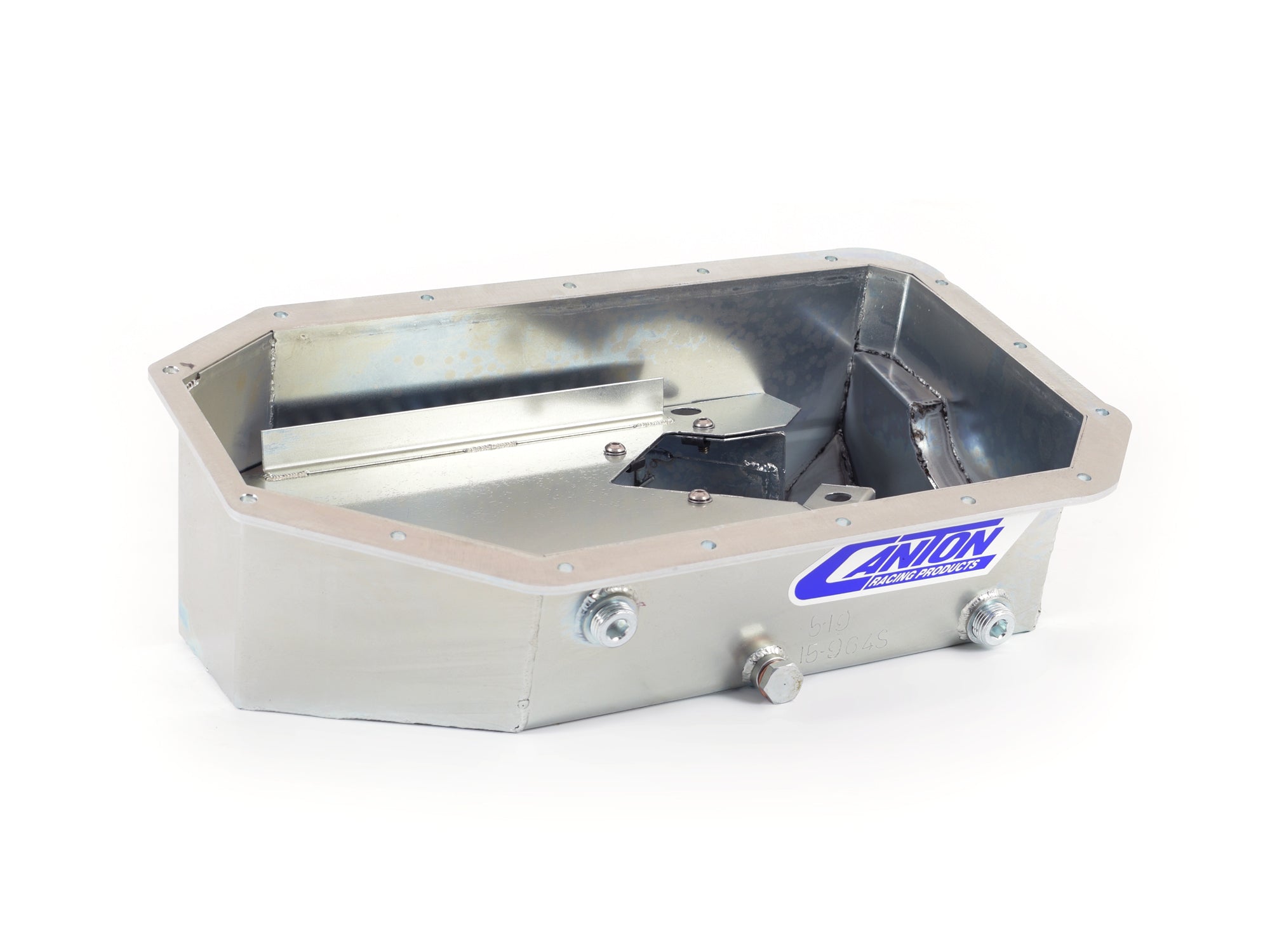

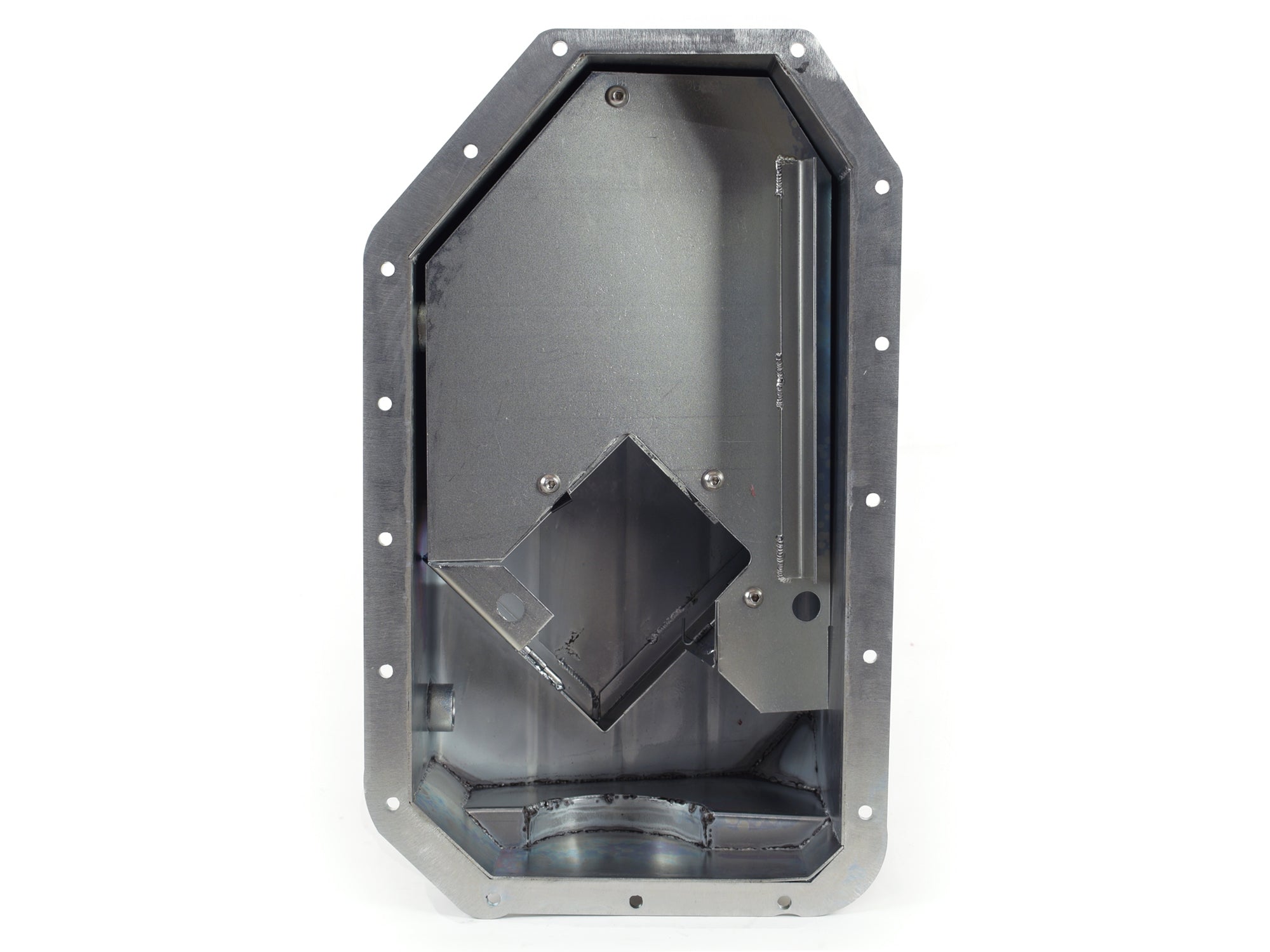

This oil pan is the perfect solution for Honda K series motors using the ERL s2000 oil pump. Notched to fit most production chassis this pan provides superior oiling control over the stock pan. This pan may require some cross member clearance to install in newer chassis cars.
- 8 qt System Capacity
- Crank Scraper
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753714022
- Baffled: Yes
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: Honda K Series
- Feature 1: 3/16 Steel Laser Cut Pan Rail
- Feature 2: Diamond Shape Road Race Baffle
- Feature 3: Removable Windage/Anti-Slosh Baffle
- Feature 4: 1/2 NPT Temperature Bung
- Feature 5: 1/2 NPT Turbo Drain Bung
- Feature 6: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: Steel
- Pickup Included: No
- Windage Tray Included: No
Extended Information:
- Country of Origin: United States
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24 x 12 x 9 inches
- Weight: 14.5 POUNDS
