Description

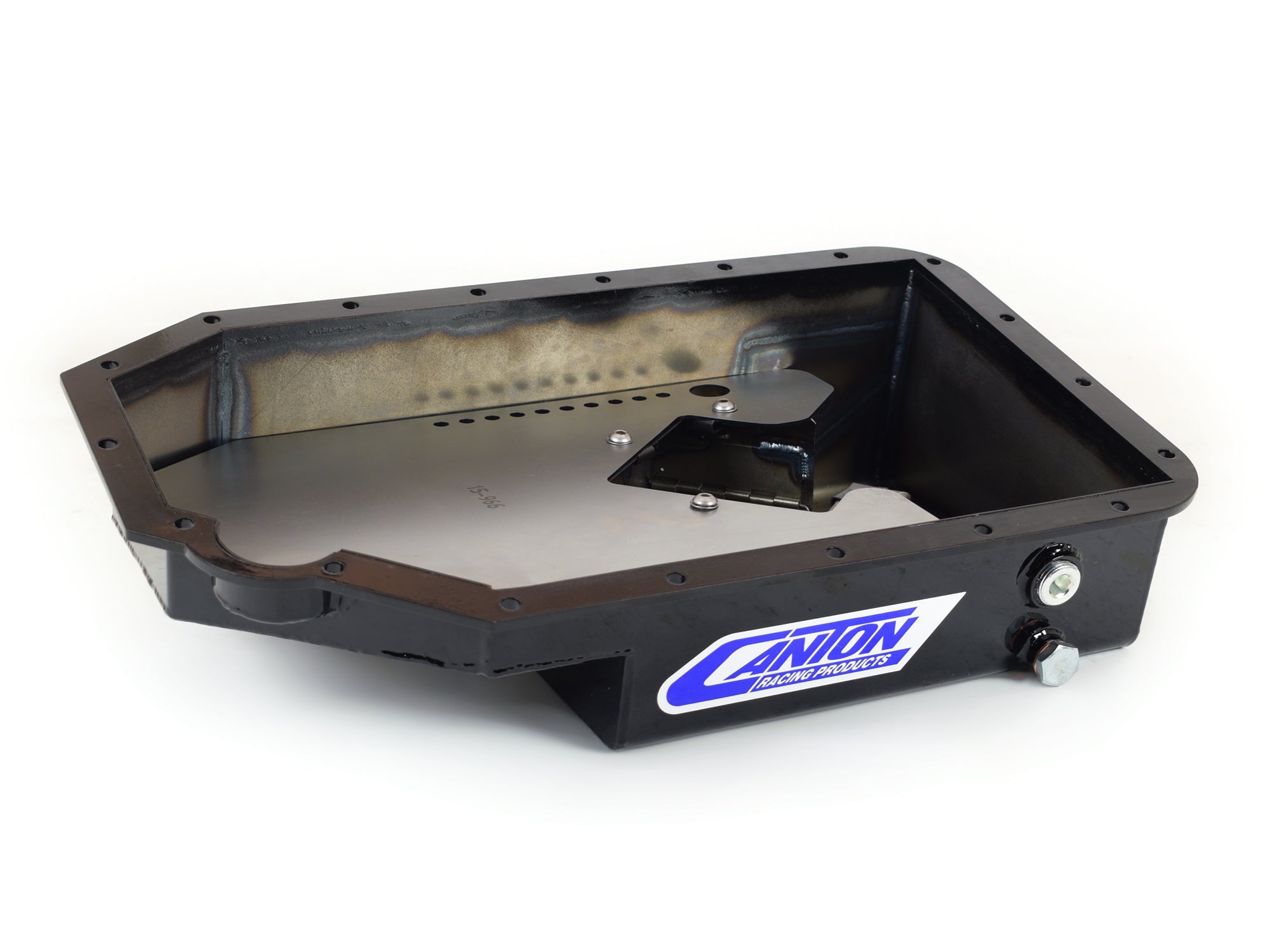

This oil pan is the perfect solution for any s2000 that will see hard acceleration, cornering and braking. This pan is designed with an additional qt capacity over the stock pan as well as a diamond shape trap door baffle and anti-slosh baffle to control the oil and prevent starvation. The 3/16" laser cut rail provides a great sealing surface and a solid feel. Also included with the pan is an aluminum flywheel cover.
- 3/16" Laser cut Rail
- Increased Capacity System Capacity (1qt increase)
- Windage/Anti-Slosh Baffle

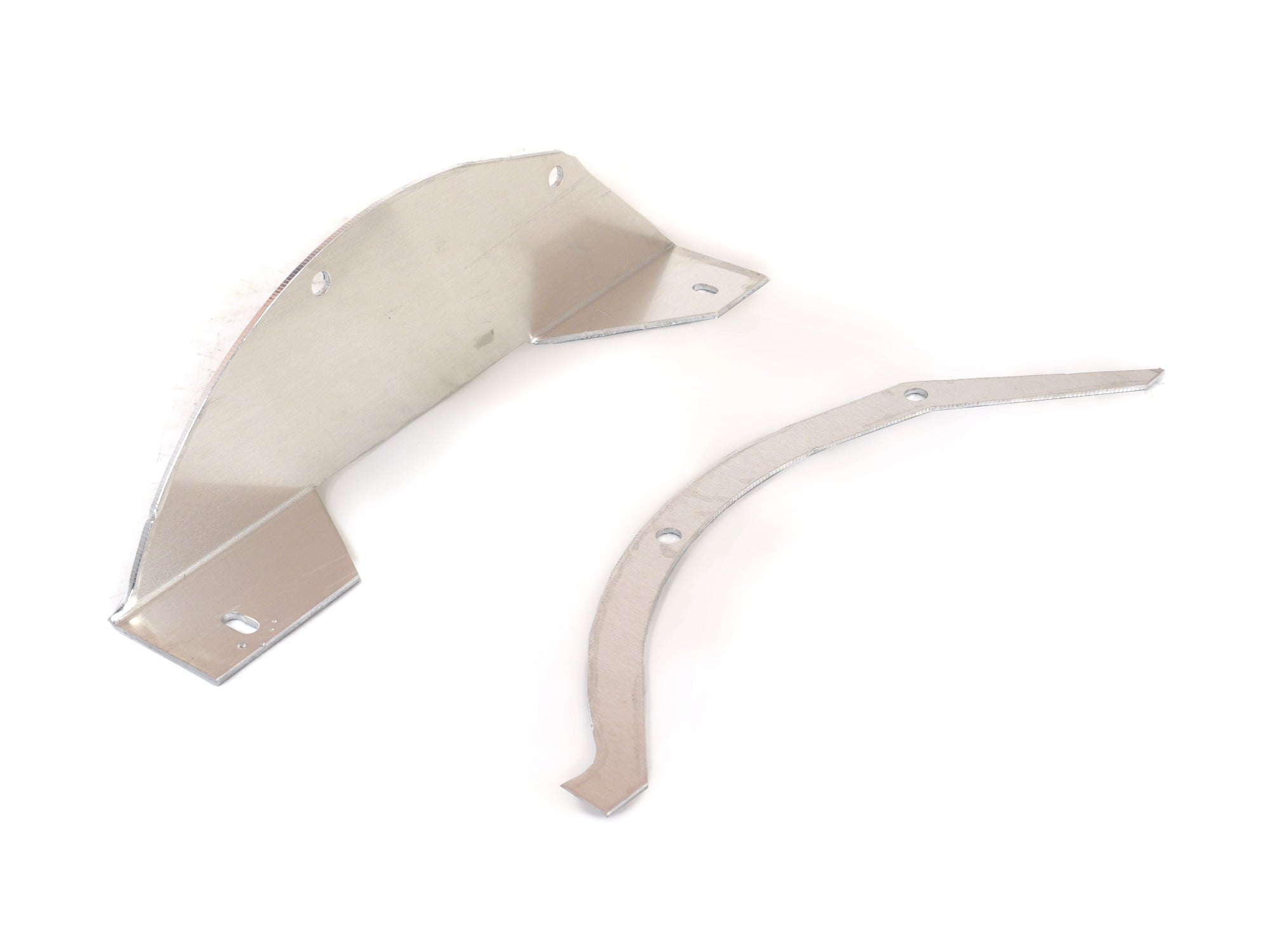

- Includes Aluminum Flywheel Cover
- Road Race Trap Door
- 1/2" NPT Temp Sensor Bung
- 1/2" Turbo Return Bung
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753714046
- Baffled: Yes
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Engine: Honda F Series
- Feature 1: 3/16 Steel Laser Cut Pan Rail
- Feature 2: Diamond Shape Road Race Baffle
- Feature 3: Removable Windage/Anti-Slosh Baffle
- Feature 4: 1/2 NPT Temperature Bung
- Feature 5: 1/2 NPT Turbo Drain Bung
- Feature 6: Includes an Aluminum Flywheel Cover
- Feature 7: Magnetic Drain Plug
- Finish: Silver Plating
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: Steel
- Pickup Included: No
- Recommended Accessory 1: 22-370 Honda S2000 F Series Oil Pan Hardware Kit
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : Released
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 24 x 12 x 9 inches
- Weight: 16 POUNDS
