Description

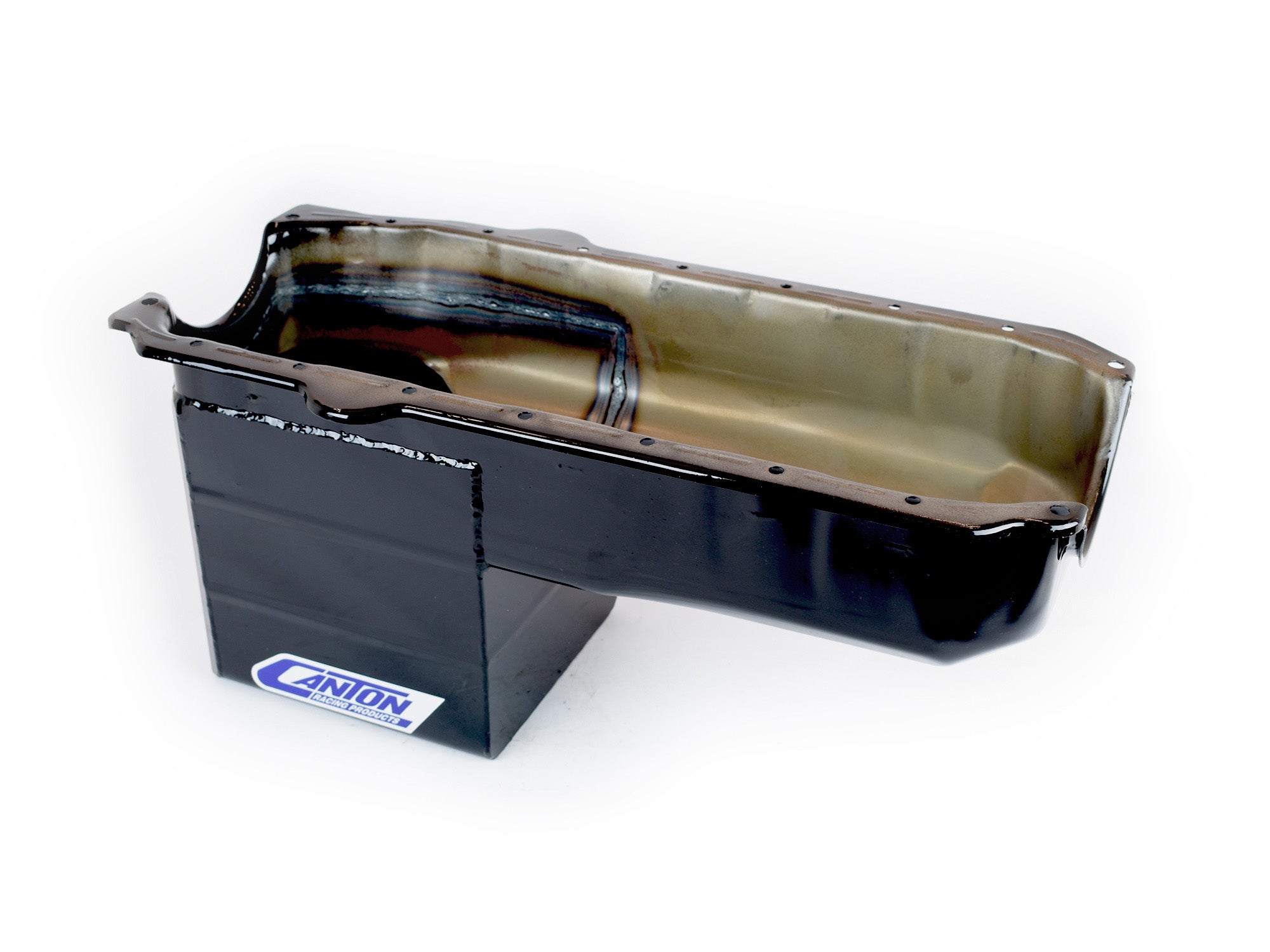

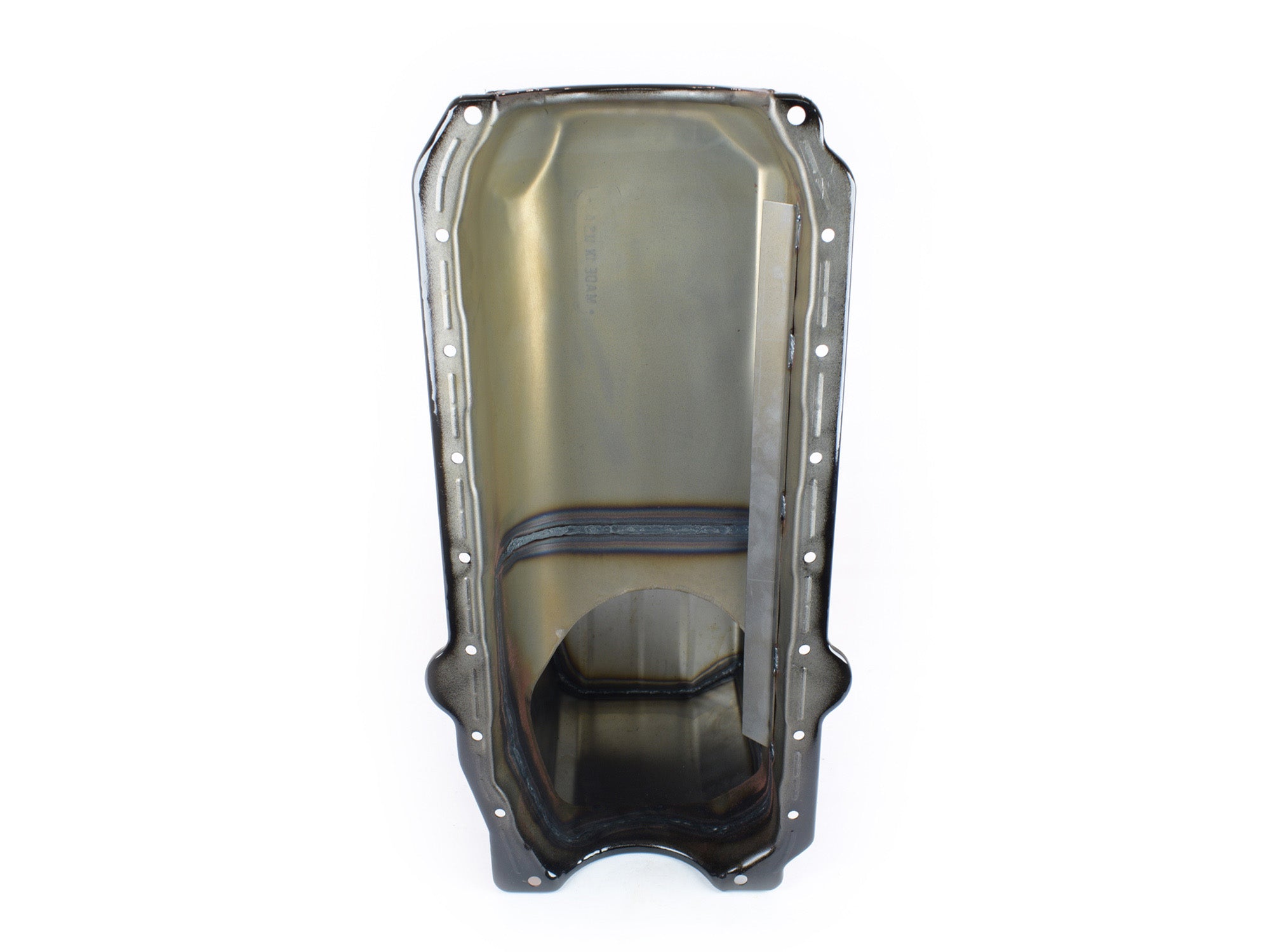

This oil pan is designed for '85 and earlier small block Chevy's in 67-01 Chevy 4X4 chassis. Its 10" deep sump design provides superior oil control and an 8 quart system capacity. This pan requires a M210S or M211S pickup.
- 8 qt System Capacity
- Crank Scraper
- Slosh Baffle
- Magnetic Drain Plug
- Provision for 1/4" NPT Pan Mounted Dipstick
- Gloss Black Powder Coat Finish
Attributes:
- Brand Name: Canton
- GTIN: 00887753714053
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 8 qt System Capacity
- Feature 2: Crank Scraper
- Feature 3: Slosh Baffle
- Feature 4: Magnetic Drain Plug
- Feature 5: Provision for 1/4" NPT Pan Mounted Dipstick
- Feature 6: Gloss Black Powder Coat Finish
- Finish: Black Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: Steel
- Pickup Included: No
- Recommended Accessory 1: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 2: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 88-100 - SBC Pre ?85 Oil Pan Gasket
- Stoke: 3.875 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26.5 x 13.25 x 10.25 inches
- Weight: 12.6 POUNDS
