Description

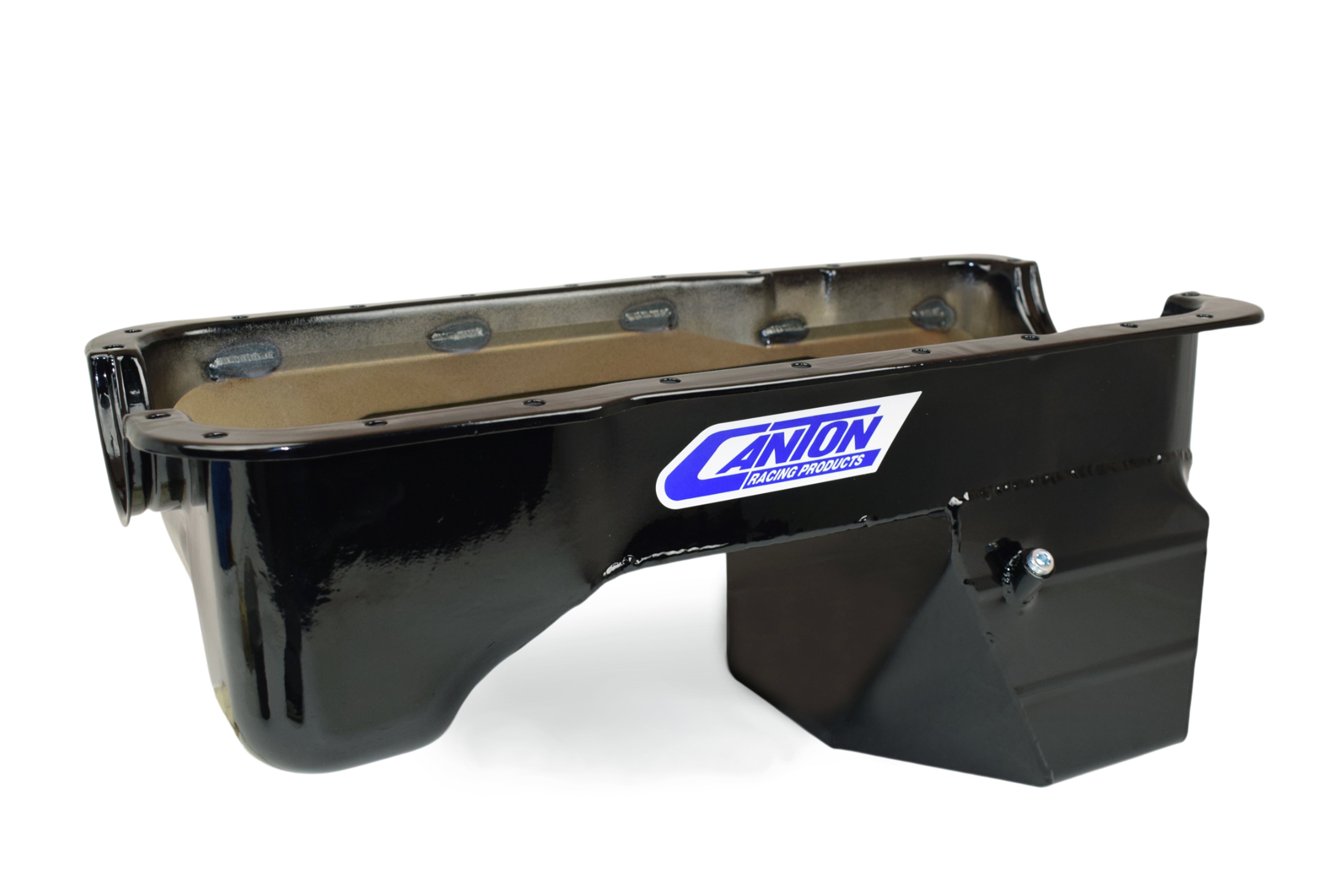

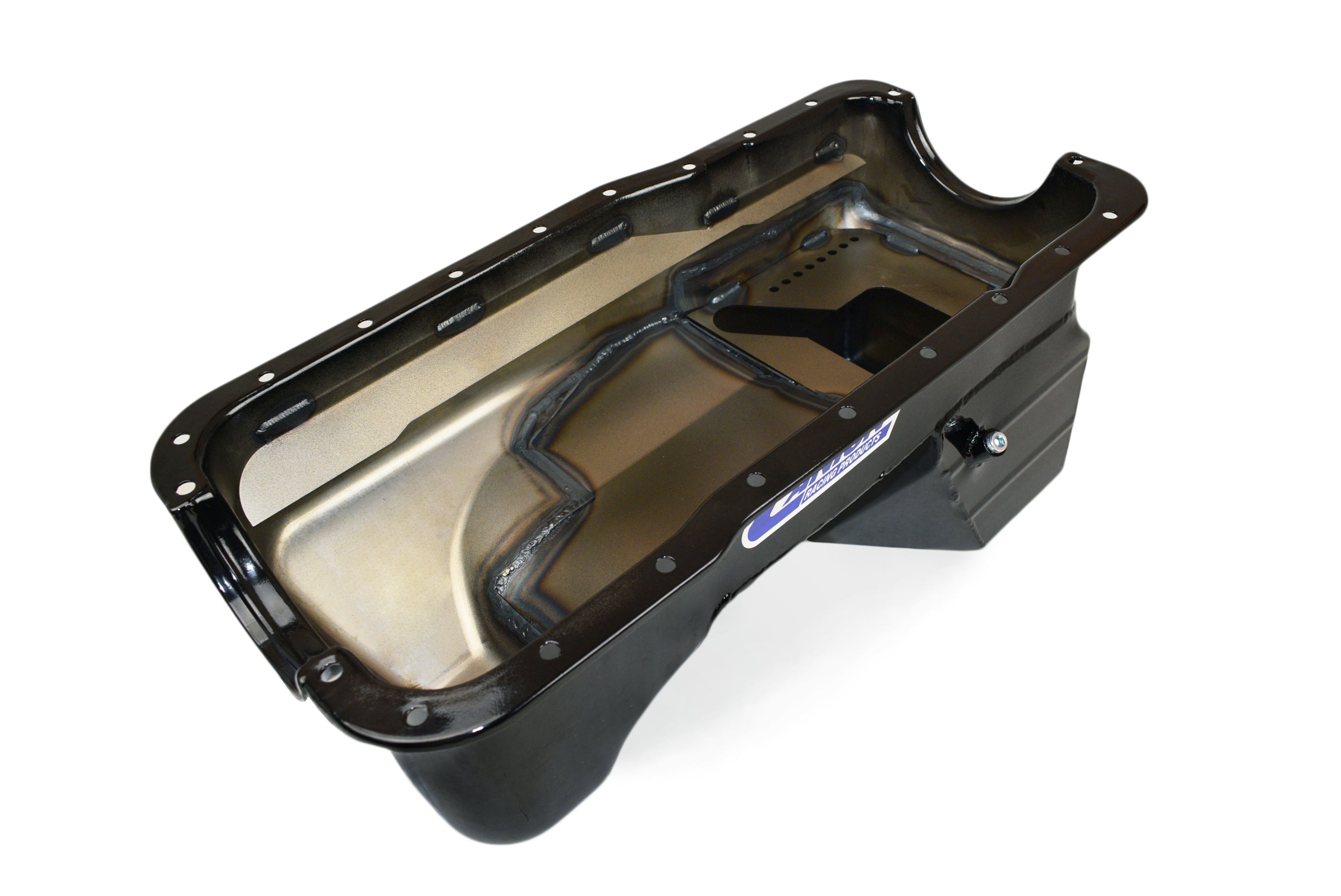

This deep sump oil pan for 302 Fords is designed for 1966?-1977 Broncos. It has an 10? deep sump for increased oil control and capacity and provides a 7 quart system capacity. This pan requires our 16-621 pickup.
- 7 qt System Capacity
- Crank Scraper
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Two Magnetic Drain Plugs
- Gloss Black Powder Coat Finish
Attributes:
- Brand Name: Canton
- GTIN: 00887753714145
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Crank Scraper
- Feature 3: Slosh Baffle
- Feature 4: Provision For Our Pan Mounted Dipstick
- Feature 5: Two Magnetic Drain Plugs
- Feature 6: Gloss Black Powder Coat Finish
- Finish: Black Gloss Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 14 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 16-621 - Pickup For 302 Rear Sump 16-620 Bronco Pan
- Recommended Accessory 2: 20-950 - Main Cap Pickup Stud
- Recommended Accessory 3: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 5: 88-602 - Small Block Ford 302 One Piece Oil Pan Gasket
- Stoke: 3.4 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26.5 x 13.25 x 10.25 inches
- Weight: 14.4 POUNDS
