Description

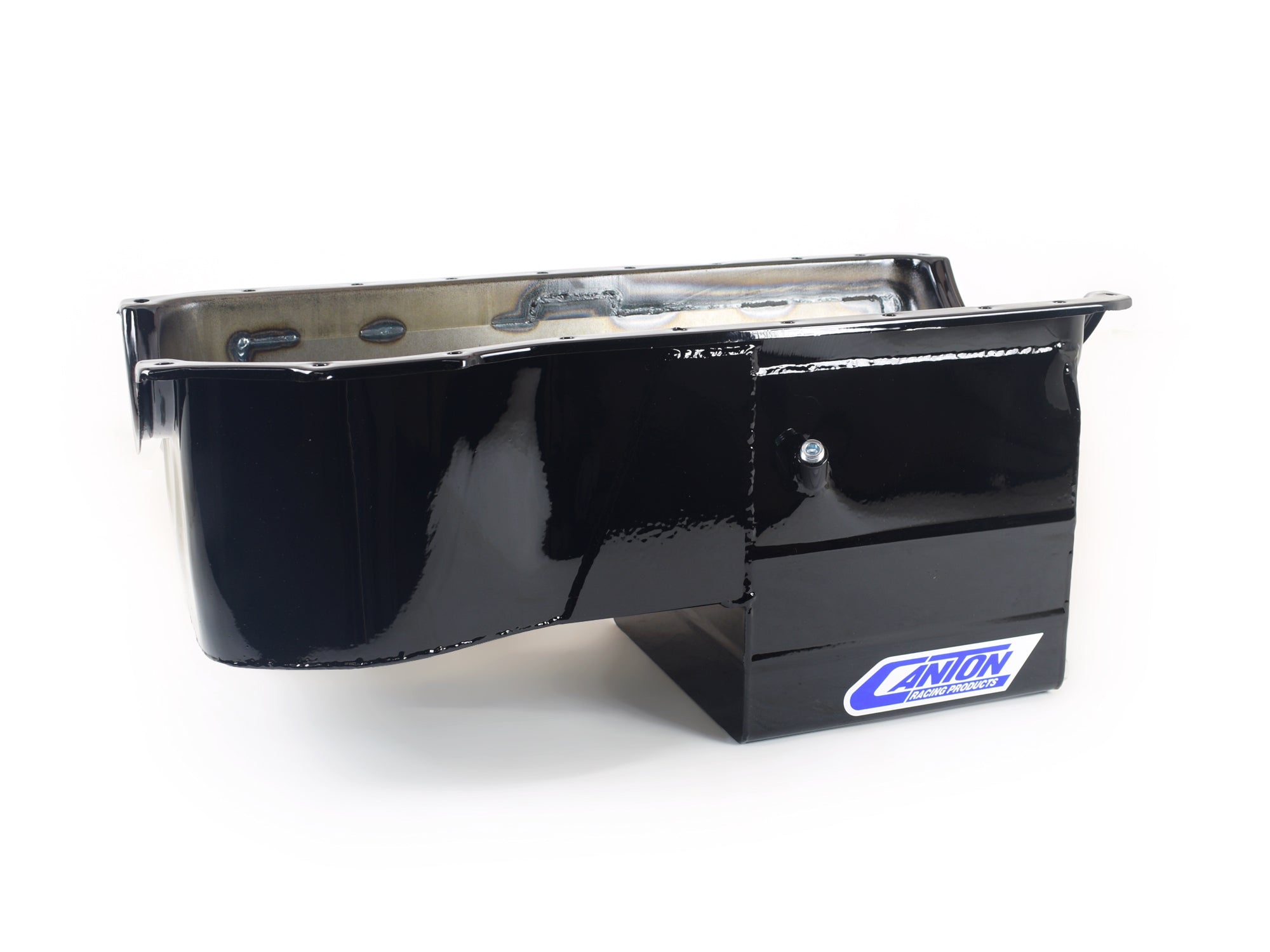

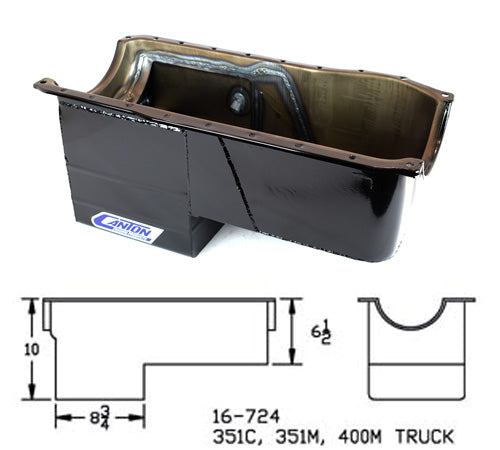

This heavy duty truck pan is designed for Ford 4WD trucks and vans with 351C, 351M, or 400M engines. It is 10" deep, 9" long for an 8 quart system capacity. This pan requires our 16-725 pickup.
- Crank Scraper
- Slosh Baffle
- Provision for Pan Mounted Dipstick
- 14 ga. Steel Sump Construction
- Made In USA
- Tig Welded
Attributes:
- Brand Name: Canton
- GTIN: 00887753714206
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: Crank Scraper
- Feature 2: Slosh Baffle
- Feature 3: Provision for Pan Mounted Dipstick
- Feature 4: 14 ga. Steel Sump Construction
- Feature 5: Made In USA
- Feature 6: Tig Welded
- Finish: Black Gloss Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 14 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 16-725 - Pickup
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 88-700 ? Small Block Ford 351C Four Piece Oil Pan Gasket
- Stoke: 4.0 inches
- Sump Depth: 10 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 13 x 13 inches
- Weight: 14 POUNDS
