Description

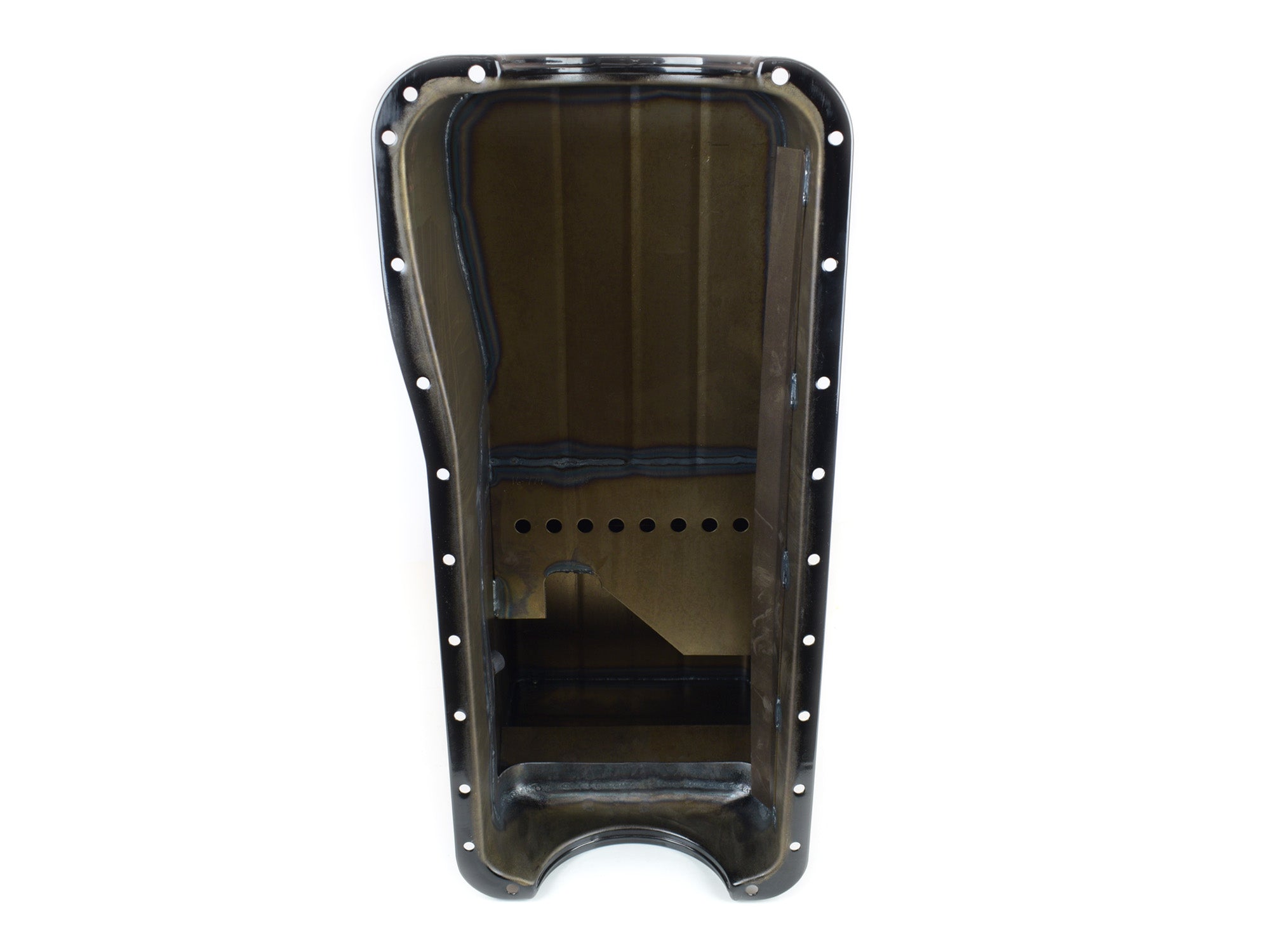

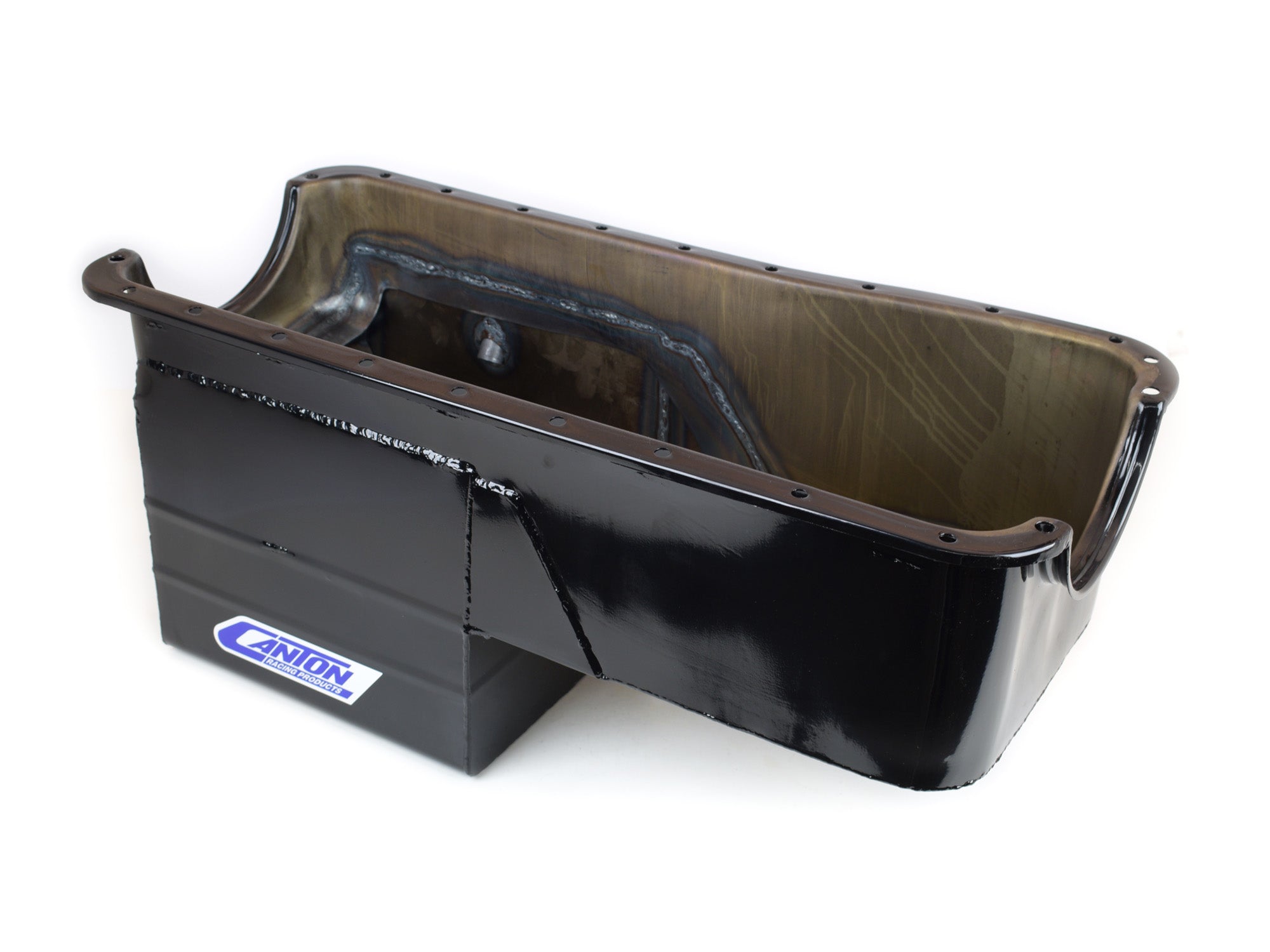

This rear sump truck pan is for all Ford 4WD trucks and vans with 429-460 blocks. It has 10-3/4" deep by 10-1/2" long sump with an 8 quart system capacity. Will not clear crossover exhaust. Designed for use with long tube headers. This pan requires our 16-775 pickup.
- Designed to be used in Ford 4WD trucks and vans
- Trap Door Baffle
- Slosh Baffle
- Provision for Pan Mounted Dipstick
- 14 ga. Steel Sump Construction
- Made In USA
- Tig Welded
Attributes:
- Brand Name: Canton
- GTIN: 00887753714220
- Baffled: Yes
- Capacity: 8 Quart System Capacity
- Crank Scraper Included: Yes
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: Designed to be used in Ford 4WD trucks and vans
- Feature 2: Trap Door Baffle
- Feature 3: Slosh Baffle
- Feature 4: Provision for Pan Mounted Dipstick
- Feature 5: 14 ga. Steel Sump Construction
- Feature 6: Made In USA
- Feature 7: Tig Welded
- Finish: Black Gloss Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 14 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 16-775 - Pickup with M-84D or M-84DHV Oil Pump
- Recommended Accessory 2: 20-956 - Main Cap Pickup Stud
- Recommended Accessory 3: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 5: 88-750 ? Big Block Ford 429-460 Four Piece Oil Pan Gasket
- Stoke: 4.5 inches
- Sump Depth: 10.75 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 13 x 13 inches
- Weight: 14 POUNDS
