Description

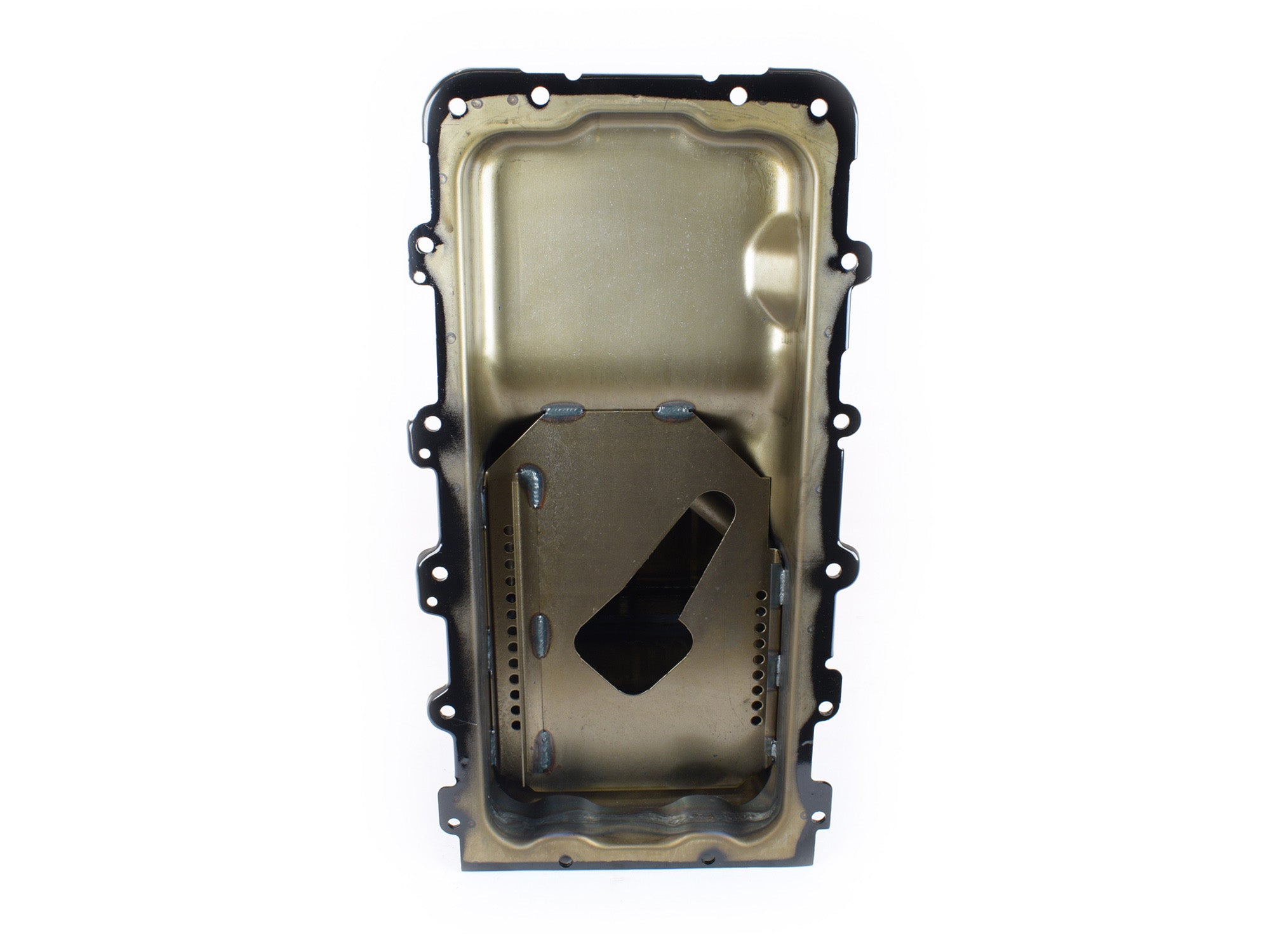

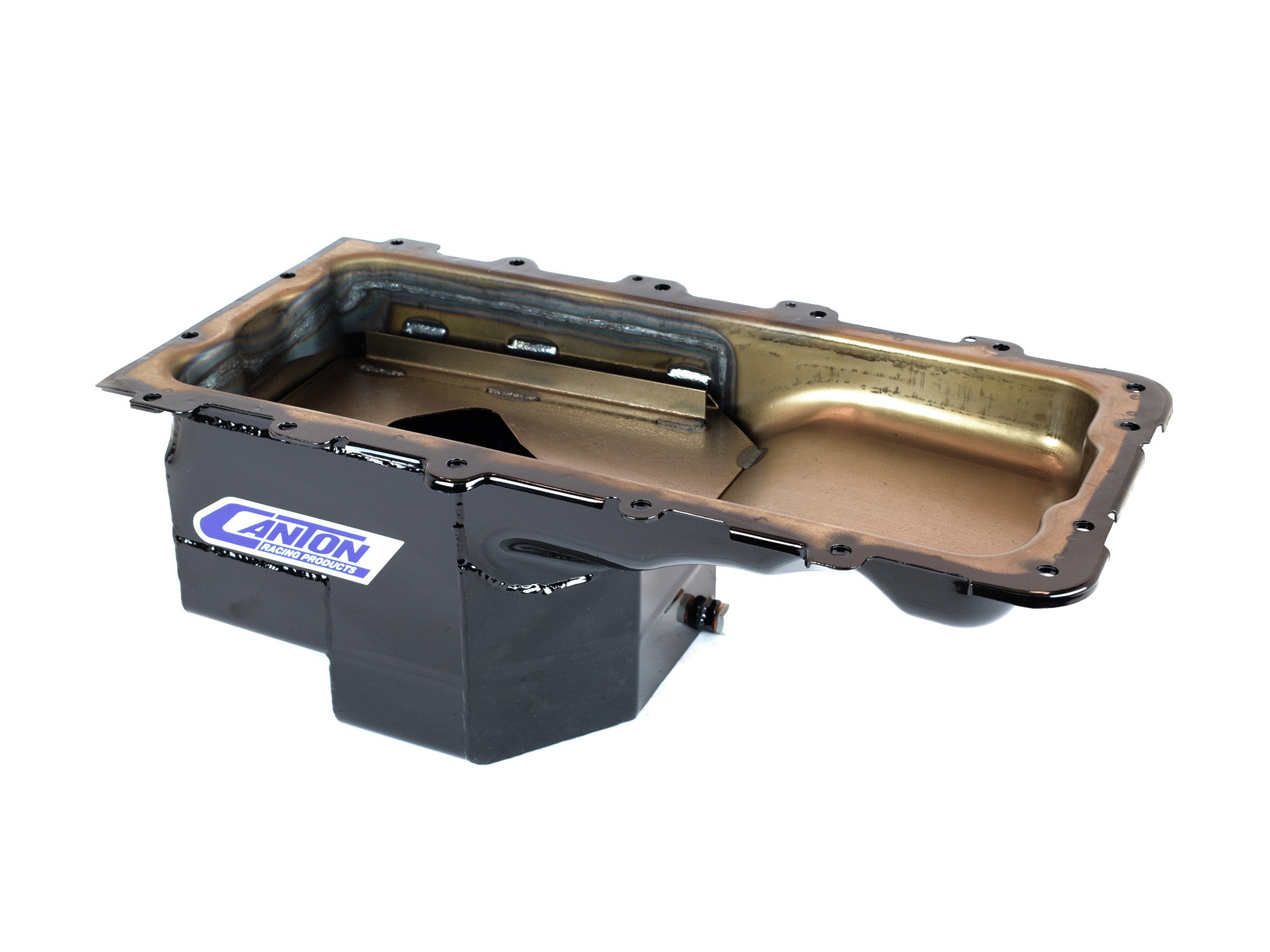

This Ford 4.6L/5.4L oil pan is 8-1/4" deep by 10" long by 8" wide rear sump. The oil pan holds 7 quarts for increased oil capacity and oil control. For use in Ford Two & Four wheel drive trucks. Designed for improved cross member clearance in 2WD trucks. This pan requires our 16-781 pickup made for 2V engines.
- 7 qt System Capacity
- Slosh Baffle
- Magnetic Drain Plug
Attributes:
- Brand Name: Canton
- GTIN: 00887753714244
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: No
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Slosh Baffle
- Feature 3: Magnetic Drain Plug
- Finish: Black Gloss Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 14 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 16-781 - Pickup Made for 2 Valve Engines
- Recommended Accessory 2: 20-939 - Ford 4.6L/5.4L Screen Windage Tray
- Recommended Accessory 3: 88-780 ? Modular Ford 4.6L/5.4L One Piece Oil Pan Gasket
- Stoke: 106MM
- Sump Depth: 8.25 inches
- Sump Width: 8 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 14 POUNDS
