Description

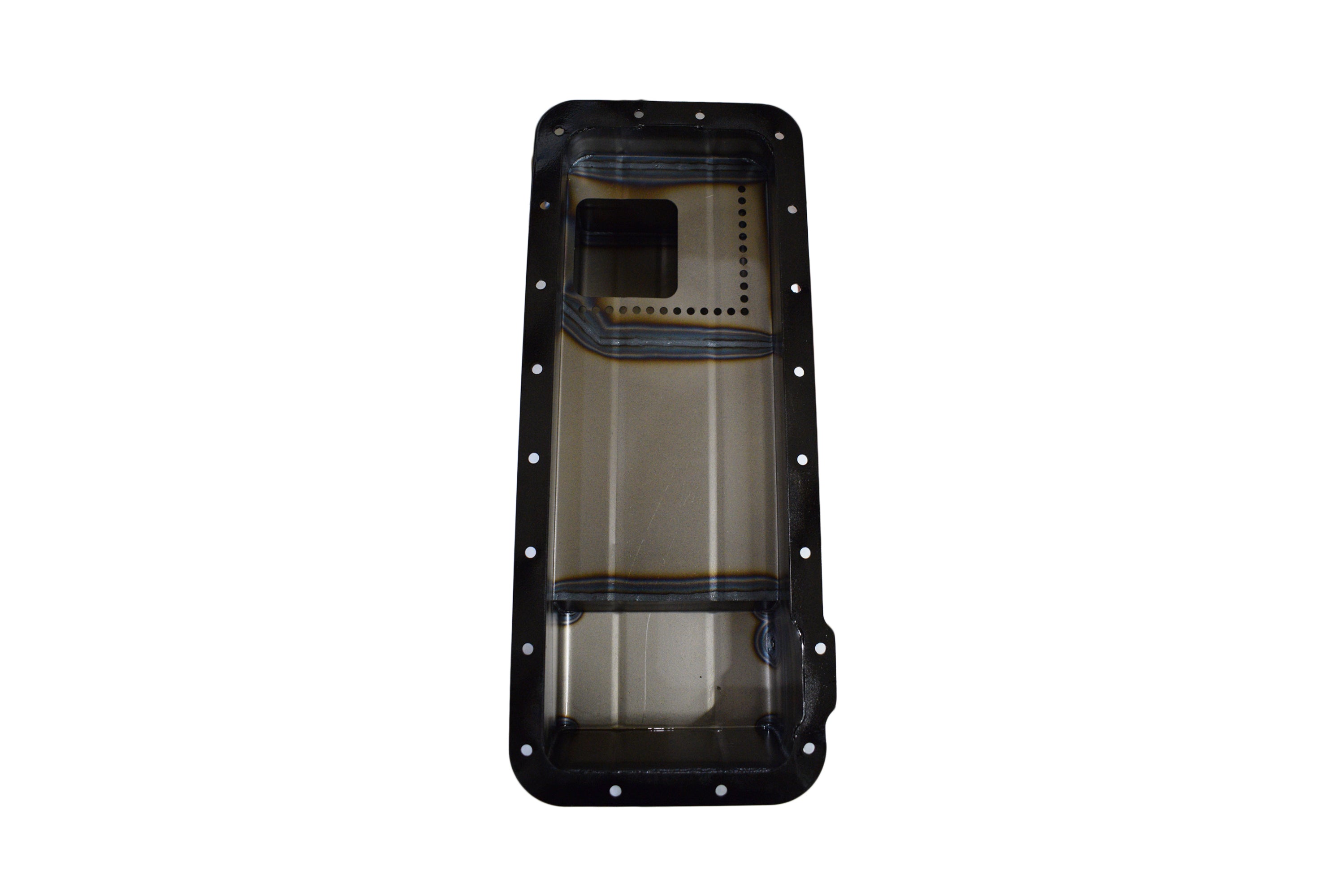

This deep rear sump pan is designed for increased oil capacity and oil control for Ford 332-428 FE truck applications. It can also be used to install FE engines in ?79 and up Mustang and T-Bird applications. Check the dimensions of your application to ensure proper fit. It has an 8" deep by 7-1/2" long sump, with a 7 quart system capacity. This pan requires our 16-871 pickup.
- 7 qt System Capacity
- Slosh Baffle
- Provision For Our Pan Mounted Dipstick
- Magnetic Drain Plug
- 1/8" Laser Cut Oil Pan Rail
Attributes:
- Brand Name: Canton
- GTIN: 00887753714268
- Baffled: Yes
- Capacity: 7 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 7 qt System Capacity
- Feature 2: Slosh Baffle
- Feature 3: Provision For Our Pan Mounted Dipstick
- Feature 4: Magnetic Drain Plug
- Finish: Black Gloss Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: No
- Material: 14 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 16-871 - Pickup with 3/4" Inlet
- Recommended Accessory 2: 20-938 - Ford 332-428 FE Screen Windage Tray
- Recommended Accessory 3: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 5: 88-800 - Oil Pan Gasket For Ford FE 390-428
- Stoke: 4.125 inches
- Sump Depth: 8 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : 1
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 15 POUNDS
