Description

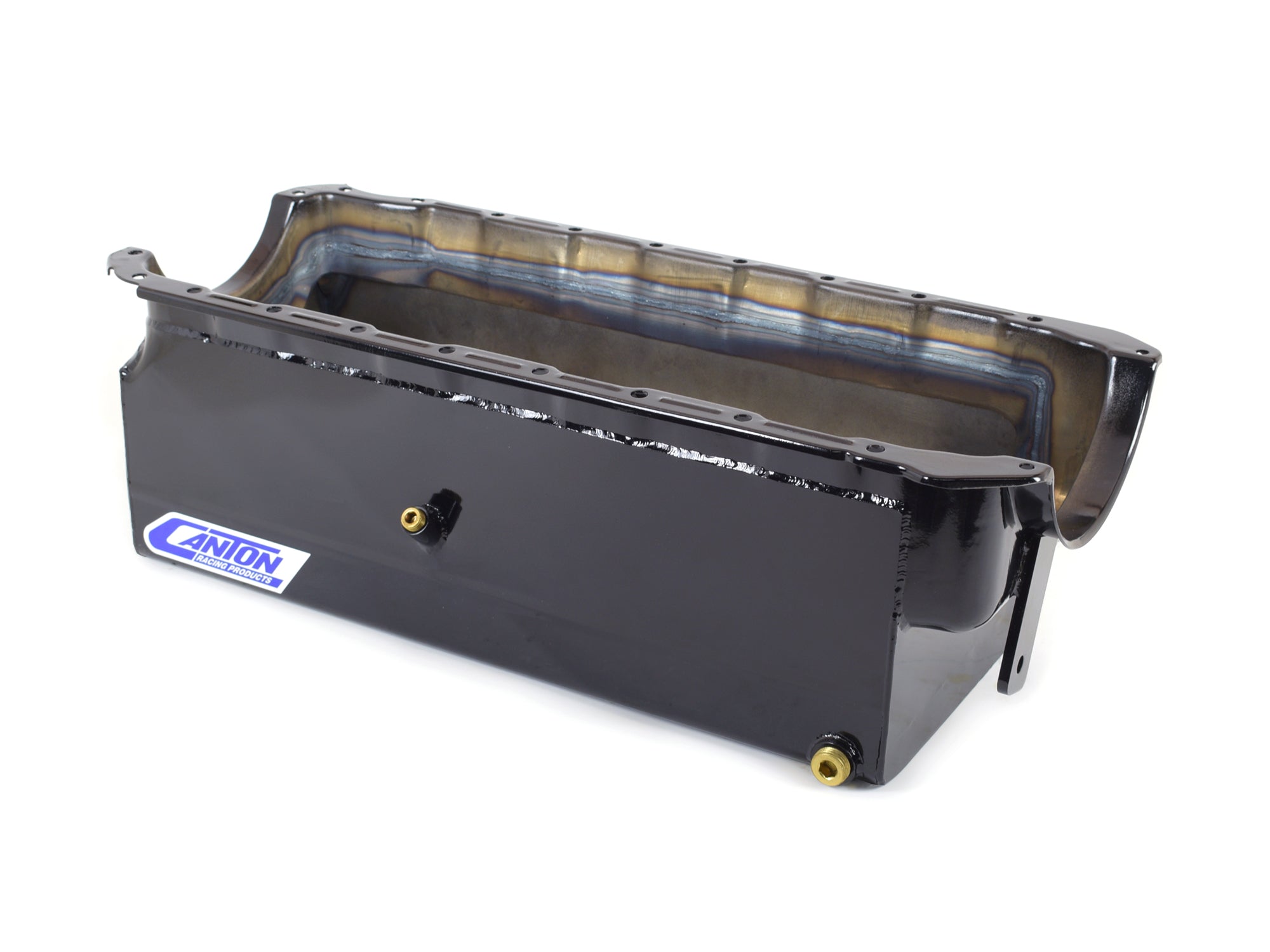

This reverse mount marine pan is for MK IV Big Block Chevys. Pan is 8? deep and holds 9 quarts of oil. It is designed with a front of engine pickup compartment with double trap doors for oil control in reverse mount engine applications. This pan requires our 18-311 pickup.
- 9 qt Pan Capacity
- 14 ga. Steel Construction
- Front of engine pickup compartment for reverse mount applications
- Double Trap Door Baffles

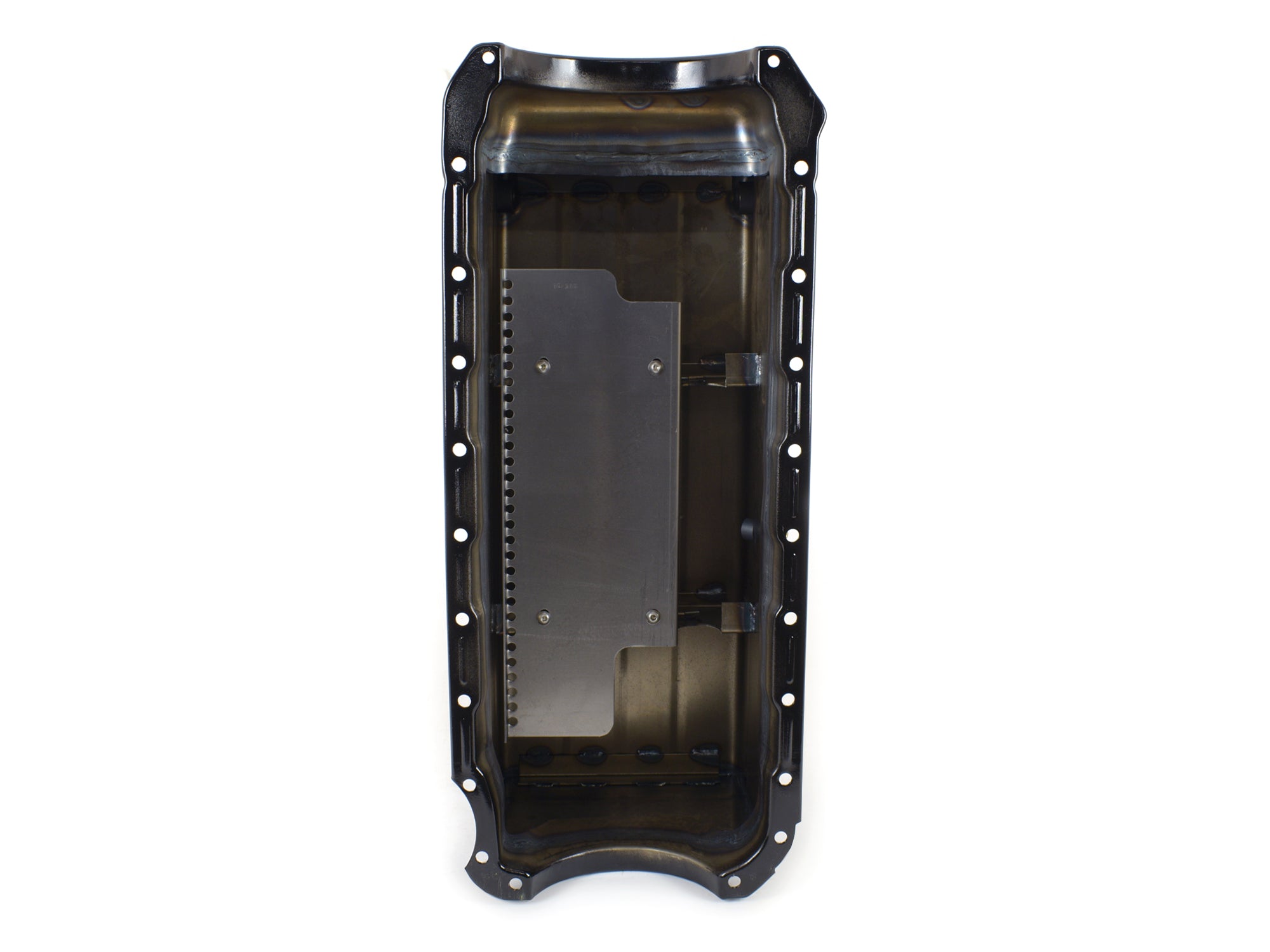

- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Drain Fittings
- Provision For our Pan Mounted Dipstick
- Powder Coating & Brass Plugs For Corrosion Protection
Attributes:
- Brand Name: Canton
- GTIN: 00887753714343
- Baffled: Yes
- Capacity: 9 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 9 qt Pan Capacity
- Feature 2: 14 ga. Steel Construction
- Feature 3: Front of engine pickup compartment for reverse mount applications
- Feature 4: Double Trap Door Baffles
- Feature 5: Removable Windage/Anti-Slosh Baffle
- Feature 6: 1/2" NPT Drain Fittings
- Feature 7: Provision For our Pan Mounted Dipstick
- Feature 8: Powder Coating & Brass Plugs For Corrosion Protection
- Finish: Black Gloss Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 14 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 18-311 - Pickup for 18-310/18-312 Reverse Mount Marine Pan
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
- Stoke: 4.5 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26.5 x 13.25 x 10.25 inches
- Weight: 22.3 POUNDS
