Description

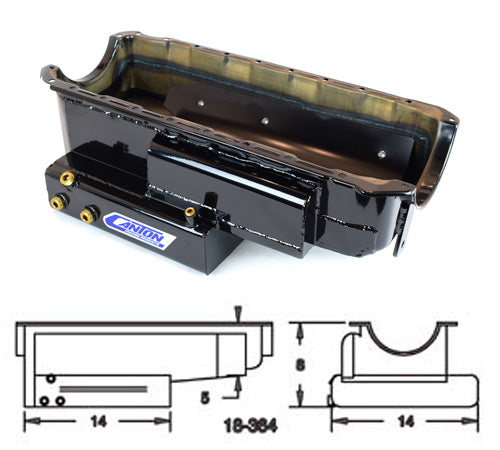

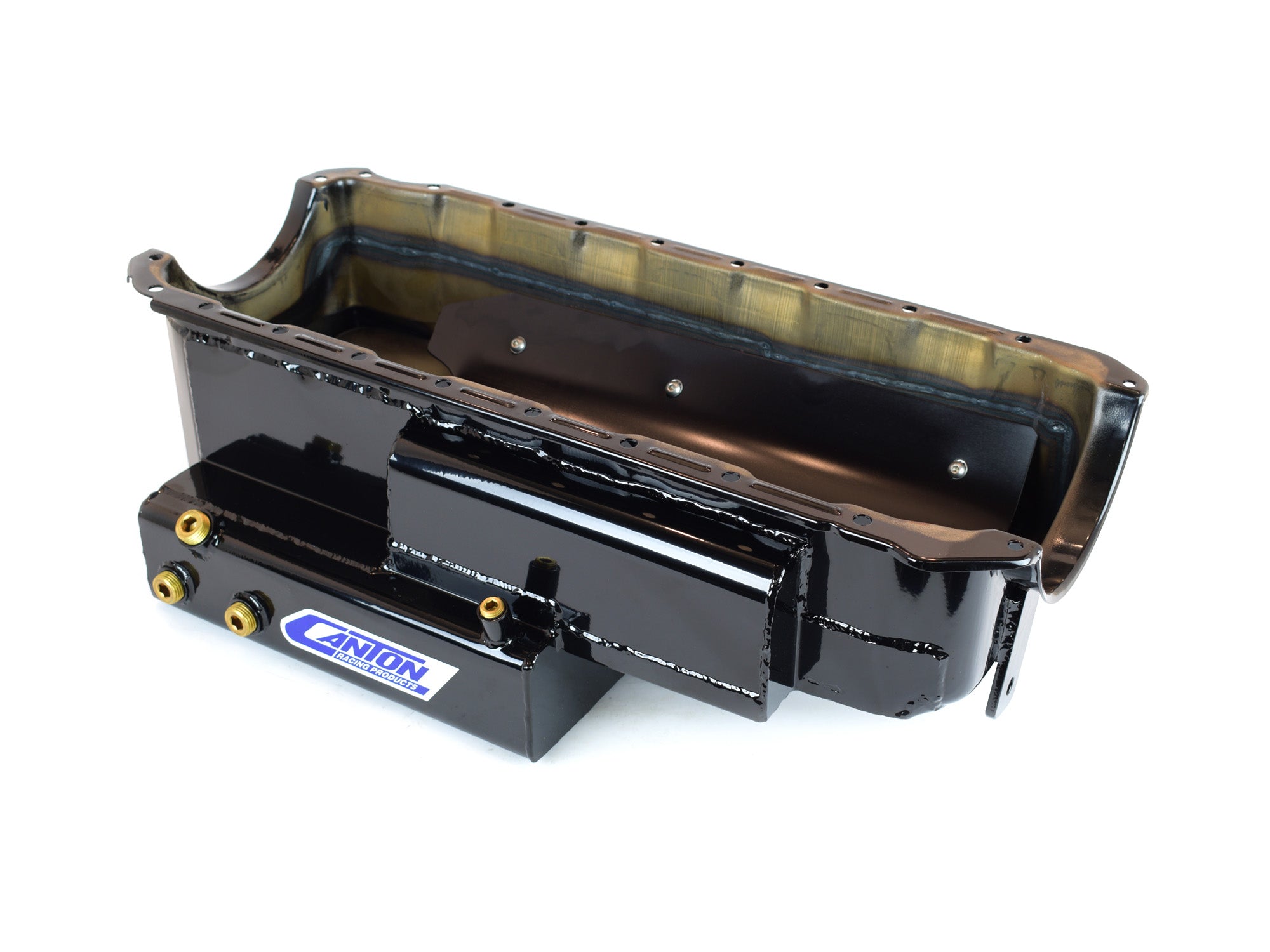

This extra high capacity ?T? sump is for standard Big Block Chevys with 2 piece rear seals. The 8" deep by 14" long by 14" wide sump holds 10 quarts of oil. The pan is angled in the front for improved drain back & is notched for a sea pump. Note: These pans have been REDESIGNED to clear O.E.M. marine starters with a 168 tooth flywheel. This pan requires our 18-365 pickup.
- 10 qt Pan Capacity
- Powder Coating & Brass Plugs For Corrosion Protection
- 14 ga. Steel Construction
- Six Trap Door Baffles
- Oil Recovery Pouch
- Crank Scraper
- Bolt In Slosh Baffle
- Built In Louvered Windage Tray
- Three 1/2" NPT Bungs
- Provision For our Pan Mounted Dipstick
Attributes:
- Brand Name: Canton
- GTIN: 00887753714398
- Baffled: Yes
- Capacity: 10 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 10 qt Pan Capacity
- Feature 10: Powder Coating & Brass Plugs For Corrosion Protection
- Feature 2: 14 ga. Steel Construction
- Feature 3: Six Trap Door Baffles
- Feature 4: Oil Recovery Pouch
- Feature 5: Crank Scraper
- Feature 6: Bolt In Slosh Baffle
- Feature 7: Built In Louvered Windage Tray
- Feature 8: Three 1/2" NPT Bungs
- Feature 9: Provision For our Pan Mounted Dipstick
- Finish: Black Gloss Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 14 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 18-365 - Pickup BBC Oil Pumps
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
- Stoke: 4.5 inches
- Sump Depth: 8 inches
- Sump Width: 14 inches
- Windage Tray Included: Yes
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 14 x 10 inches
- Weight: 27 POUNDS
