Description

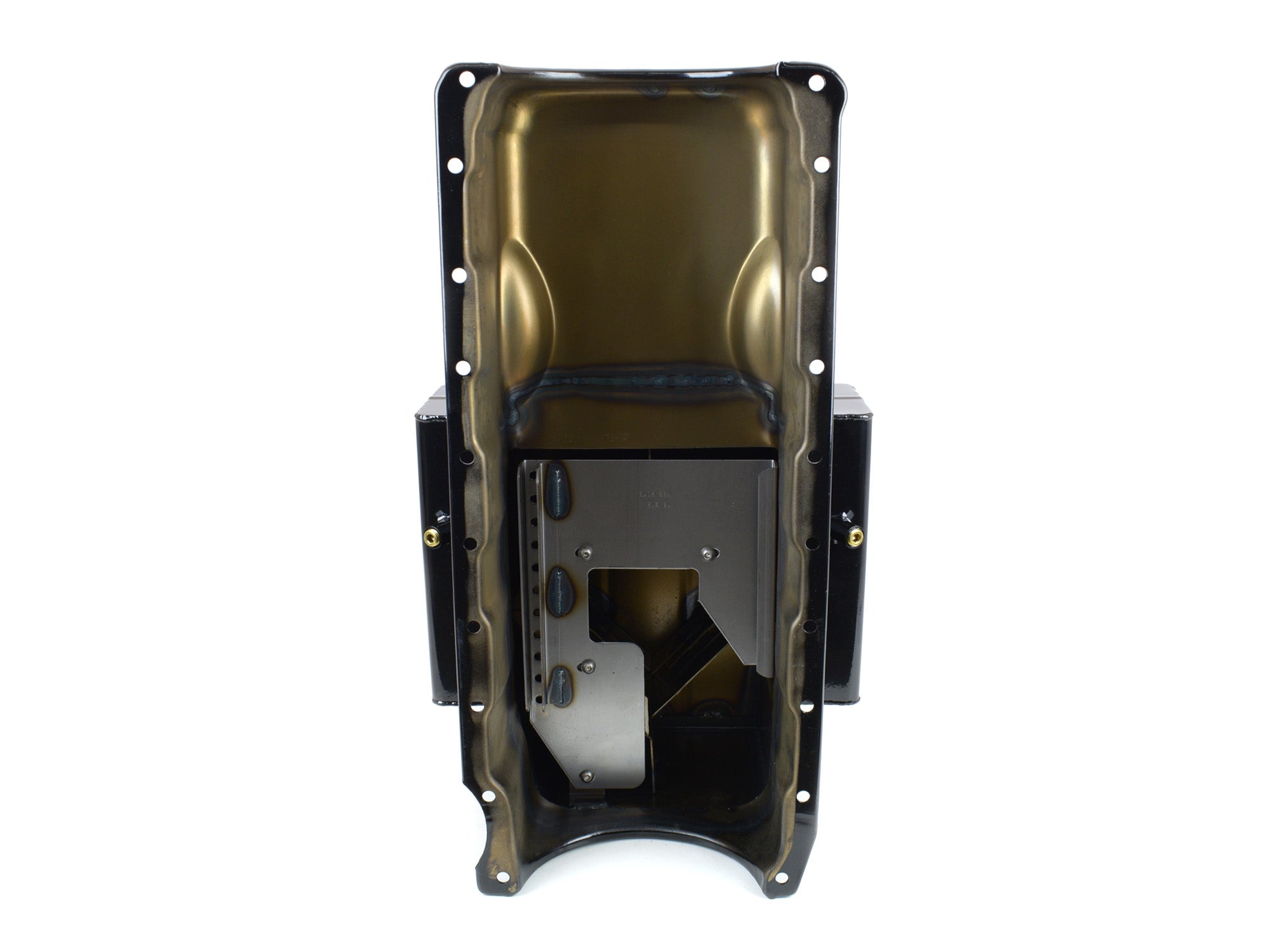

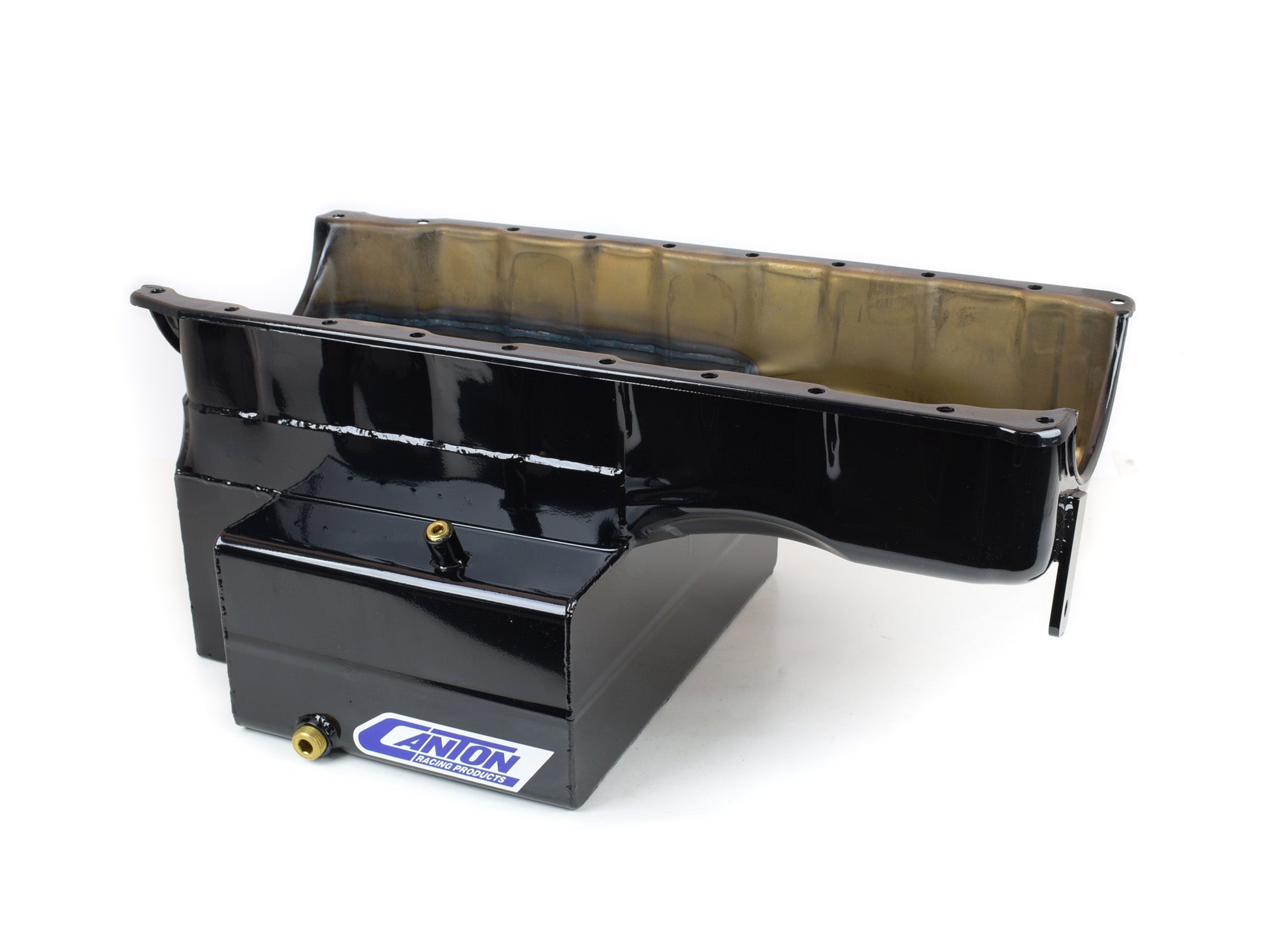

This Big Block Chevy marine pan is for Mark 5 blocks with one piece seal. It is designed for applications with the pickup at the flywheel end of the engine. It has a 10-1/2" deep, 13" long, 14-1/4" wide sump, and holds 14 quarts of oil. This pan requires our 18-371 pickup.
- 14 qt Pan Capacity
- 14 ga. Steel Construction
- Diamond Shaped Baffle Assembly With Four Trap Door Baffles
- Removable Windage/Anti-Slosh Baffle
- 1/2" NPT Drain Fittings
- Provision For our Pan Mounted Dipstick
- Powder Coating & Brass Plugs For Corrosion Protection
Attributes:
- Brand Name: Canton
- GTIN: 00887753714442
- Baffled: Yes
- Capacity: 14 Quart System Capacity
- Crank Scraper Included: No
- Dipstick Port: Yes
- Drain Plug Included: Yes
- Feature 1: 14 qt Pan Capacity
- Feature 2: 14 ga. Steel Construction
- Feature 3: Diamond Shaped Baffle Assembly With Four Trap Door Baffles
- Feature 4: Removable Windage/Anti-Slosh Baffle
- Feature 5: 1/2" NPT Drain Fittings
- Feature 6: Provision For our Pan Mounted Dipstick
- Feature 7: Powder Coating & Brass Plugs For Corrosion Protection
- Finish: Black Gloss Powdercoat
- Gasket or Seal Included: No
- Hardware Included: No
- Kicked Out: Yes
- Material: 14 Gauge Steel
- Pickup Included: No
- Recommended Accessory 1: 18-371 - Our Stock Replacement Pickup
- Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
- Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
- Stoke: 4.5 inches
- Windage Tray Included: No
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 26 x 18 x 15 inches
- Weight: 28 POUNDS
