Description

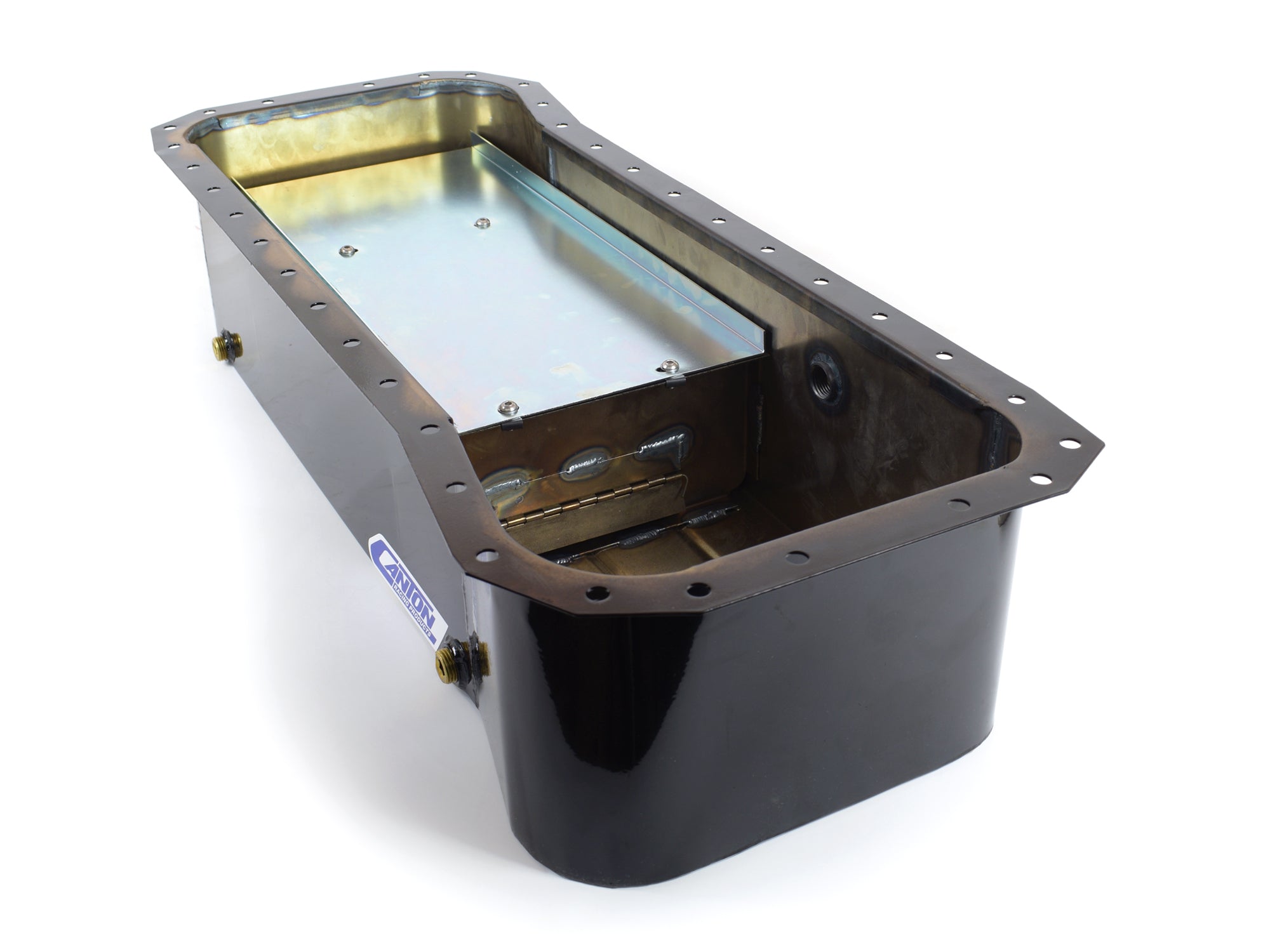

This 5.9 Cummins high capacity oil pan is a multi-application oil pan for Truck/Marine/Industrial/Open Chassis that require a larger capacity than the stock 5.9 oil pan. This oil pan is 7" deep, 10" wide at the center, and 30-1/4" long and has a oil capacity of 20qts. This oil pan features a symmetrical bolt pattern which allows for front and rear pickup mounting. It includes double trap door baffles and slosh tray for superior oil control. 1/2" NPT turbo drain backs are on both sides of the oil pan as well as 1/2" NPT drain bungs at all four corners. The oil pan also includes a 1/4" NPT provision for a Canton dipstick. The finish of the pan is black powdercoat and built from 14 gauge steel for long lasting durability. Pickups required for this oil pan are 18-945 for front sump applications and 18-946 for rear sump applications.
- 7" Deep Flat bottom pan, 10" wide at center x 30-1/4" Long
- Use 18-945 for front scavenge pickup tube
- Use 18-946 for rear scavenge pickup tube
- 20qt Capacity
- Symmetrical bolt pattern allows for front or rear oil pickup mounting
- Double trap door baffles and slosh tray for oil control
- 1/2" NPT turbo drain back ports on both sides of the oil pan
- 1/2" NPT Drain bungs on all four corners of the oil pan
- Canton Dipstick Provision
- 14 Gauge Tig Welded Steel
- Black Powder Coat Finish
Attributes:
- Brand Name: Canton
- GTIN: 00887753841414
- Surface Finish: Black Powdercoat
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Available To Order
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 36 x 14 x 10 inches
- Weight: 25 POUNDS
