Description

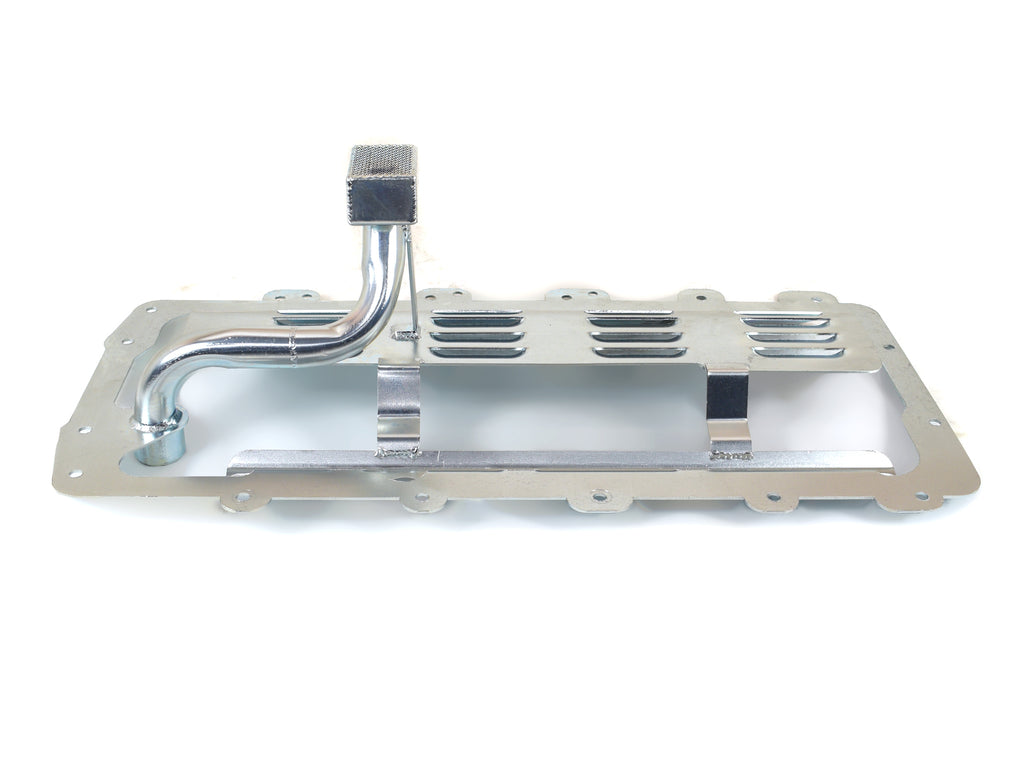

The 20-937P38 Coyote Gen 3 Louver Tray / Pickup Combo is designed to replace and improve upon Ford part# BR32-6710 when using Canton pan #15-738. The louvered designed tray reduces drag from windage and oil slosh coming off the rotating assembly. This part is tig welded for strength, durability and longevity specifically in high performance applications. The windage tray/pickup combo is required for use with our Gen 3 oil pan 15-738. The part is zinc plated to protect against corrosion.
- Improvement over composite stock windage tray #BR32-6710
- Required to use with part #15-738
- Direct fit with OEM Gen 3 Coyote Oil Pump
- Reduces drag from windage and oil slosh freeing up HP
- TIG welded for strength, durability, and longevity
- Zinc Plated for corrosion resistance

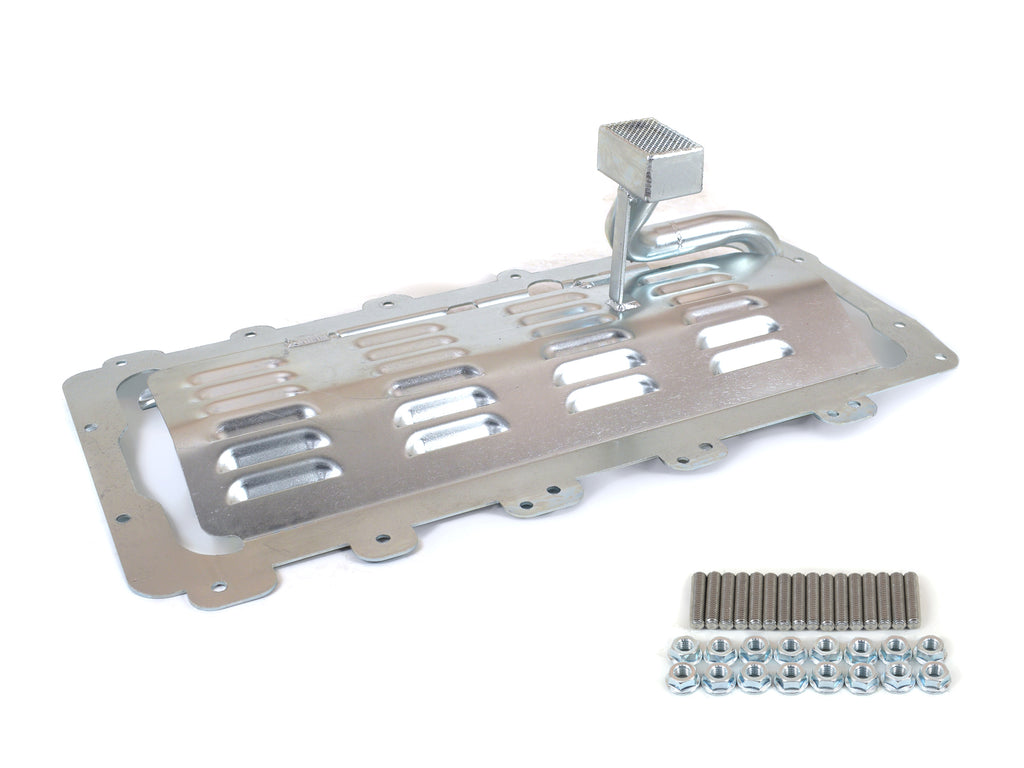

- Included Hardware: 6mm-1 x 35mm studs x 16, 6mm-1 flange nuts x 16
Attributes:
- Brand Name: Canton
- GTIN: 00887753891303
- Finish: Silver Plated
- Included Hardware: 6mm-1 x 35mm studs x 16, 6mm-1 flange nuts x 16
Extended Information:
- Country of Origin: US
- Emissions : CARB Eligible
- Life Cycle Status: Released
Packing Information:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 23 x 12 x 10 inches
- Weight: 7.5 POUNDS
