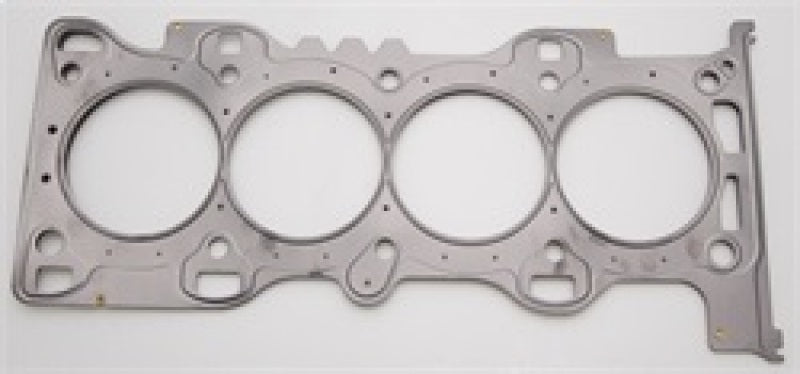

Cometic 2009 Mazda 2.5L DISI 90MM Bore .040 inch MLS Headgasket

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.040". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Warranty
Certificate of Origin
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2006-2009	Ford	Fusion	S
2006-2009	Ford	Fusion	SE
2006-2009	Ford	Fusion	SEL
2006-2013	Mazda	3	i
2006-2013	Mazda	3	S
2008-2010,2012-2015	Mazda	5	Grand Touring
2008-2010,2012-2015	Mazda	5	Sport
2008-2010,2012-2015	Mazda	5	Touring
2014	Mazda	6	Grand Touring
2006-2013	Mazda	6	i
2014	Mazda	6	Sport
2014	Mazda	6	Touring
2014	Mazda	CX-5	Grand Touring
2014	Mazda	CX-5	Touring
2010-2012	Mazda	CX-7	Sport
2010-2012	Mazda	CX-7	SV
2011-2012	Mazda	CX-7	Touring
2015	Mazda	MX-5 Miata	25th Anniversary Edition
2006	Mazda	MX-5 Miata	Base
2013-2015	Mazda	MX-5 Miata	Club
2006	Mazda	MX-5 Miata	Club Spec
2006-2015	Mazda	MX-5 Miata	Grand Touring
2011-2012	Mazda	MX-5 Miata	Special Edition
2006-2015	Mazda	MX-5 Miata	Sport
2007-2009	Mazda	MX-5 Miata	SV
2006-2012	Mazda	MX-5 Miata	Touring
2009-2011	Mazda	Tribute	i
2006-2009	Mercury	Milan	Base
2006-2009	Mercury	Milan	Premier
