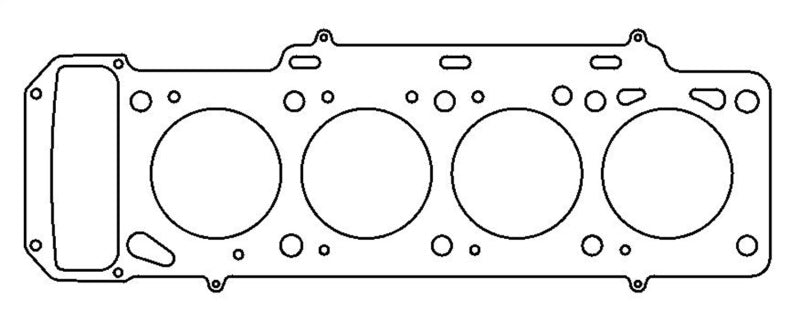

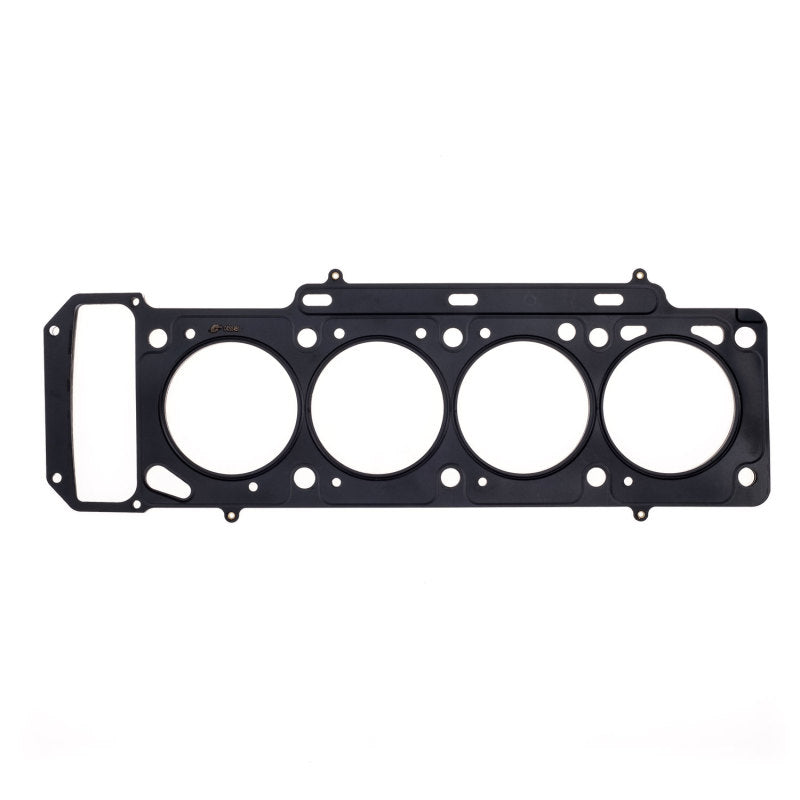

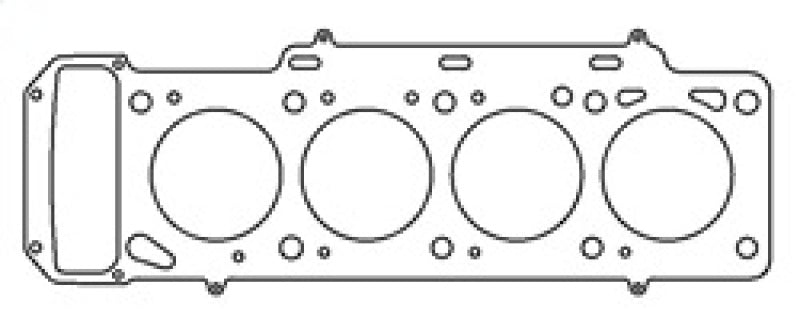

Cometic BMW 1766/1990cc 72-88 90mm .070 inch MLS Head Gasket M10 Engine

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.070". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
User 1
Installation Instructions
Warranty
Certificate of Origin
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1968-1971	BMW	1800	Base
1971	BMW	1800	Touring
1971	BMW	1802	Base
1972	BMW	2000	Base
1972	BMW	2000	Touring
1972	BMW	2000tii	Base
1972	BMW	2000tii	Touring
1972-1976	BMW	2002	Base
1972-1974	BMW	2002	Cabriolet
1973-1974	BMW	2002	Turbo
1972-1974	BMW	2002tii	Base
1977-1979	BMW	320i	Base
