Description

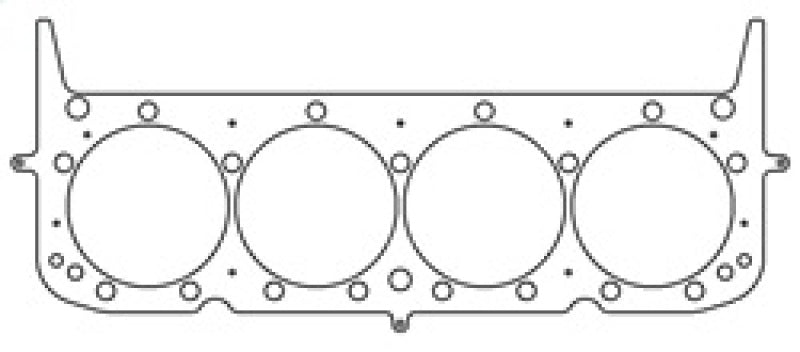

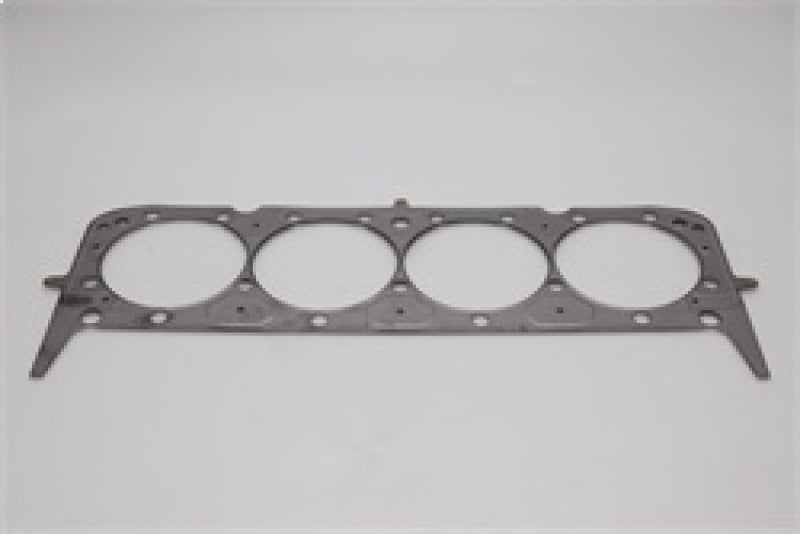

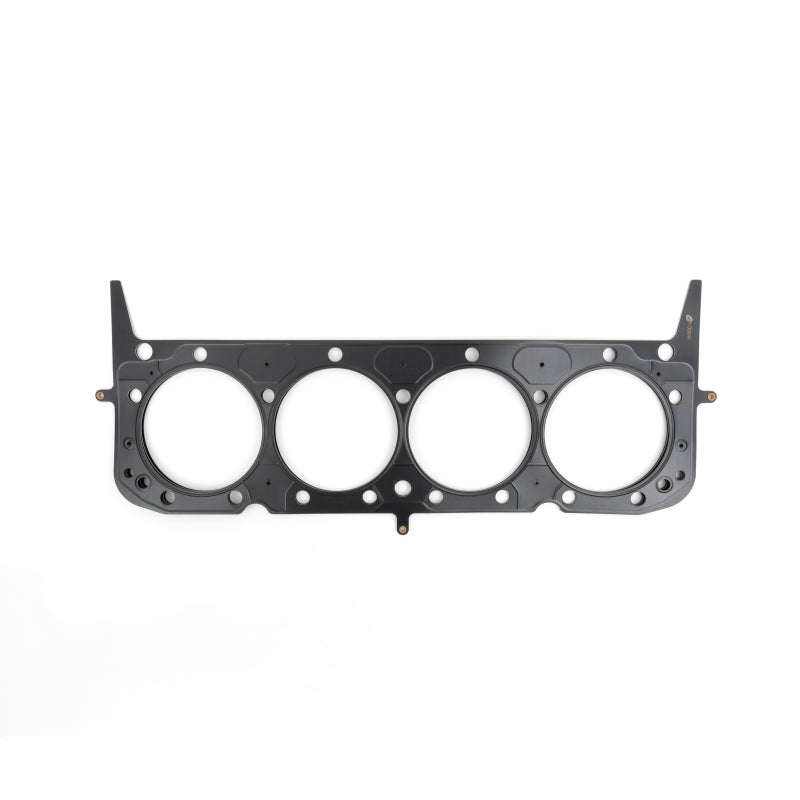

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". Suitable for Brodix 12-23 Degree Head. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
This Part Fits:
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1965-1974,1976-1985 | Avanti | II | Base |
| 1985 | Avanti | II | GT |
| 1977,1980-1981 | Buick | Century | Base |
| 1977-1979 | Buick | Century | Custom |
| 1980 | Buick | Century | Estate |
| 1978-1981 | Buick | Century | Limited |
| 1978-1979 | Buick | Century | Special |
| 1978 | Buick | Century | Sport |
| 1978 | Buick | LeSabre | Base |
| 1978,1982 | Buick | LeSabre | Custom |
| 1982 | Buick | LeSabre | Limited |
| 1977-1986 | Buick | Regal | Base |
| 1982-1983 | Buick | Regal | Estate Wagon |
| 1978-1983,1985-1986 | Buick | Regal | Limited |
| 1977 | Buick | Regal | SR |
| 1977-1979 | Buick | Skylark | Base |
| 1978-1979 | Buick | Skylark | Custom |
| 1977-1979 | Buick | Skylark | S |
| 1978 | Buick | Skylark | Sport |
| 1977 | Buick | Skylark | SR |
| 1985 | Buick | Somerset Regal | Base |
| 1985 | Buick | Somerset Regal | Limited |
| 1966-1974 | Checker | Aerobus | Base |
| 1969-1970 | Checker | Deluxe | Base |
| 1975 | Checker | Marathon | Aerobus |
| 1965-1982 | Checker | Marathon | Base |
| 1970-1982 | Checker | Marathon | Deluxe |
| 1965-1969 | Checker | Marathon | Town Custom |
| 1969-1974 | Checker | Taxicab | Base |
| 1959 | Chevrolet | 3B | 3200 |
| 1959 | Chevrolet | 3C | 3400 |
| 1959 | Chevrolet | 3D | 3500 |
| 1959 | Chevrolet | 3E | 3600 |
| 1959 | Chevrolet | 3F | 3700 |
| 1959 | Chevrolet | 3G | 3800 |
| 1955-1975 | Chevrolet | Bel Air | Base |
| 1955-1956 | Chevrolet | Bel Air | Beauville |
| 1955-1957 | Chevrolet | Bel Air | Nomad |
| 1958-1972 | Chevrolet | Biscayne | Base |
| 1960 | Chevrolet | Biscayne | Fleetmaster |
| 1969-1974 | Chevrolet | Blazer | Base |
| 1958-1961,1969-1972 | Chevrolet | Brookwood | Base |
| 1978-1980 | Chevrolet | C10 | Big Ten |
| 1975-1981 | Chevrolet | C10 | Cheyenne |
| 1981-1986 | Chevrolet | C10 | Custom |
| 1975-1980 | Chevrolet | C10 | Custom Deluxe |
| 1981 | Chevrolet | C10 | Deluxe |
| 1975-1986 | Chevrolet | C10 | Scottsdale |
| 1975-1986 | Chevrolet | C10 | Silverado |
| 1960-1974 | Chevrolet | C10 Pickup | Base |
| 1967-1974 | Chevrolet | C10 Suburban | Base |
| 1981-1986 | Chevrolet | C10 Suburban | Custom |
| 1975-1980 | Chevrolet | C10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C10 Suburban | Deluxe |
| 1975-1980,1982,1984-1986 | Chevrolet | C10 Suburban | Scottsdale |
| 1975-1980,1982-1986 | Chevrolet | C10 Suburban | Silverado |
| 1975-1981 | Chevrolet | C20 | Cheyenne |
| 1981-1986 | Chevrolet | C20 | Custom |
| 1975-1980 | Chevrolet | C20 | Custom Deluxe |
| 1981 | Chevrolet | C20 | Deluxe |
| 1975-1986 | Chevrolet | C20 | Scottsdale |
| 1975-1986 | Chevrolet | C20 | Silverado |
| 1960-1974 | Chevrolet | C20 Pickup | Base |
| 1967-1974 | Chevrolet | C20 Suburban | Base |
| 1981-1986 | Chevrolet | C20 Suburban | Custom |
| 1975-1980 | Chevrolet | C20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C20 Suburban | Deluxe |
| 1975-1980,1982,1984-1986 | Chevrolet | C20 Suburban | Scottsdale |
| 1975-1977,1979-1980,1982-1986 | Chevrolet | C20 Suburban | Silverado |
| 1975-1981 | Chevrolet | C30 | Cheyenne |
| 1981-1986 | Chevrolet | C30 | Custom |
| 1975-1980 | Chevrolet | C30 | Custom Deluxe |
| 1981 | Chevrolet | C30 | Deluxe |
| 1975-1986 | Chevrolet | C30 | Scottsdale |
| 1975-1986 | Chevrolet | C30 | Silverado |
| 1960-1974 | Chevrolet | C30 Pickup | Base |
| 1960-1962 | Chevrolet | C40 | Base |
| 1967-1980 | Chevrolet | Camaro | Base |
| 1979-1986 | Chevrolet | Camaro | Berlinetta |
| 1985-1986 | Chevrolet | Camaro | Iroc-Z |
| 1973-1978 | Chevrolet | Camaro | LT |
| 1976-1978 | Chevrolet | Camaro | LT Rally Sport |
| 1976-1980 | Chevrolet | Camaro | Rally Sport |
| 1967-1973,1975 | Chevrolet | Camaro | RS |
| 1981-1986 | Chevrolet | Camaro | Sport |
| 1967-1972 | Chevrolet | Camaro | SS |
| 1967-1972,1974,1977-1986 | Chevrolet | Camaro | Z28 |
| 1982 | Chevrolet | Camaro | Z28 Indianapolis 500 Pace Car |
| 1966-1972,1986 | Chevrolet | Caprice | Base |
| 1973-1986 | Chevrolet | Caprice | Classic |
| 1986 | Chevrolet | Caprice | Classic Brougham |
| 1976-1978,1981-1982 | Chevrolet | Caprice | Classic Estate |
| 1976-1981 | Chevrolet | Caprice | Classic Landau |
| 1975-1976,1979-1980 | Chevrolet | Caprice | Classic Sport |
| 1973-1974 | Chevrolet | Caprice | Estate |
| 1975 | Chevrolet | Caprice | Estate Wagon |
| 1967-1968 | Chevrolet | Chevelle | 300 |
| 1967-1969 | Chevrolet | Chevelle | 300 Deluxe |
| 1964-1968,1970-1972 | Chevrolet | Chevelle | Base |
| 1967-1972 | Chevrolet | Chevelle | Concours |
| 1969-1972 | Chevrolet | Chevelle | Concours Estate |
| 1965-1967,1973 | Chevrolet | Chevelle | Deluxe |
| 1969-1972 | Chevrolet | Chevelle | Greenbrier |
| 1968-1972 | Chevrolet | Chevelle | Malibu |
| 1968-1972 | Chevrolet | Chevelle | Nomad |
| 1964-1972 | Chevrolet | Chevelle | SS |
| 1963-1967 | Chevrolet | Chevy II | Base |
| 1963-1968 | Chevrolet | Chevy II | Nova |
| 1964-1967 | Chevrolet | Chevy II | Nova SS |
| 1955-1974,1977-1982,1984-1986 | Chevrolet | Corvette | Base |
| 1982 | Chevrolet | Corvette | Collector's Edition |
| 1978,1986 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 1978 | Chevrolet | Corvette | Silver Anniversary Edition |
| 1975-1976 | Chevrolet | Corvette | Stingray |
| 1957-1958 | Chevrolet | Del Ray | Base |
| 1959-1960,1964-1986 | Chevrolet | El Camino | Base |
| 1975-1977 | Chevrolet | El Camino | Classic |
| 1977-1978,1981-1986 | Chevrolet | El Camino | Conquista |
| 1968-1974 | Chevrolet | El Camino | Custom |
| 1979-1981 | Chevrolet | El Camino | Royal Knight |
| 1970-1986 | Chevrolet | El Camino | SS |
| 1969-1970 | Chevrolet | Estate | Base |
| 1983 | Chevrolet | G10 | Base |
| 1975-1986 | Chevrolet | G10 | Beauville |
| 1981-1984,1986 | Chevrolet | G10 | Bonaventure |
| 1975-1986 | Chevrolet | G10 | Chevy Van |
| 1975-1986 | Chevrolet | G10 | Sportvan |
| 1969-1974 | Chevrolet | G10 Van | Base |
| 1968-1974 | Chevrolet | G10 Van | Sportvan |
| 1975-1986 | Chevrolet | G20 | Beauville |
| 1983-1984 | Chevrolet | G20 | Bonaventure |
| 1975-1986 | Chevrolet | G20 | Chevy Van |
| 1978-1981 | Chevrolet | G20 | Nomad |
| 1975-1986 | Chevrolet | G20 | Sportvan |
| 1967-1974 | Chevrolet | G20 Van | Base |
| 1968-1974 | Chevrolet | G20 Van | Sportvan |
| 1975-1986 | Chevrolet | G30 | Beauville |
| 1983-1984 | Chevrolet | G30 | Bonaventure |
| 1975-1986 | Chevrolet | G30 | Chevy Van |
| 1975-1986 | Chevrolet | G30 | Hi-Cube |
| 1975-1986 | Chevrolet | G30 | Sportvan |
| 1970-1974 | Chevrolet | G30 Van | Base |
| 1970-1974 | Chevrolet | G30 Van | Sportvan |
| 1958-1985 | Chevrolet | Impala | Base |
| 1975-1977 | Chevrolet | Impala | Custom |
| 1976 | Chevrolet | Impala | Custom Landau |
| 1981-1982 | Chevrolet | Impala | Estate |
| 1977-1979 | Chevrolet | Impala | Landau |
| 1976 | Chevrolet | Impala | S |
| 1975-1976,1979-1980 | Chevrolet | Impala | Sport |
| 1964-1967 | Chevrolet | Impala | SS |
| 1975-1981 | Chevrolet | K10 | Cheyenne |
| 1981-1986 | Chevrolet | K10 | Custom |
| 1975-1980 | Chevrolet | K10 | Custom Deluxe |
| 1981 | Chevrolet | K10 | Deluxe |
| 1975-1986 | Chevrolet | K10 | Scottsdale |
| 1975-1986 | Chevrolet | K10 | Silverado |
| 1960-1974 | Chevrolet | K10 Pickup | Base |
| 1967-1974 | Chevrolet | K10 Suburban | Base |
| 1981-1986 | Chevrolet | K10 Suburban | Custom |
| 1975-1980 | Chevrolet | K10 Suburban | Custom Deluxe |
| 1981 | Chevrolet | K10 Suburban | Deluxe |
| 1975-1980,1982,1984-1986 | Chevrolet | K10 Suburban | Scottsdale |
| 1975-1977,1979-1980,1982-1983,1985-1986 | Chevrolet | K10 Suburban | Silverado |
| 1975-1981 | Chevrolet | K20 | Cheyenne |
| 1981-1986 | Chevrolet | K20 | Custom |
| 1975-1980 | Chevrolet | K20 | Custom Deluxe |
| 1981 | Chevrolet | K20 | Deluxe |
| 1975-1986 | Chevrolet | K20 | Scottsdale |
| 1975-1983,1985-1986 | Chevrolet | K20 | Silverado |
| 1967 | Chevrolet | K20 Panel | Base |
| 1960-1974 | Chevrolet | K20 Pickup | Base |
| 1967-1974 | Chevrolet | K20 Suburban | Base |
| 1981-1986 | Chevrolet | K20 Suburban | Custom |
| 1975-1980 | Chevrolet | K20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | K20 Suburban | Deluxe |
| 1975-1980,1982,1984-1986 | Chevrolet | K20 Suburban | Scottsdale |
| 1975-1977,1979-1980,1982-1983,1985-1986 | Chevrolet | K20 Suburban | Silverado |
| 1977-1981 | Chevrolet | K30 | Cheyenne |
| 1981-1986 | Chevrolet | K30 | Custom |
| 1977-1980 | Chevrolet | K30 | Custom Deluxe |
| 1981 | Chevrolet | K30 | Deluxe |
| 1977-1986 | Chevrolet | K30 | Scottsdale |
| 1977-1986 | Chevrolet | K30 | Silverado |
| 1968-1974 | Chevrolet | K30 Pickup | Base |
| 1976 | Chevrolet | K5 Blazer | Base |
| 1975-1980 | Chevrolet | K5 Blazer | Cheyenne |
| 1981-1986 | Chevrolet | K5 Blazer | Custom |
| 1975,1977-1980 | Chevrolet | K5 Blazer | Custom Deluxe |
| 1981 | Chevrolet | K5 Blazer | Deluxe |
| 1984 | Chevrolet | K5 Blazer | Scottsdale |
| 1978,1980-1986 | Chevrolet | K5 Blazer | Silverado |
| 1959-1961,1969-1972 | Chevrolet | Kingswood | Base |
| 1969-1972 | Chevrolet | Kingswood | Estate |
| 1973-1975 | Chevrolet | Laguna | Base |
| 1973 | Chevrolet | Laguna | Estate |
| 1975-1976 | Chevrolet | Laguna | S3 |
| 1964-1967,1973-1981 | Chevrolet | Malibu | Base |
| 1974-1983 | Chevrolet | Malibu | Classic |
| 1975-1976,1978-1980 | Chevrolet | Malibu | Classic Estate |
