Description

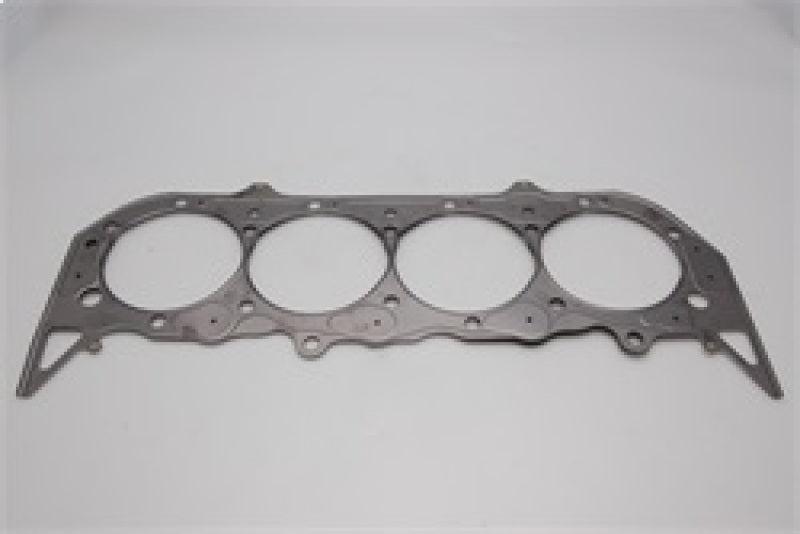

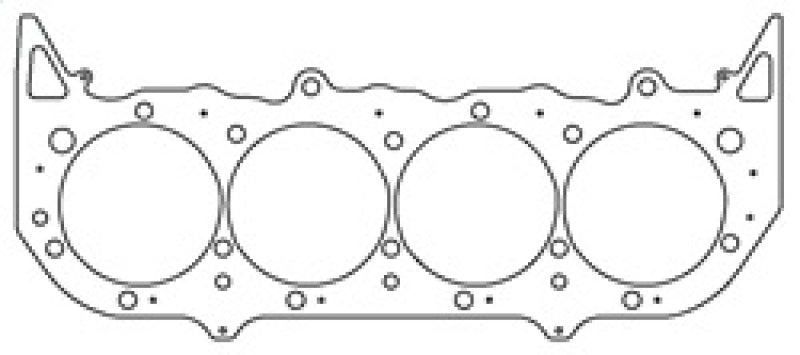

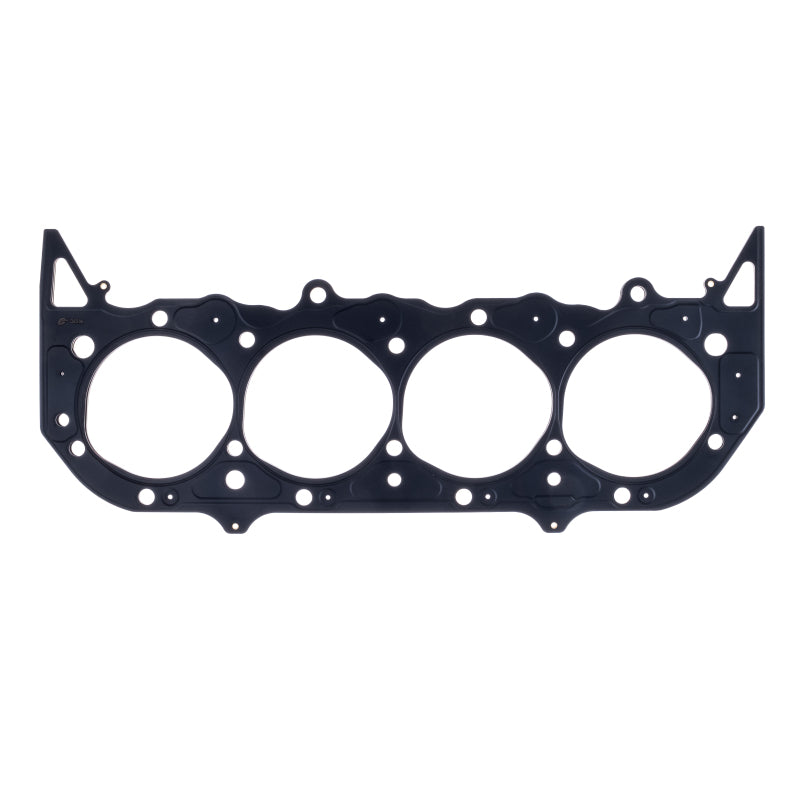

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.120". Suitable for Brodix Big Duke/Brodie Head. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
User 1
Installation Instructions
Warranty
Certificate of Origin
Installation Instructions
This Part Fits:
User 1
Installation Instructions
Warranty
Certificate of Origin
Installation Instructions
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1965-1975 | Chevrolet | Bel Air | Base |
| 1965-1972 | Chevrolet | Biscayne | Base |
| 1973-1974 | Chevrolet | Blazer | Base |
| 1969-1972 | Chevrolet | Brookwood | Base |
| 1978-1980 | Chevrolet | C10 | Big Ten |
| 1975-1980 | Chevrolet | C10 | Cheyenne |
| 1975-1980 | Chevrolet | C10 | Custom Deluxe |
| 1975-1980 | Chevrolet | C10 | Scottsdale |
| 1975-1980 | Chevrolet | C10 | Silverado |
| 1968-1974 | Chevrolet | C10 Pickup | Base |
| 1968-1974 | Chevrolet | C10 Suburban | Base |
| 1975-1980 | Chevrolet | C10 Suburban | Custom Deluxe |
| 1975-1980 | Chevrolet | C10 Suburban | Scottsdale |
| 1975-1980 | Chevrolet | C10 Suburban | Silverado |
| 1990 | Chevrolet | C1500 | 454 SS |
| 1990 | Chevrolet | C1500 | Cheyenne |
| 1990 | Chevrolet | C1500 | Scottsdale |
| 1990 | Chevrolet | C1500 | Silverado |
| 1990 | Chevrolet | C1500 | WT |
| 1975-1981 | Chevrolet | C20 | Cheyenne |
| 1981-1986 | Chevrolet | C20 | Custom |
| 1975-1980 | Chevrolet | C20 | Custom Deluxe |
| 1981 | Chevrolet | C20 | Deluxe |
| 1975-1986 | Chevrolet | C20 | Scottsdale |
| 1975-1986 | Chevrolet | C20 | Silverado |
| 1968-1974 | Chevrolet | C20 Pickup | Base |
| 1968-1974 | Chevrolet | C20 Suburban | Base |
| 1981-1986 | Chevrolet | C20 Suburban | Custom |
| 1975-1980 | Chevrolet | C20 Suburban | Custom Deluxe |
| 1981 | Chevrolet | C20 Suburban | Deluxe |
| 1975-1980,1982,1984-1986 | Chevrolet | C20 Suburban | Scottsdale |
| 1975-1977,1979-1980,1982-1986 | Chevrolet | C20 Suburban | Silverado |
| 1975-1981 | Chevrolet | C30 | Cheyenne |
| 1981-1986 | Chevrolet | C30 | Custom |
| 1975-1980 | Chevrolet | C30 | Custom Deluxe |
| 1981 | Chevrolet | C30 | Deluxe |
| 1975-1986 | Chevrolet | C30 | Scottsdale |
| 1975-1986 | Chevrolet | C30 | Silverado |
| 1968-1974 | Chevrolet | C30 Pickup | Base |
| 1988-1990 | Chevrolet | C3500 | Cheyenne |
| 1988-1990 | Chevrolet | C3500 | Scottsdale |
| 1988-1990 | Chevrolet | C3500 | Silverado |
| 1967-1972 | Chevrolet | Camaro | Base |
| 1967,1969 | Chevrolet | Camaro | RS |
| 1967-1972 | Chevrolet | Camaro | SS |
| 1972 | Chevrolet | Camaro | Z28 |
| 1966-1972 | Chevrolet | Caprice | Base |
| 1973-1976 | Chevrolet | Caprice | Classic |
| 1976 | Chevrolet | Caprice | Classic Estate |
| 1976 | Chevrolet | Caprice | Classic Landau |
| 1975-1976 | Chevrolet | Caprice | Classic Sport |
| 1973-1974 | Chevrolet | Caprice | Estate |
| 1975 | Chevrolet | Caprice | Estate Wagon |
| 1968 | Chevrolet | Chevelle | 300 |
| 1968-1969 | Chevrolet | Chevelle | 300 Deluxe |
| 1965-1967,1970-1972 | Chevrolet | Chevelle | Base |
| 1967-1972 | Chevrolet | Chevelle | Concours |
| 1969-1972 | Chevrolet | Chevelle | Concours Estate |
| 1967,1973 | Chevrolet | Chevelle | Deluxe |
| 1969-1972 | Chevrolet | Chevelle | Greenbrier |
| 1968-1972 | Chevrolet | Chevelle | Malibu |
| 1968-1972 | Chevrolet | Chevelle | Nomad |
| 1965-1972 | Chevrolet | Chevelle | SS |
| 1968 | Chevrolet | Chevy II | Nova |
| 1965-1974 | Chevrolet | Corvette | Base |
| 1966-1975 | Chevrolet | El Camino | Base |
| 1968-1974 | Chevrolet | El Camino | Custom |
| 1968-1974 | Chevrolet | El Camino | SS |
| 1969-1970 | Chevrolet | Estate | Base |
| 1973-1974 | Chevrolet | G10 Van | Base |
| 1976 | Chevrolet | G20 | Beauville |
| 1976 | Chevrolet | G20 | Chevy Van |
| 1973-1974 | Chevrolet | G20 Van | Base |
| 1973-1974 | Chevrolet | G20 Van | Sportvan |
| 1975-1976,1988-1990 | Chevrolet | G30 | Beauville |
| 1975-1976,1988-1990 | Chevrolet | G30 | Chevy Van |
| 1975-1976,1988-1990 | Chevrolet | G30 | Hi-Cube |
| 1988-1990 | Chevrolet | G30 | Sportvan |
| 1973-1974 | Chevrolet | G30 Van | Base |
| 1965-1976 | Chevrolet | Impala | Base |
| 1975-1976 | Chevrolet | Impala | Custom |
| 1976 | Chevrolet | Impala | Custom Landau |
| 1976 | Chevrolet | Impala | S |
| 1975-1976 | Chevrolet | Impala | Sport |
| 1965-1967 | Chevrolet | Impala | SS |
| 1976,1979-1980 | Chevrolet | K10 | Cheyenne |
| 1976,1979-1980 | Chevrolet | K10 | Custom Deluxe |
| 1976,1979-1980 | Chevrolet | K10 | Scottsdale |
| 1976,1979-1980 | Chevrolet | K10 | Silverado |
| 1968-1974 | Chevrolet | K10 Pickup | Base |
| 1968-1974 | Chevrolet | K10 Suburban | Base |
| 1976,1979-1980 | Chevrolet | K10 Suburban | Custom Deluxe |
| 1976,1979-1980 | Chevrolet | K10 Suburban | Scottsdale |
| 1976,1979-1980 | Chevrolet | K10 Suburban | Silverado |
| 1976-1978,1980 | Chevrolet | K20 | Cheyenne |
| 1976-1978,1980 | Chevrolet | K20 | Custom Deluxe |
| 1976-1978,1980 | Chevrolet | K20 | Scottsdale |
| 1976-1978,1980 | Chevrolet | K20 | Silverado |
| 1968-1974 | Chevrolet | K20 Pickup | Base |
| 1968-1974 | Chevrolet | K20 Suburban | Base |
| 1985 | Chevrolet | K20 Suburban | Custom |
| 1976-1978,1980 | Chevrolet | K20 Suburban | Custom Deluxe |
| 1976-1978,1980,1985 | Chevrolet | K20 Suburban | Scottsdale |
| 1976-1977,1980,1985 | Chevrolet | K20 Suburban | Silverado |
| 1977,1980-1981 | Chevrolet | K30 | Cheyenne |
| 1981-1986 | Chevrolet | K30 | Custom |
| 1977,1980 | Chevrolet | K30 | Custom Deluxe |
| 1981 | Chevrolet | K30 | Deluxe |
| 1977,1980-1986 | Chevrolet | K30 | Scottsdale |
| 1977,1980-1986 | Chevrolet | K30 | Silverado |
| 1968-1974 | Chevrolet | K30 Pickup | Base |
| 1988-1990 | Chevrolet | K3500 | Cheyenne |
| 1988-1990 | Chevrolet | K3500 | Scottsdale |
| 1988-1990 | Chevrolet | K3500 | Silverado |
| 1976 | Chevrolet | K5 Blazer | Base |
| 1976-1978 | Chevrolet | K5 Blazer | Cheyenne |
| 1977-1978 | Chevrolet | K5 Blazer | Custom Deluxe |
| 1978 | Chevrolet | K5 Blazer | Silverado |
| 1969-1972 | Chevrolet | Kingswood | Base |
| 1969-1972 | Chevrolet | Kingswood | Estate |
| 1973-1975 | Chevrolet | Laguna | Base |
| 1973 | Chevrolet | Laguna | Estate |
| 1975 | Chevrolet | Laguna | S3 |
| 1974 | Chevrolet | Laguna | Type S-3 |
| 1965-1967,1973-1974 | Chevrolet | Malibu | Base |
| 1974-1975 | Chevrolet | Malibu | Classic |
| 1973-1974 | Chevrolet | Malibu | Estate |
| 1970-1974 | Chevrolet | Monte Carlo | Base |
| 1973-1974 | Chevrolet | Monte Carlo | Landau |
| 1973,1975 | Chevrolet | Monte Carlo | S |
| 1969-1972 | Chevrolet | Nova | Base |
| 1973 | Chevrolet | P10 Van | Base |
| 1976,1979 | Chevrolet | P20 | Base |
| 1976,1979 | Chevrolet | P20 | Step-Van |
| 1970-1971,1973 | Chevrolet | P20 Van | Base |
| 1975-1989 | Chevrolet | P30 | Base |
| 1975-1985,1987-1989 | Chevrolet | P30 | Step-Van |
| 1970-1974 | Chevrolet | P30 Van | Base |
| 1988 | Chevrolet | R20 | Cheyenne |
| 1987-1988 | Chevrolet | R20 | Custom Deluxe |
| 1987-1988 | Chevrolet | R20 | Scottsdale |
| 1987-1988 | Chevrolet | R20 | Silverado |
| 1987 | Chevrolet | R20 Suburban | Custom Deluxe |
| 1987-1988 | Chevrolet | R20 Suburban | Scottsdale |
| 1987-1988 | Chevrolet | R20 Suburban | Silverado |
| 1989 | Chevrolet | R2500 | Cheyenne |
| 1989 | Chevrolet | R2500 | Scottsdale |
| 1989 | Chevrolet | R2500 | Silverado |
| 1989-1990 | Chevrolet | R2500 Suburban | Scottsdale |
| 1989-1990 | Chevrolet | R2500 Suburban | Silverado |
| 1988 | Chevrolet | R30 | Cheyenne |
| 1987-1988 | Chevrolet | R30 | Custom Deluxe |
| 1987-1988 | Chevrolet | R30 | Scottsdale |
| 1987-1988 | Chevrolet | R30 | Silverado |
| 1989-1990 | Chevrolet | R3500 | Cheyenne |
| 1989-1990 | Chevrolet | R3500 | Scottsdale |
| 1989-1990 | Chevrolet | R3500 | Silverado |
| 1969-1972 | Chevrolet | Townsman | Base |
| 1987 | Chevrolet | V20 Suburban | Custom Deluxe |
| 1987-1988 | Chevrolet | V20 Suburban | Scottsdale |
| 1987-1988 | Chevrolet | V20 Suburban | Silverado |
| 1990 | Chevrolet | V2500 Suburban | Scottsdale |
| 1990 | Chevrolet | V2500 Suburban | Silverado |
| 1988 | Chevrolet | V30 | Cheyenne |
| 1987-1988 | Chevrolet | V30 | Custom Deluxe |
| 1987-1988 | Chevrolet | V30 | Scottsdale |
| 1987-1988 | Chevrolet | V30 | Silverado |
| 1989-1990 | Chevrolet | V3500 | Cheyenne |
| 1989-1990 | Chevrolet | V3500 | Scottsdale |
| 1989-1990 | Chevrolet | V3500 | Silverado |
| 1975-1978 | GMC | C15 | Base |
| 1977-1978 | GMC | C15 | Heavy Half |
| 1975-1978 | GMC | C15 | High Sierra |
| 1977 | GMC | C15 | Indy Hauler |
| 1975-1978 | GMC | C15 | Sierra Classic |
| 1975-1978 | GMC | C15 | Sierra Grande |
| 1978 | GMC | C15 | Street Coupe |
| 1975-1978 | GMC | C15 Suburban | Base |
| 1975-1978 | GMC | C15 Suburban | High Sierra |
| 1975-1978 | GMC | C15 Suburban | Sierra Classic |
| 1975-1978 | GMC | C15 Suburban | Sierra Grande |
| 1968-1974 | GMC | C15/C1500 Pickup | Base |
| 1968-1974 | GMC | C15/C1500 Suburban | Base |
| 1979-1980 | GMC | C1500 | Base |
| 1979-1980 | GMC | C1500 | Heavy Half |
| 1979-1980 | GMC | C1500 | High Sierra |
| 1979-1980 | GMC | C1500 | Sierra Classic |
| 1979-1980 | GMC | C1500 | Sierra Grande |
| 1979-1980 | GMC | C1500 | Street Coupe |
| 1979-1980 | GMC | C1500 Suburban | Base |
| 1979-1980 | GMC | C1500 Suburban | High Sierra |
| 1979-1980 | GMC | C1500 Suburban | Sierra Classic |
| 1979-1980 | GMC | C1500 Suburban | Sierra Grande |
| 1975-1978 | GMC | C25 | Base |
| 1975-1978 | GMC | C25 | High Sierra |
| 1975-1978 | GMC | C25 | Sierra Classic |
| 1975-1978 | GMC | C25 | Sierra Grande |
| 1975-1978 | GMC | C25 Suburban | Base |
| 1975-1978 | GMC | C25 Suburban | High Sierra |
| 1975-1978 | GMC | C25 Suburban | Sierra Classic |
