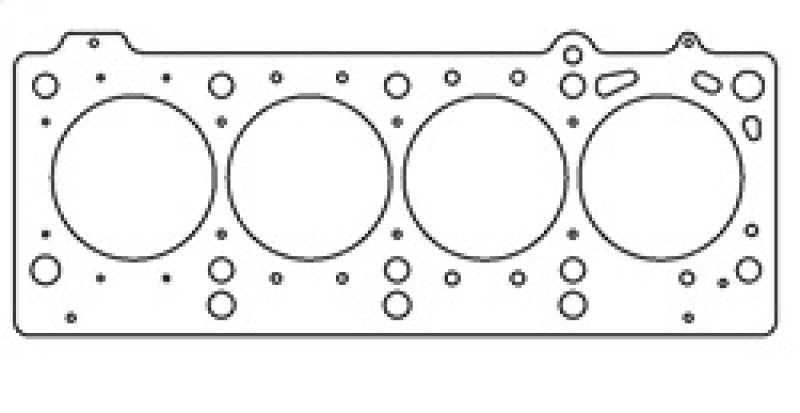

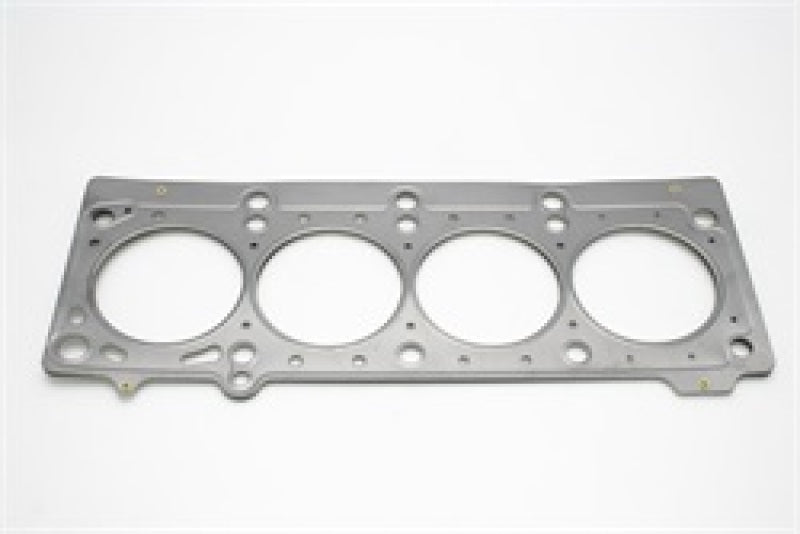

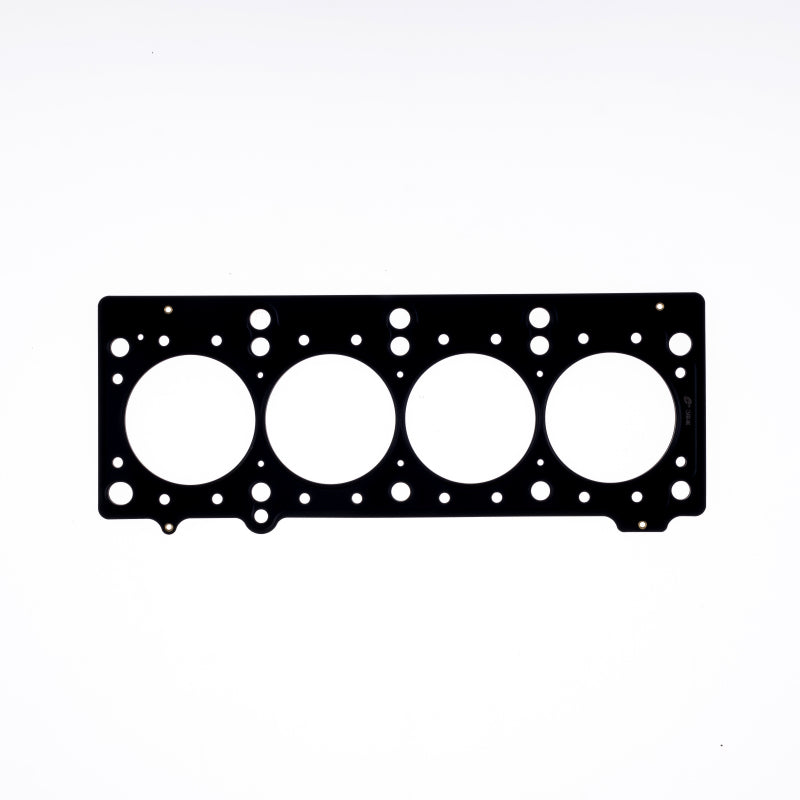

Cometic Dodge 2/2.4L DOHC 420A Motor 88.5mm bore .040 thick MLS headgasket

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.040". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Warranty
Certificate of Origin
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1995-1999	Chrysler	Sebring	LX
1995-1999	Dodge	Avenger	Base
1996-1999	Dodge	Avenger	ES
1998-1999	Dodge	Neon	ACR
1995-1997	Dodge	Neon	Base
1995-1999	Dodge	Neon	High Line
1998-1999	Dodge	Neon	R/T
1995-1999	Dodge	Neon	Sport
1996-1998	Eagle	Talon	Base
1995-1998	Eagle	Talon	ESi
1995-1998	Eagle	Talon	TSi
1996-1997	Mitsubishi	Eclipse	Base
1995-1999	Mitsubishi	Eclipse	GS
1995-1999	Mitsubishi	Eclipse	GST
1995-1999	Mitsubishi	Eclipse	GSX
1995-1999	Mitsubishi	Eclipse	RS
1996-1999	Mitsubishi	Eclipse	Spyder GST
1998-1999	Plymouth	Neon	ACR
1995-1997	Plymouth	Neon	Base
1998-1999	Plymouth	Neon	Expresso
1995-1999	Plymouth	Neon	High Line
1995-1996	Plymouth	Neon	Sport
1998-1999	Plymouth	Neon	Style
