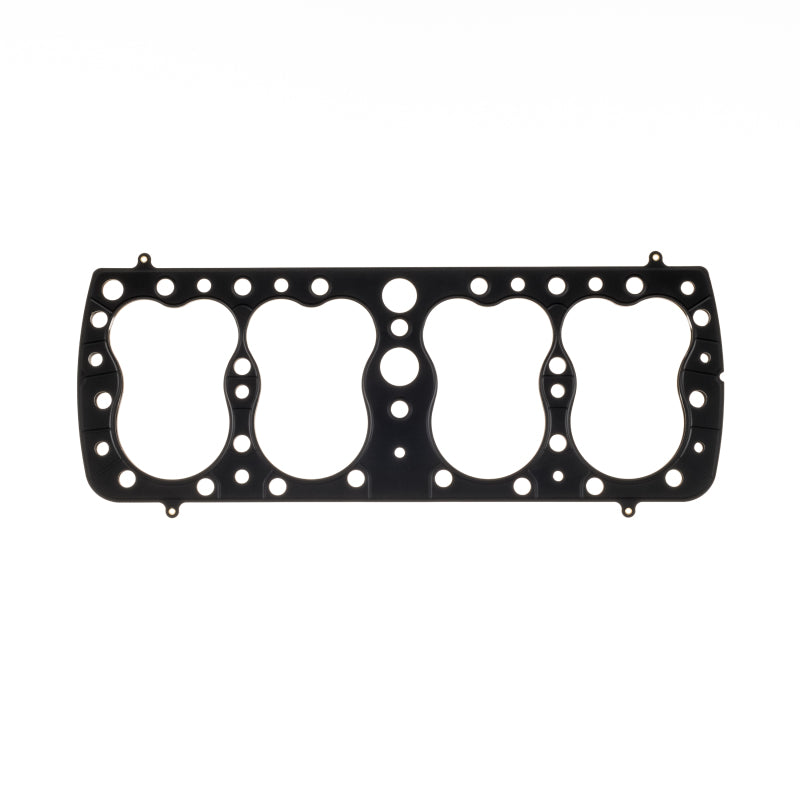

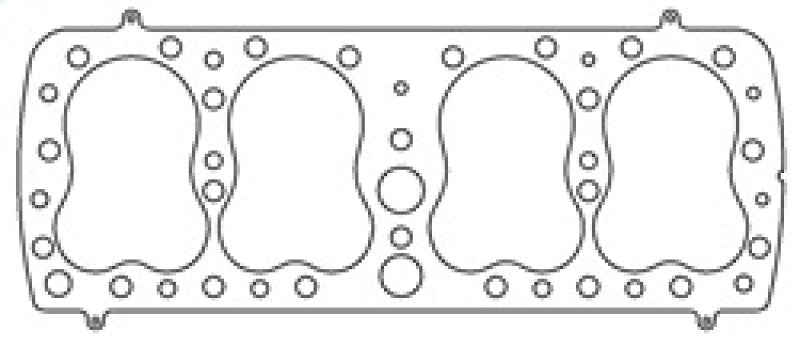

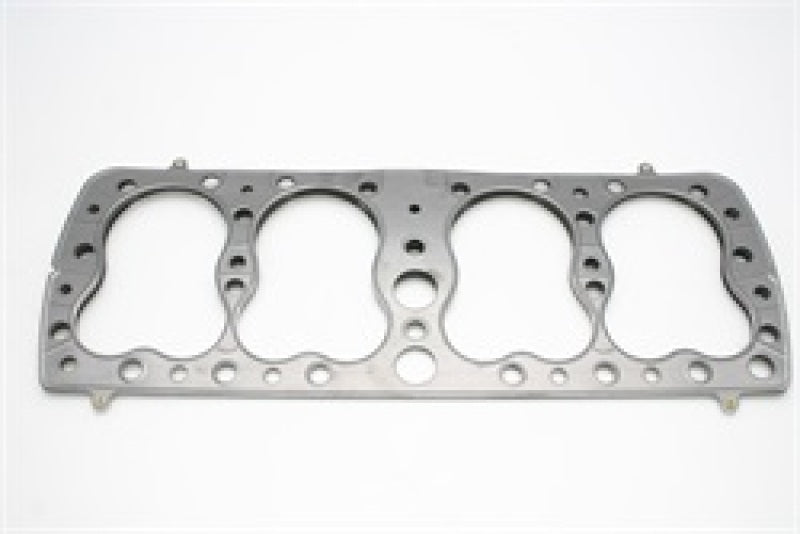

Cometic Ford 239 Flathead V8 .030in MLS Cylinder Head Gasket - 3.250in Bore - 24 Stud

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.030". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Warranty
Certificate of Origin
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1946-1949	Allard	J1	Base
1950-1951	Allard	J2	Base
1952-1954	Allard	J2X	Base
1946-1949	Allard	K1	Base
1950-1951	Allard	K2	Base
1952-1954	Allard	K3	Base
1946-1949	Allard	L	Base
1946-1949	Allard	M	Base
1952-1954	Allard	Monte Carlo	Base
1952-1954	Allard	Safari	Base
1938-1940,1942-1947	Ford	1 Ton Pickup	Base
1938-1940,1942-1947	Ford	1/2 Ton Pickup	Base
1938-1940,1942-1947	Ford	3/4 Ton Pickup	Base
1940,1946-1948	Ford	Deluxe	Base
1948	Ford	F-1	Base
1948	Ford	F-2	Base
1948	Ford	F-3	Base
1948	Ford	F4	Base
1942	Ford	Model 21 A Deluxe	Base
1938	Ford	Model 82 A	Base
1938-1940,1942,1946-1947	Ford	Sedan Delivery	Base
1939-1940	Ford	Standard	Base
1942,1946-1948	Ford	Super Deluxe	Base
1946-1948	Mercury	Mercury	Base
1941	Mercury	Series 19A	Base
1942	Mercury	Series 29A	Base
1939	Mercury	Series 99A	Base
1940	Mercury	Series O9A	Base
