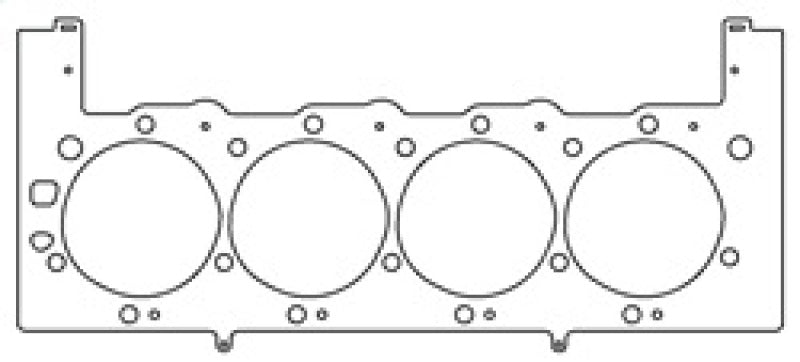

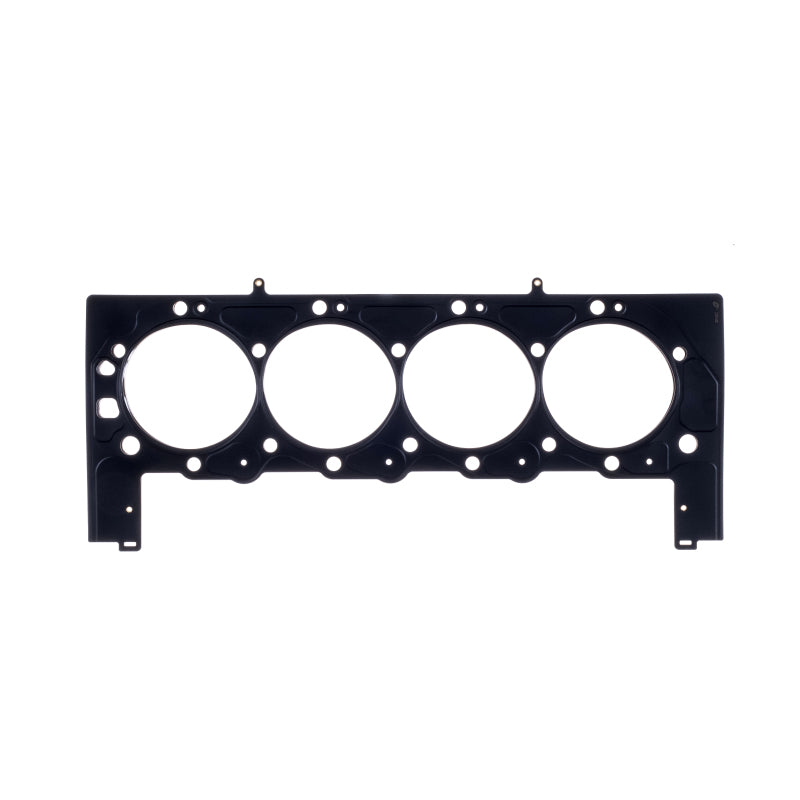

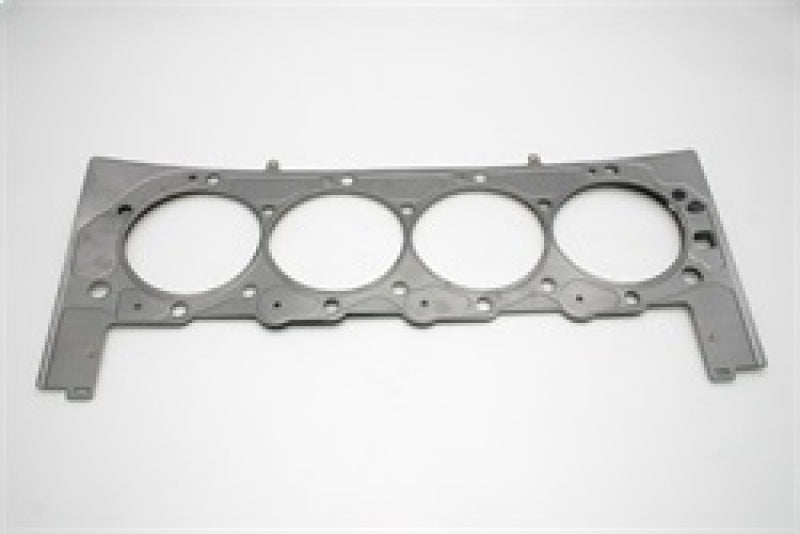

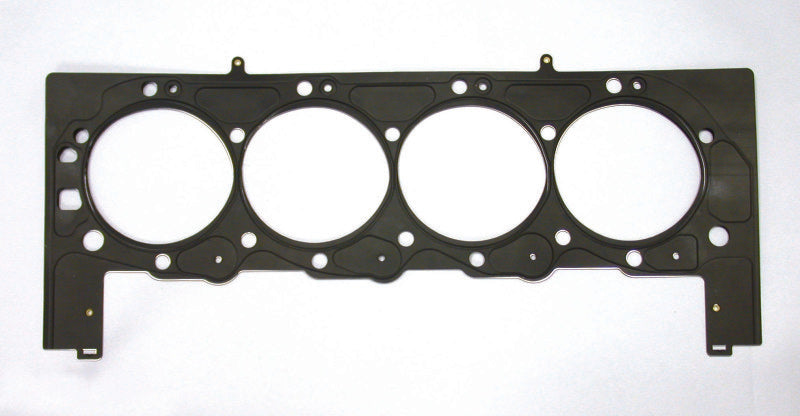

Cometic GM L18 Vortec 8100 Gen-VII Big Block V8 .040in MLS Cylinder Head Gasket - 4.280in Bore - RHS

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.040". Right Side. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Warranty
Certificate of Origin
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2002-2004	Chevrolet	Avalanche 2500	Base
2005-2006	Chevrolet	Avalanche 2500	LS
2005-2006	Chevrolet	Avalanche 2500	LT
2001-2002	Chevrolet	Express 3500	Base
2001-2002	Chevrolet	Express 3500	LS
2001-2004	Chevrolet	Silverado 2500	Base
2001-2004	Chevrolet	Silverado 2500	LS
2001-2004	Chevrolet	Silverado 2500	LT
2004	Chevrolet	Silverado 2500	WT
2001-2005	Chevrolet	Silverado 2500 HD	Base
2001-2006	Chevrolet	Silverado 2500 HD	LS
2001-2007	Chevrolet	Silverado 2500 HD	LT
2004-2007	Chevrolet	Silverado 2500 HD	WT
2007	Chevrolet	Silverado 2500 HD Classic	LS
2007	Chevrolet	Silverado 2500 HD Classic	LT
2007	Chevrolet	Silverado 2500 HD Classic	WT
2001-2006	Chevrolet	Silverado 3500	LS
2001-2006	Chevrolet	Silverado 3500	LT
2004,2006	Chevrolet	Silverado 3500	WT
2007	Chevrolet	Silverado 3500 Classic	LS
2007	Chevrolet	Silverado 3500 Classic	LT
2007	Chevrolet	Silverado 3500 Classic	WT
2007	Chevrolet	Silverado 3500 HD	LT
2007	Chevrolet	Silverado 3500 HD	WT
2001	Chevrolet	Suburban 2500	Base
2001-2006	Chevrolet	Suburban 2500	LS
2001-2006	Chevrolet	Suburban 2500	LT
2001-2002	GMC	Savana 3500	Base
2001-2002	GMC	Savana 3500	SLT
2002-2004	GMC	Sierra 2500	Base
2001-2002	GMC	Sierra 2500	SL
2001-2004	GMC	Sierra 2500	SLE
2001-2004	GMC	Sierra 2500	SLT
2003-2004	GMC	Sierra 2500	WT
2002-2005	GMC	Sierra 2500 HD	Base
2001-2002,2006	GMC	Sierra 2500 HD	SL
2001-2007	GMC	Sierra 2500 HD	SLE
2001-2007	GMC	Sierra 2500 HD	SLT
2003-2007	GMC	Sierra 2500 HD	WT
2007	GMC	Sierra 2500 HD Classic	SL
2007	GMC	Sierra 2500 HD Classic	SLE
2007	GMC	Sierra 2500 HD Classic	SLT
2007	GMC	Sierra 2500 HD Classic	WT
2002-2005	GMC	Sierra 3500	Base
2001-2002,2006	GMC	Sierra 3500	SL
2001-2006	GMC	Sierra 3500	SLE
2001-2006	GMC	Sierra 3500	SLT
2004-2006	GMC	Sierra 3500	WT
2007	GMC	Sierra 3500 Classic	SL
2007	GMC	Sierra 3500 Classic	SLE
2007	GMC	Sierra 3500 Classic	SLT
2007	GMC	Sierra 3500 Classic	WT
2007	GMC	Sierra 3500 HD	SLE
2007	GMC	Sierra 3500 HD	SLT
2007	GMC	Sierra 3500 HD	WT
2001-2006	GMC	Yukon XL 2500	SLE
2001-2006	GMC	Yukon XL 2500	SLT
