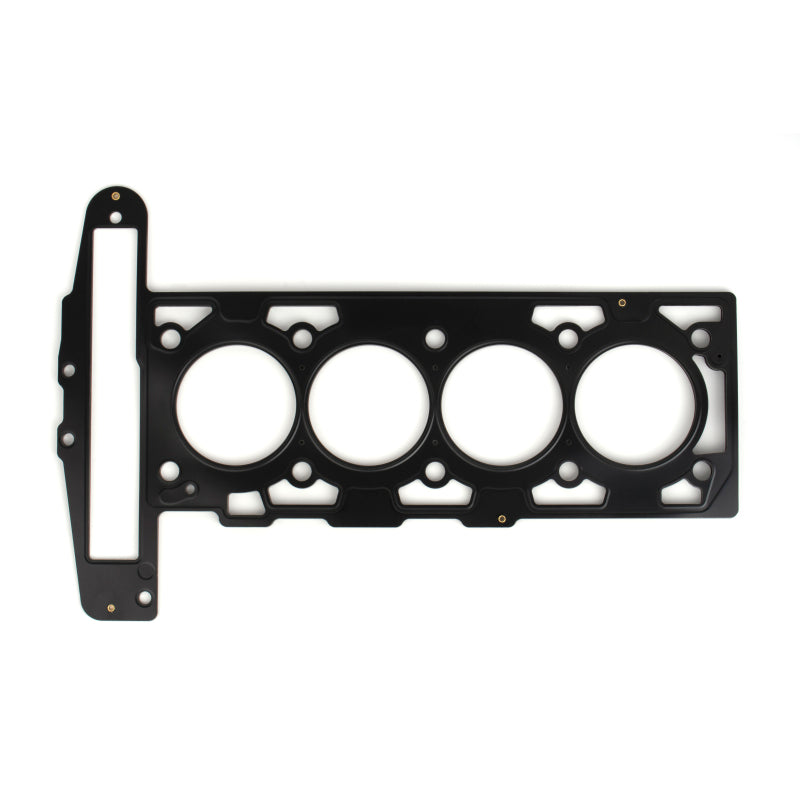

Cometic GM L42/L61 Gen-1/2 ECOTEC .098in MLS Cylinder Head Gasket - 87mm Bore

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.098". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Certificate of Origin
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2002-2005	Chevrolet	Cavalier	Base
2002-2005	Chevrolet	Cavalier	LS
2002-2005	Chevrolet	Cavalier	LS Sport
2004-2005	Chevrolet	Classic	Base
2004	Chevrolet	Classic	LS
2005	Chevrolet	Cobalt	Base
2005-2008	Chevrolet	Cobalt	LS
2005-2008	Chevrolet	Cobalt	LT
2006-2007	Chevrolet	Cobalt	LTZ
2006-2008	Chevrolet	HHR	LS
2007-2008	Chevrolet	HHR	LS Panel
2006-2008	Chevrolet	HHR	LT
2007-2008	Chevrolet	HHR	LT Panel
2004-2005	Chevrolet	Malibu	Base
2008	Chevrolet	Malibu	Classic LS
2006-2007	Chevrolet	Malibu	LS
2006-2007	Chevrolet	Malibu	LT
2002-2004	Oldsmobile	Alero	GL
2002-2003	Oldsmobile	Alero	GLS
2002-2004	Oldsmobile	Alero	GX
2007-2008	Pontiac	G5	Base
2002-2005	Pontiac	Grand Am	SE
2002-2003	Pontiac	Grand Am	SE1
2005	Pontiac	Sunfire	Base
2002-2003	Pontiac	Sunfire	GT
2002-2004	Pontiac	Sunfire	SE
2003-2005	Saturn	Ion	1
2003-2007	Saturn	Ion	2
2003-2007	Saturn	Ion	3
2001-2002	Saturn	L100	Base
2001-2003	Saturn	L200	Base
2004	Saturn	L300	1
2000	Saturn	LS	Base
2000	Saturn	LS1	Base
2000	Saturn	LS2	Base
2000	Saturn	LW1	Base
2001-2003	Saturn	LW200	Base
2004-2007	Saturn	Vue	Base
