Description

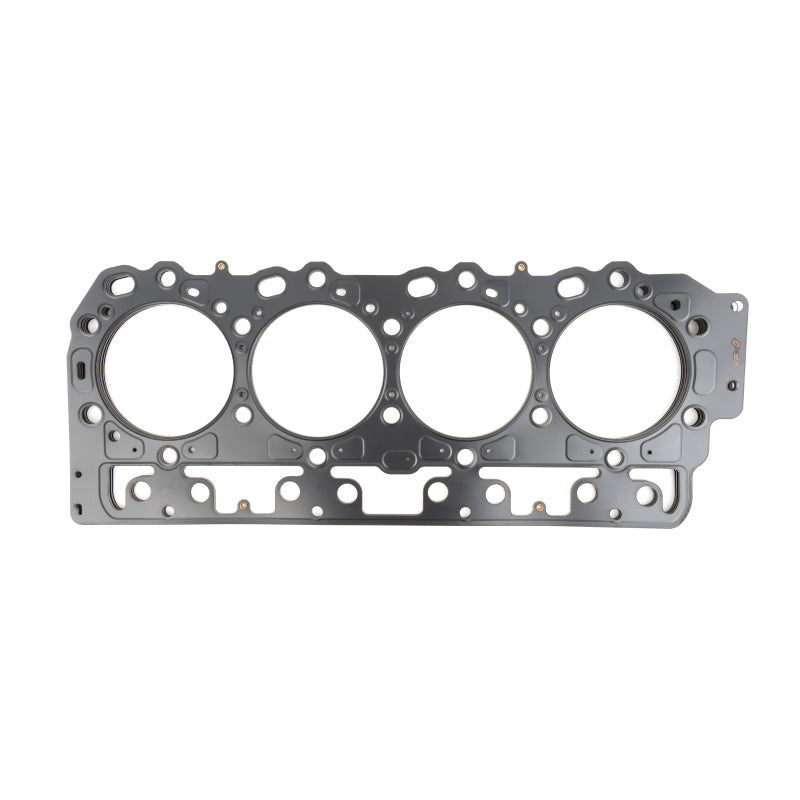

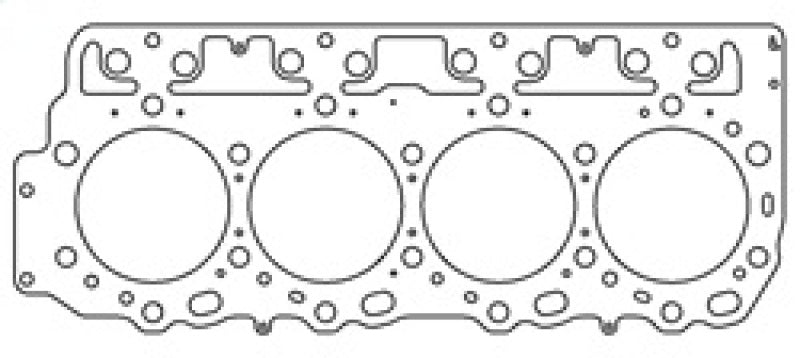

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.066". Left Side. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Warranty
Certificate of Origin
Installation Instructions
This Part Fits:
Warranty
Certificate of Origin
Installation Instructions
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003-2007 | Chevrolet | C4500 Kodiak | C4C042 |
| 2005-2007 | Chevrolet | C4500 Kodiak | C4C044 |
| 2003-2007 | Chevrolet | C4500 Kodiak | C4E042 |
| 2005-2007 | Chevrolet | C4500 Kodiak | C4E044 |
| 2003-2007 | Chevrolet | C4500 Kodiak | C4U042 |
| 2003-2007 | Chevrolet | C4500 Kodiak | C4V042 |
| 2003-2007 | Chevrolet | C5500 Kodiak | C5C042 |
| 2005-2007 | Chevrolet | C5500 Kodiak | C5C044 |
| 2003-2007 | Chevrolet | C5500 Kodiak | C5E042 |
| 2005-2007 | Chevrolet | C5500 Kodiak | C5E044 |
| 2003-2007 | Chevrolet | C5500 Kodiak | C5U042 |
| 2003-2007 | Chevrolet | C5500 Kodiak | C5V042 |
| 2006-2016 | Chevrolet | Express 2500 | Base |
| 2006 | Chevrolet | Express 2500 | LS |
| 2006 | Chevrolet | Express 2500 | LT |
| 2006-2016 | Chevrolet | Express 3500 | Base |
| 2011-2012,2015-2016 | Chevrolet | Express 3500 | LS |
| 2011-2012,2015-2016 | Chevrolet | Express 3500 | LT |
| 2001-2004 | Chevrolet | Silverado 2500 | Base |
| 2001-2004 | Chevrolet | Silverado 2500 | LS |
| 2001-2004 | Chevrolet | Silverado 2500 | LT |
| 2004 | Chevrolet | Silverado 2500 | WT |
| 2001-2005 | Chevrolet | Silverado 2500 HD | Base |
| 2015-2016 | Chevrolet | Silverado 2500 HD | High Country |
| 2001-2006 | Chevrolet | Silverado 2500 HD | LS |
| 2001-2016 | Chevrolet | Silverado 2500 HD | LT |
| 2007-2016 | Chevrolet | Silverado 2500 HD | LTZ |
| 2004-2016 | Chevrolet | Silverado 2500 HD | WT |
| 2007 | Chevrolet | Silverado 2500 HD Classic | LS |
| 2007 | Chevrolet | Silverado 2500 HD Classic | LT |
| 2007 | Chevrolet | Silverado 2500 HD Classic | WT |
| 2001-2005 | Chevrolet | Silverado 3500 | Base |
| 2001-2006 | Chevrolet | Silverado 3500 | LS |
| 2001-2006 | Chevrolet | Silverado 3500 | LT |
| 2004,2006 | Chevrolet | Silverado 3500 | WT |
| 2007 | Chevrolet | Silverado 3500 Classic | LS |
| 2007 | Chevrolet | Silverado 3500 Classic | LT |
| 2007 | Chevrolet | Silverado 3500 Classic | WT |
| 2015-2016 | Chevrolet | Silverado 3500 HD | High Country |
| 2007-2016 | Chevrolet | Silverado 3500 HD | LT |
| 2007-2016 | Chevrolet | Silverado 3500 HD | LTZ |
| 2007-2016 | Chevrolet | Silverado 3500 HD | WT |
| 2003-2007 | GMC | C4500 Topkick | C4C042 |
| 2005-2007 | GMC | C4500 Topkick | C4C044 |
| 2003-2007 | GMC | C4500 Topkick | C4E042 |
| 2005-2007 | GMC | C4500 Topkick | C4E044 |
| 2003-2007 | GMC | C4500 Topkick | C4U042 |
| 2003-2007 | GMC | C4500 Topkick | C4V042 |
| 2003-2007 | GMC | C5500 Topkick | C5C042 |
| 2005-2007 | GMC | C5500 Topkick | C5C044 |
| 2003-2007 | GMC | C5500 Topkick | C5E042 |
| 2005-2007 | GMC | C5500 Topkick | C5E044 |
| 2003-2007 | GMC | C5500 Topkick | C5U042 |
| 2003-2007 | GMC | C5500 Topkick | C5V042 |
| 2006-2016 | GMC | Savana 2500 | Base |
| 2006-2016 | GMC | Savana 3500 | Base |
| 2015-2016 | GMC | Savana 3500 | LS |
| 2015-2016 | GMC | Savana 3500 | LT |
| 2002-2004 | GMC | Sierra 2500 | Base |
| 2001-2002 | GMC | Sierra 2500 | SL |
| 2001-2004 | GMC | Sierra 2500 | SLE |
| 2001-2004 | GMC | Sierra 2500 | SLT |
| 2003-2004 | GMC | Sierra 2500 | WT |
| 2002-2005,2015-2016 | GMC | Sierra 2500 HD | Base |
| 2011-2016 | GMC | Sierra 2500 HD | Denali |
| 2001-2002,2006 | GMC | Sierra 2500 HD | SL |
| 2001-2016 | GMC | Sierra 2500 HD | SLE |
| 2001-2016 | GMC | Sierra 2500 HD | SLT |
| 2003-2014 | GMC | Sierra 2500 HD | WT |
| 2007 | GMC | Sierra 2500 HD Classic | SL |
| 2007 | GMC | Sierra 2500 HD Classic | SLE |
| 2007 | GMC | Sierra 2500 HD Classic | SLT |
| 2007 | GMC | Sierra 2500 HD Classic | WT |
| 2002-2005 | GMC | Sierra 3500 | Base |
| 2001-2002,2006 | GMC | Sierra 3500 | SL |
| 2001-2006 | GMC | Sierra 3500 | SLE |
| 2001-2006 | GMC | Sierra 3500 | SLT |
| 2004-2006 | GMC | Sierra 3500 | WT |
| 2007 | GMC | Sierra 3500 Classic | SL |
| 2007 | GMC | Sierra 3500 Classic | SLE |
| 2007 | GMC | Sierra 3500 Classic | SLT |
| 2007 | GMC | Sierra 3500 Classic | WT |
| 2015-2016 | GMC | Sierra 3500 HD | Base |
| 2011-2016 | GMC | Sierra 3500 HD | Denali |
| 2007-2016 | GMC | Sierra 3500 HD | SLE |
| 2007-2016 | GMC | Sierra 3500 HD | SLT |
| 2007-2014 | GMC | Sierra 3500 HD | WT |
| 2006 | Hummer | H1 | Alpha |
| 2005-2011 | Workhorse | LF72 | Base |
