Description

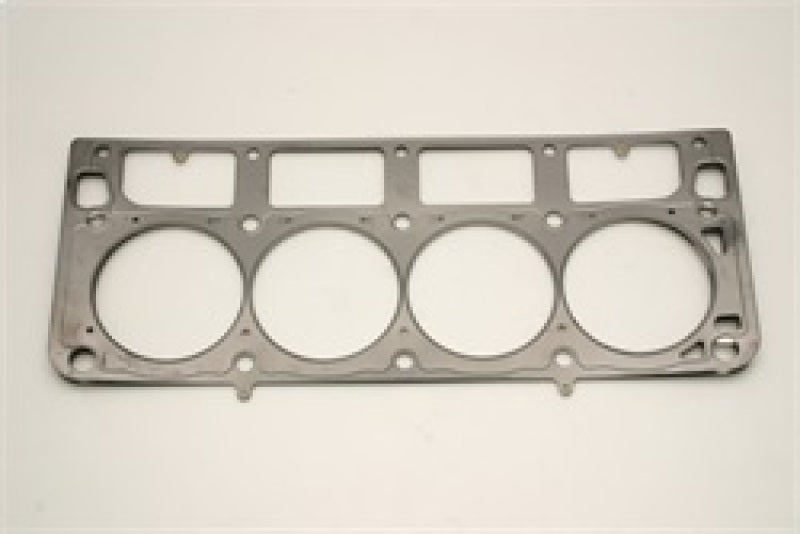

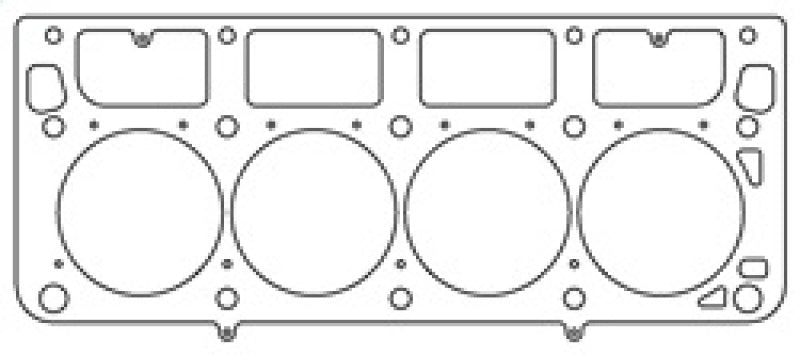

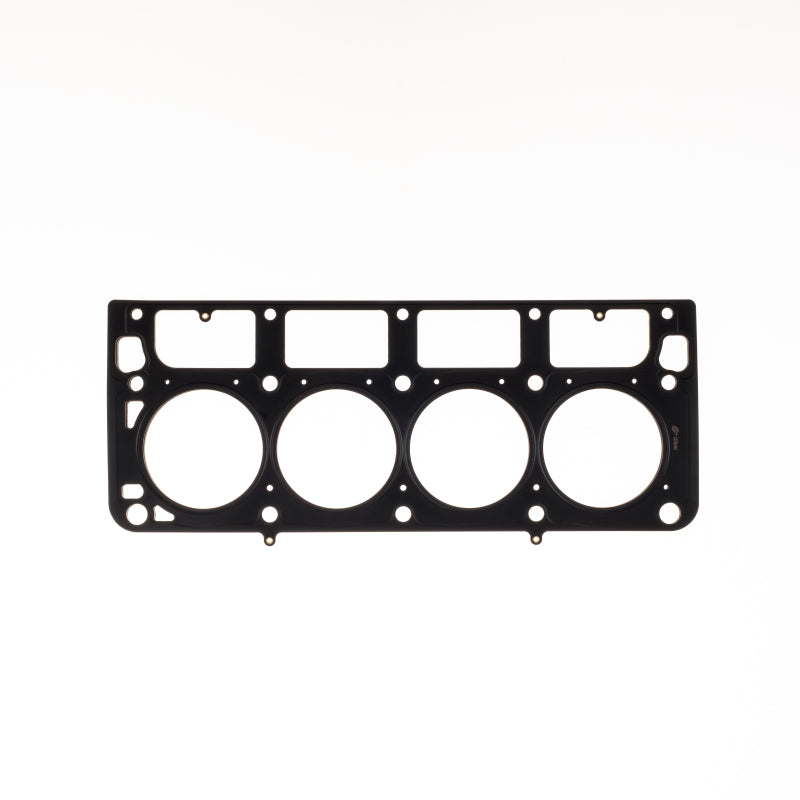

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.030". With MID Sleeves. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Warranty
Certificate of Origin
Installation Instructions
This Part Fits:
Warranty
Certificate of Origin
Installation Instructions
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2001-2004 | Avanti | II | Base |
| 2004-2007 | Cadillac | CTS | V |
| 2007-2008,2010-2014 | Cadillac | Escalade | Base |
| 2011-2014 | Cadillac | Escalade | Luxury |
| 2008,2010-2014 | Cadillac | Escalade | Platinum |
| 2011-2014 | Cadillac | Escalade | Premium |
| 2007-2008,2010-2014 | Cadillac | Escalade ESV | Base |
| 2011-2014 | Cadillac | Escalade ESV | Luxury |
| 2008,2010-2014 | Cadillac | Escalade ESV | Platinum |
| 2011-2014 | Cadillac | Escalade ESV | Premium |
| 2007-2008,2010-2013 | Cadillac | Escalade EXT | Base |
| 2011-2013 | Cadillac | Escalade EXT | Luxury |
| 2011-2013 | Cadillac | Escalade EXT | Premium |
| 2013 | Chevrolet | Avalanche | Black Diamond LS |
| 2013 | Chevrolet | Avalanche | Black Diamond LT |
| 2013 | Chevrolet | Avalanche | Black Diamond LTZ |
| 2007-2012 | Chevrolet | Avalanche | LS |
| 2007-2012 | Chevrolet | Avalanche | LT |
| 2007-2012 | Chevrolet | Avalanche | LTZ |
| 1997 | Chevrolet | C1500 | Base |
| 1997-1998 | Chevrolet | C1500 | Cheyenne |
| 1999 | Chevrolet | C1500 | LS |
| 1997-1998 | Chevrolet | C1500 | Silverado |
| 1997-1998 | Chevrolet | C1500 | WT |
| 1997-1999 | Chevrolet | C1500 Suburban | Base |
| 1997-1999 | Chevrolet | C1500 Suburban | LS |
| 1997 | Chevrolet | C1500 Suburban | LT |
| 1997,1999-2000 | Chevrolet | C2500 | Base |
| 1997-1998 | Chevrolet | C2500 | Cheyenne |
| 1999-2000 | Chevrolet | C2500 | LS |
| 1997-1998 | Chevrolet | C2500 | Silverado |
| 1998 | Chevrolet | C2500 | WT |
| 1997-1999 | Chevrolet | C2500 Suburban | Base |
| 1997-1999 | Chevrolet | C2500 Suburban | LS |
| 1997 | Chevrolet | C2500 Suburban | LT |
| 1997,1999-2000 | Chevrolet | C3500 | Base |
| 1997-1998 | Chevrolet | C3500 | Cheyenne |
| 1999-2000 | Chevrolet | C3500 | LS |
| 1997-1998 | Chevrolet | C3500 | Silverado |
| 2010-2015 | Chevrolet | Camaro | SS |
| 1997-2002 | Chevrolet | Camaro | Z28 |
| 1998-2002 | Chevrolet | Camaro | Z28 SS |
| 2011-2016 | Chevrolet | Caprice | PPV |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition Pace Car |
| 1997-2013 | Chevrolet | Corvette | Base |
| 2010-2013 | Chevrolet | Corvette | Grand Sport |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 2001-2004 | Chevrolet | Corvette | Z06 |
| 1997-2002 | Chevrolet | Express 1500 | Base |
| 1997-2002 | Chevrolet | Express 1500 | LS |
| 1997-2002 | Chevrolet | Express 2500 | Base |
| 1997-2002 | Chevrolet | Express 2500 | LS |
| 1997-2002 | Chevrolet | Express 3500 | Base |
| 1997-2002 | Chevrolet | Express 3500 | LS |
| 1997 | Chevrolet | K1500 | Base |
| 1997-1998 | Chevrolet | K1500 | Cheyenne |
| 1999 | Chevrolet | K1500 | LS |
| 1997-1998 | Chevrolet | K1500 | Silverado |
| 1997-1998 | Chevrolet | K1500 | WT |
| 1997-1999 | Chevrolet | K1500 Suburban | Base |
| 1997-1999 | Chevrolet | K1500 Suburban | LS |
| 1997 | Chevrolet | K1500 Suburban | LT |
| 1997,1999-2000 | Chevrolet | K2500 | Base |
| 1997-1998 | Chevrolet | K2500 | Cheyenne |
| 1999-2000 | Chevrolet | K2500 | LS |
| 1997-1998 | Chevrolet | K2500 | Silverado |
| 1998 | Chevrolet | K2500 | WT |
| 1997-1999 | Chevrolet | K2500 Suburban | Base |
| 1997-1999 | Chevrolet | K2500 Suburban | LS |
| 1997 | Chevrolet | K2500 Suburban | LT |
| 1997,1999-2000 | Chevrolet | K3500 | Base |
| 1997-1998 | Chevrolet | K3500 | Cheyenne |
| 1999-2000 | Chevrolet | K3500 | LS |
| 1997-1998 | Chevrolet | K3500 | Silverado |
| 1997-1999 | Chevrolet | P30 | Base |
| 2010-2013 | Chevrolet | Silverado 1500 | LS |
| 2007-2013 | Chevrolet | Silverado 1500 | LT |
| 2007-2013 | Chevrolet | Silverado 1500 | LTZ |
| 2007-2013 | Chevrolet | Silverado 1500 | WT |
| 2010-2013 | Chevrolet | Silverado 1500 | XFE |
| 2014-2017 | Chevrolet | SS | Base |
| 2005-2006 | Chevrolet | SSR | Base |
| 2007-2014 | Chevrolet | Suburban 1500 | LS |
| 2007-2014 | Chevrolet | Suburban 1500 | LT |
| 2007-2014 | Chevrolet | Suburban 1500 | LTZ |
| 1997-1999 | Chevrolet | Tahoe | Base |
| 2000 | Chevrolet | Tahoe | Limited |
| 1997-1999,2007-2014 | Chevrolet | Tahoe | LS |
| 1997-1999,2007-2014 | Chevrolet | Tahoe | LT |
| 2007-2014 | Chevrolet | Tahoe | LTZ |
| 2012-2014 | Chevrolet | Tahoe | PPV |
| 2012-2014 | Chevrolet | Tahoe | SSV |
| 2000 | Chevrolet | Tahoe | Z71 |
| 2006-2009 | Chevrolet | Trailblazer | SS |
| 2007-2008 | GMC | Sierra 1500 | Denali |
| 2010-2013 | GMC | Sierra 1500 | SL |
| 2007-2013 | GMC | Sierra 1500 | SLE |
| 2007-2013 | GMC | Sierra 1500 | SLT |
| 2007-2013 | GMC | Sierra 1500 | WT |
| 2010-2013 | GMC | Sierra 1500 | XFE |
| 2007-2008,2010-2014 | GMC | Yukon | Denali |
| 2007-2014 | GMC | Yukon | SLE |
| 2007-2014 | GMC | Yukon | SLT |
| 2007-2014 | GMC | Yukon XL 1500 | Denali |
| 2007-2014 | GMC | Yukon XL 1500 | SLE |
| 2007-2014 | GMC | Yukon XL 1500 | SLT |
| 2008 | Hummer | H2 | Base |
| 1997-2002 | Pontiac | Firebird | Formula |
| 1997-2002 | Pontiac | Firebird | Trans Am |
| 2008-2009 | Pontiac | G8 | GT |
| 2009 | Pontiac | G8 | GXP |
| 2004-2006 | Pontiac | GTO | Base |
