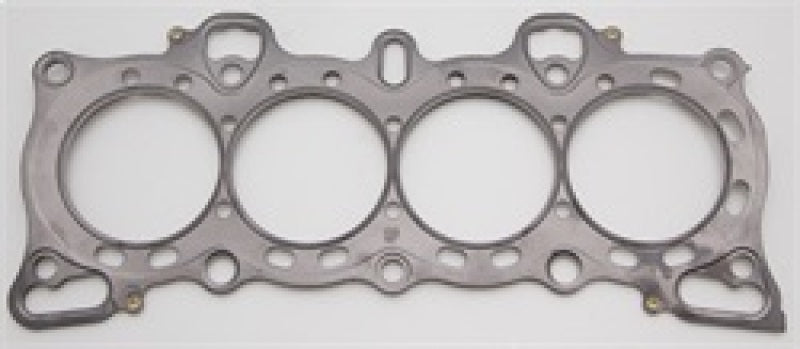

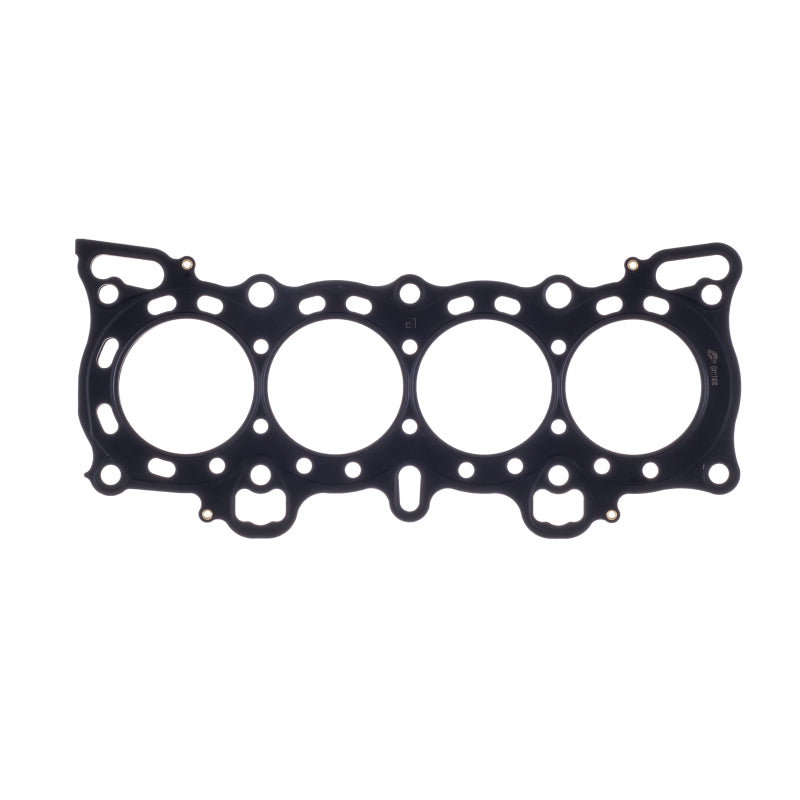

Cometic Honda D15B1-2-7/D16A6-7 75.5mm .056 inch MLS5 SOHC ZC Head Gasket

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.056". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Warranty
Certificate of Origin
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1988-1991	Honda	Civic	Base
1992-1995	Honda	Civic	CX
1988-1995	Honda	Civic	DX
1990-1991	Honda	Civic	EX
1988-1995	Honda	Civic	LX
1988-1991	Honda	Civic	RT 4WD
1989-1991	Honda	Civic	Si
1988-1989	Honda	Civic	Wagovan
1993-1995	Honda	Civic del Sol	S
1989-1991	Honda	CRX	Base
1988	Honda	CRX	DX
1988-1991	Honda	CRX	HF
1988-1991	Honda	CRX	Si
