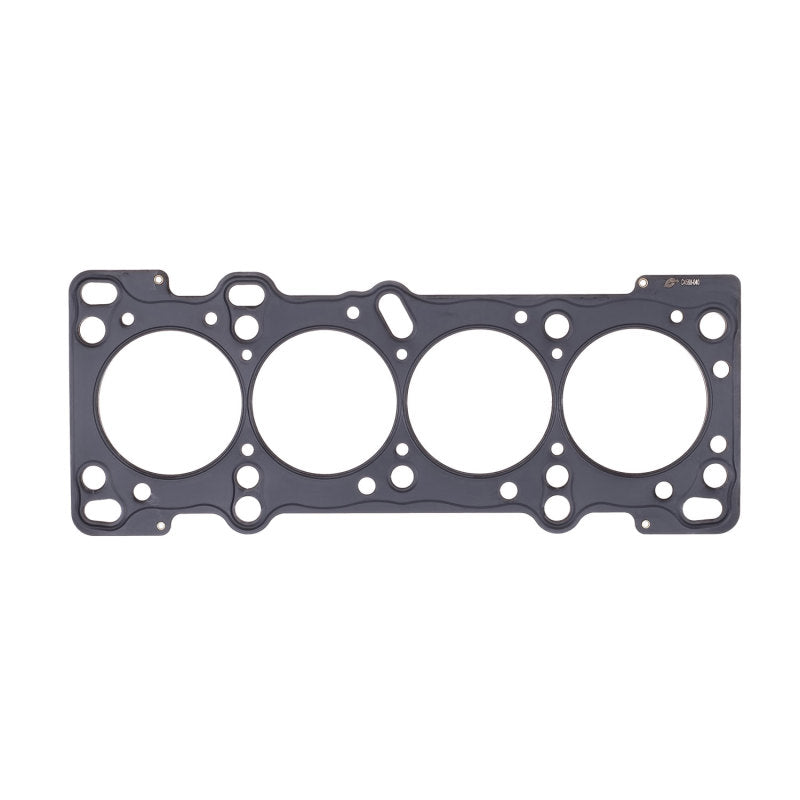

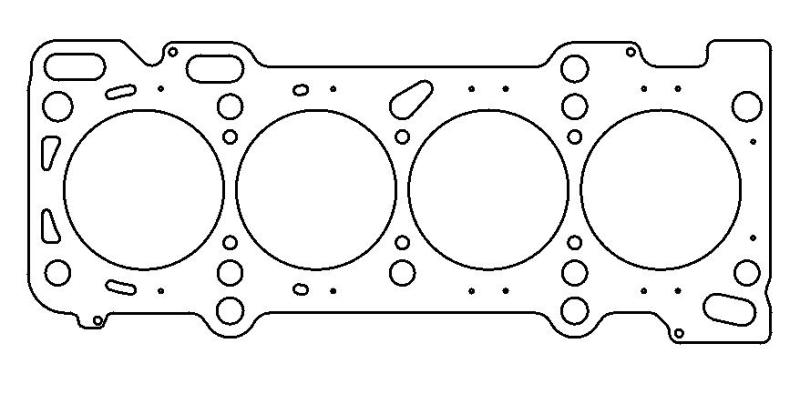

Cometic Mazda BP DOHC 1.8L 85mm Bore .060 inch MLS Head Gasket

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.060". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Warranty
Certificate of Origin
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1991-1996	Ford	Escort	GT
1992-1993	Ford	Escort	LX-E
1995-1997	Kia	Sephia	GS
1995-1997	Kia	Sephia	LS
1996-1997	Kia	Sephia	RS
1994	Mazda	323	Base
1999	Mazda	Miata	10th Anniversary
1994-1997,1999-2000	Mazda	Miata	Base
2000	Mazda	Miata	LS
1994-1997	Mazda	Miata	M Edition
2000	Mazda	Miata	SE
1997	Mazda	Miata	STO
1990-1991	Mazda	Protege	4WD
1994	Mazda	Protege	Base
1991-1994	Mazda	Protege	DX
1995-1998	Mazda	Protege	ES
1990-1994	Mazda	Protege	LX
1990	Mazda	Protege	SE
1991-1996	Mercury	Tracer	LTS
