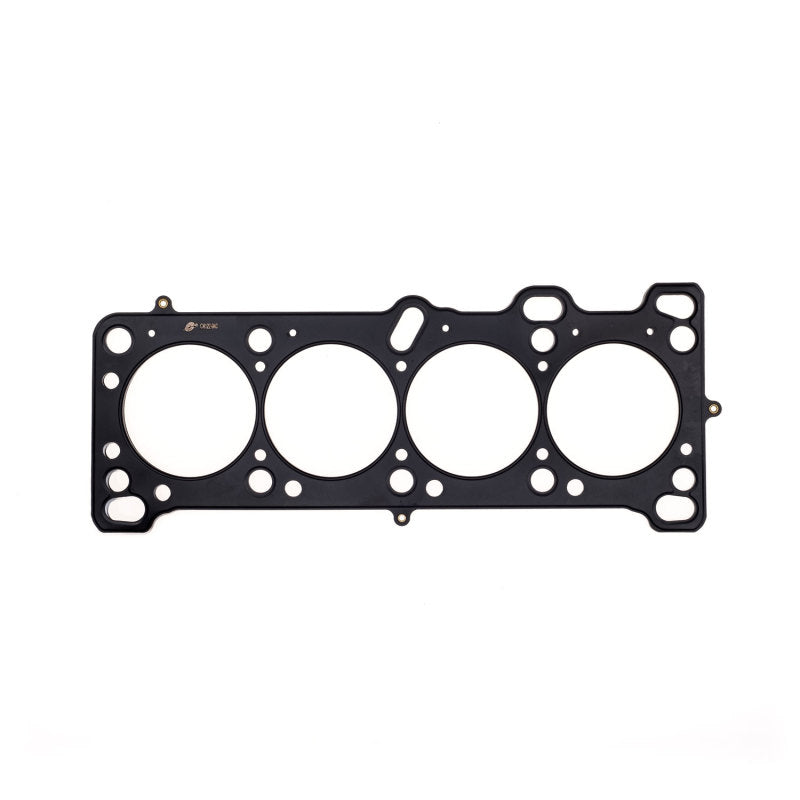

Cometic Mazda Miata 1.6L B6D 80mm Bore .140 inch MLS-5 Head Gasket

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
Certificate of Origin
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
1988-1993	Mazda	323	Base
1988	Mazda	323	DX
1988	Mazda	323	GT
1988-1989	Mazda	323	GTX
1988-1989	Mazda	323	LX
1988-1993	Mazda	323	SE
1990-1993	Mazda	Miata	Base
1993	Mazda	Miata	LE
1991	Mazda	Miata	SE
1992-1993	Mazda	MX-3	Base
1991-1994	Mercury	Capri	Base
1991-1994	Mercury	Capri	XR2
